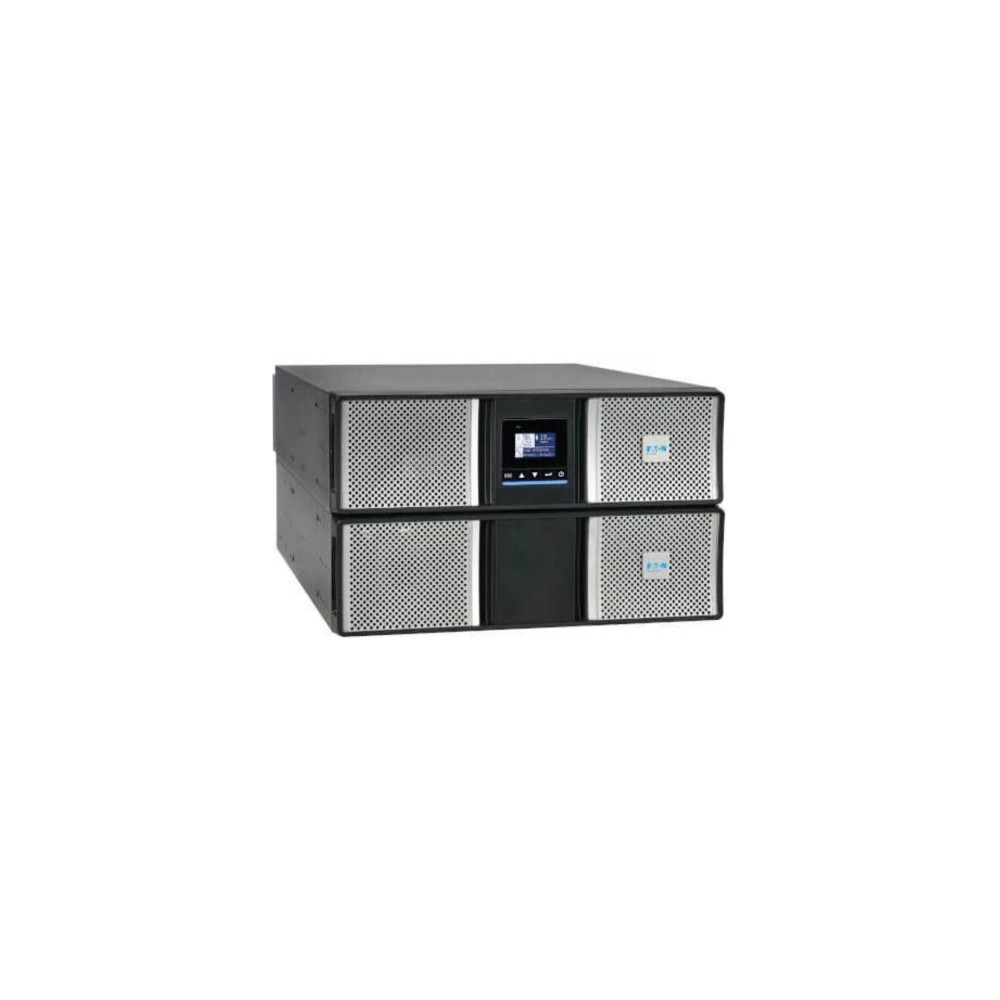

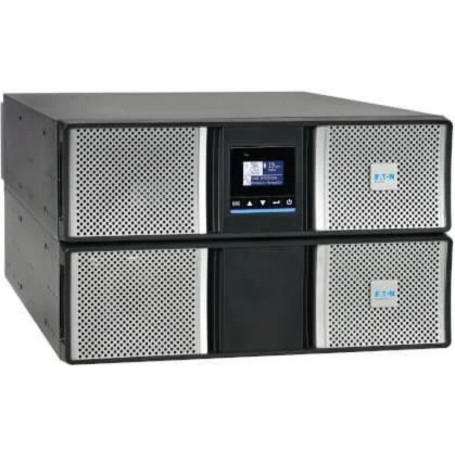

Eaton 9PX5KP1G2 Online Double-Conversion UPS

Overview :

The Eaton 9PX5KP1G2 (9PX Generation 2 Series) is a 5000VA/5000W online double-conversion uninterruptible power supply (UPS) configured with an integrated 9PXPPDM1G2 PowerPass Distribution Module. Data center operators, network administrators, and infrastructure engineers deploy this 6U infrastructure system to secure constant power normalization for blade servers, dense storage area networks, and VoIP switches.

Operating with a true online double-conversion topology, the device isolates downstream loads from public grid fluctuations by continuously turning incoming AC into DC, then regenerating it back into an isolated pure sine wave. Its unity (1.0) power factor matches wattage precisely with volt-amperes to maximize device capacity per rack footprint. The packaged PowerPass module supplies a built-in maintenance bypass circuit alongside an integrated transformer, enabling seamless hot-swappable power module replacement or service tracking without taking the active network offline.

Occupying 6U of space in standard 19-inch 4-post hardware racks, this versatile deployment also adapts to freestanding vertical tower footprints. The primary electrical input feeds through a attached 6.5-foot cord terminating in a high-voltage NEMA L6-30P plug to deliver split-phase 120V and 208V/240V distribution lines. Never connect laser printers or high-draw mechanical compressor equipment to this line, as induction spike parameters will overload internal silicon components.

Key Features :

• Unity power factor yields a full 5kW output to maximize server deployment density.

• Double-conversion design completely removes mains transfer cross lag down to 0 ms.

• Pre-installed Network-M3 Gigabit card provides safe, cybersecure remote access.

• PowerPass distribution module includes a manual bypass path for hot-swap servicing.

• Advanced ABM+ charge scheduling scales internal battery service life up to 50%.
