Detailed Specifications

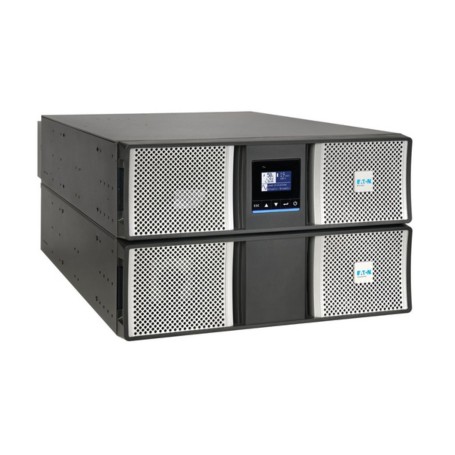

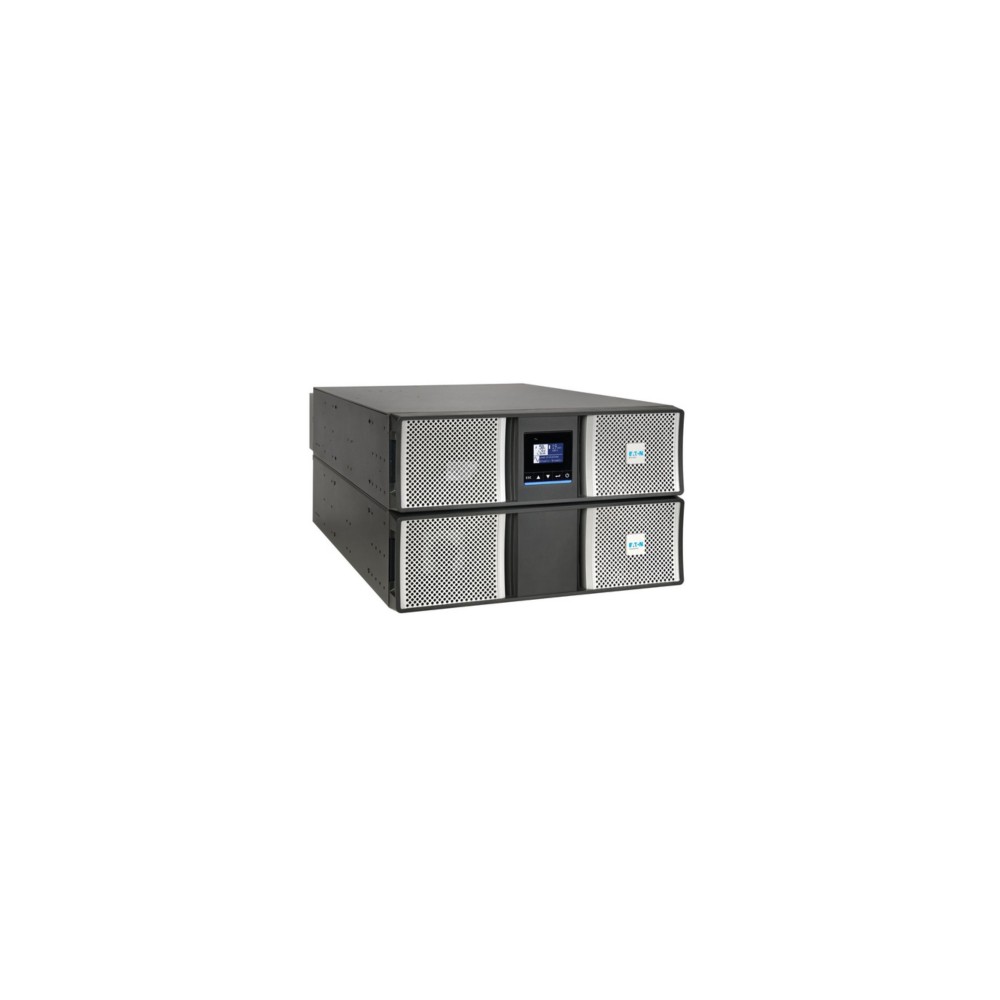

Eaton 9PX3K3UNP2G2 Online Double-Conversion UPS
Overview :
The Eaton 9PX3K3UNP2G2 (9PX Generation 2 Series) is a 3000VA/3000W online double-conversion uninterruptible power supply (UPS) bundled with a 9PXPPDM1G2 PowerPass Distribution Module. IT infrastructure managers, telecom engineers, and data center procurement teams deploy this system to achieve continuous power protection for critical blade servers, enterprise storage arrays, and voice-over-IP networks.
The system utilizes an online double-conversion architecture that eliminates power cross-over lag by continuously converting incoming AC to DC and back to an isolated pure sine wave. Operating at unity (1.0) power factor, it provides equal wattage output to matching volt-amperes, maximizing available rack power. The included PPDM module delivers a native maintenance bypass configuration, enabling administrators to hot-swap or service the main UPS chassis without cutting power to downstream computing hardware.
Occupying a combined 5U space in standard 19-inch 4-post racks, this unit can also deploy as a self-standing tower. The input configuration requires a fixed NEMA L6-30P connection to distribute a split-phase 120V and 208V AC network. Never plug high-wattage induction equipment or mechanical heavy motors into this IT-grade UPS line, as severe inductive current spikes will overload internal power components.
Key Features :
Unity power factor matches 3kW output to optimize dense server rack spaces.
Online double-conversion design maintains a zero-millisecond transfer time.
Pre-installed Network-M3 Gigabit card enables safe out-of-band administration.
PowerPass maintenance bypass module allows live hot-swappable servicing.
Advanced ABM+ technology prolongs the service lifespan of internal batteries.
Specifications :
| Property | Specification |
| Brand | Eaton |
| Part Number | 9PX3K3UNP2G2 |
| Product Type | Online Double-Conversion UPS |
| Power Rating | 3000 VA / 3000 W |
| Nominal Input Voltage | 208 V AC |
| Output Voltages Supported | 120 V / 208 V AC |
| Output AC Waveform | Pure Sine Wave |
| Transfer Time | 0 ms |
| AC Mode Efficiency | 93.3% at Max Load |
| Input Connection | NEMA L6-30P |
| Output Receptacles | (4) NEMA 5-20R, (1) L6-30R, (2) L6-20R |
| Form Factor | Rack / Tower (5U Total Height) |
| Battery Technology | Valve Regulated Lead-Acid (VRLA) |
| Runtime (Full Load) | 7.5 minutes (at 3000W) |
| Runtime (Half Load) | 18.5 minutes (at 1500W) |
| Expandable Runtime | Yes (Supports external battery modules) |
| Communication Ports | Ethernet (RJ45 Network-M3), USB, RS-232, EPO |
