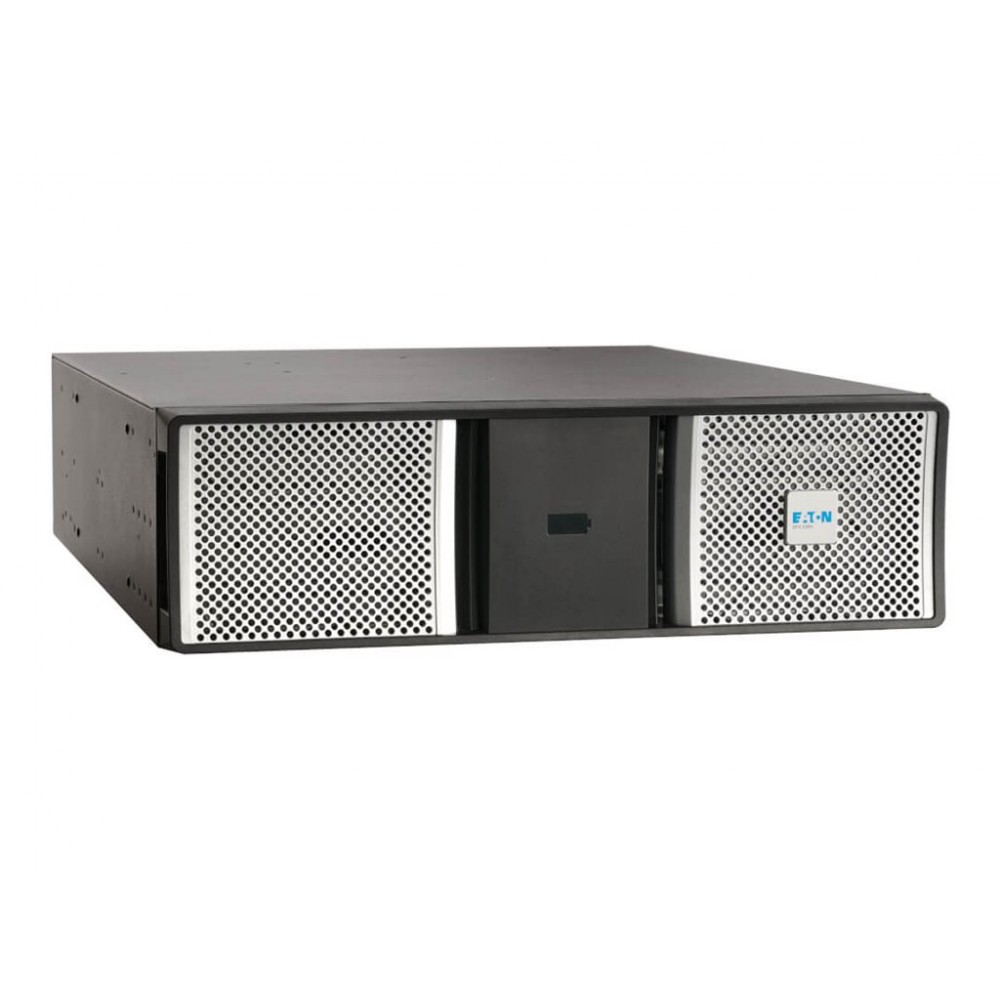

Eaton 9PX5KP2G2 Online Double-Conversion UPS

Overview :

The Eaton 9PX5KP2G2 (9PX Generation 2 Series) is a 5000VA/5000W online double-conversion uninterruptible power supply (UPS) system engineered for high-availability distributed IT layouts and enterprise edge networks. Systems engineers and facility procurement teams deploy this consolidated power platform to safeguard blade servers, storage networks, and high-density network switches from data-corrupting power anomalies.

The system utilizes true online double-conversion topology, delivering continuous utility power conditioning and a zero-millisecond transfer timeline to battery back-up. Operating at a unity (1.0) power factor, it converts every volt-ampere directly into an equivalent watt of functional power capacity, maximizing rack resource yields. The integrated 9PXPPDM2G2 PowerPass Distribution Module houses a native maintenance bypass assembly, allowing hot-swappable servicing or absolute power module swaps without bringing down secondary active network loads.

This system occupies a 6U form factor within an EIA-standard 19-inch 4-post rack or mounts in an upright vertical tower configuration using the bundled stable support brackets. Input and output lines operate strictly through terminal block hardwired paths, eliminating plug variance constraints. Never attempt to service the PowerPass module without fully engaging the manual bypass switch, as this will drop the connected system loads and potentially damage live computing elements.

Key Features :

• Unity power factor matches 5kW of runtime output to maximize server loads.

• Double-conversion design guarantees clean output wave with zero cross lag.

• Pre-installed Network-M3 Gigabit interface secures remote web administration lines.

• PowerPass PPDM unit features manual bypass paths for live swap servicing.

• Advanced ABM+ technology predicts exact battery pack end-of-life boundaries.

Specifications :
