Detailed Specifications

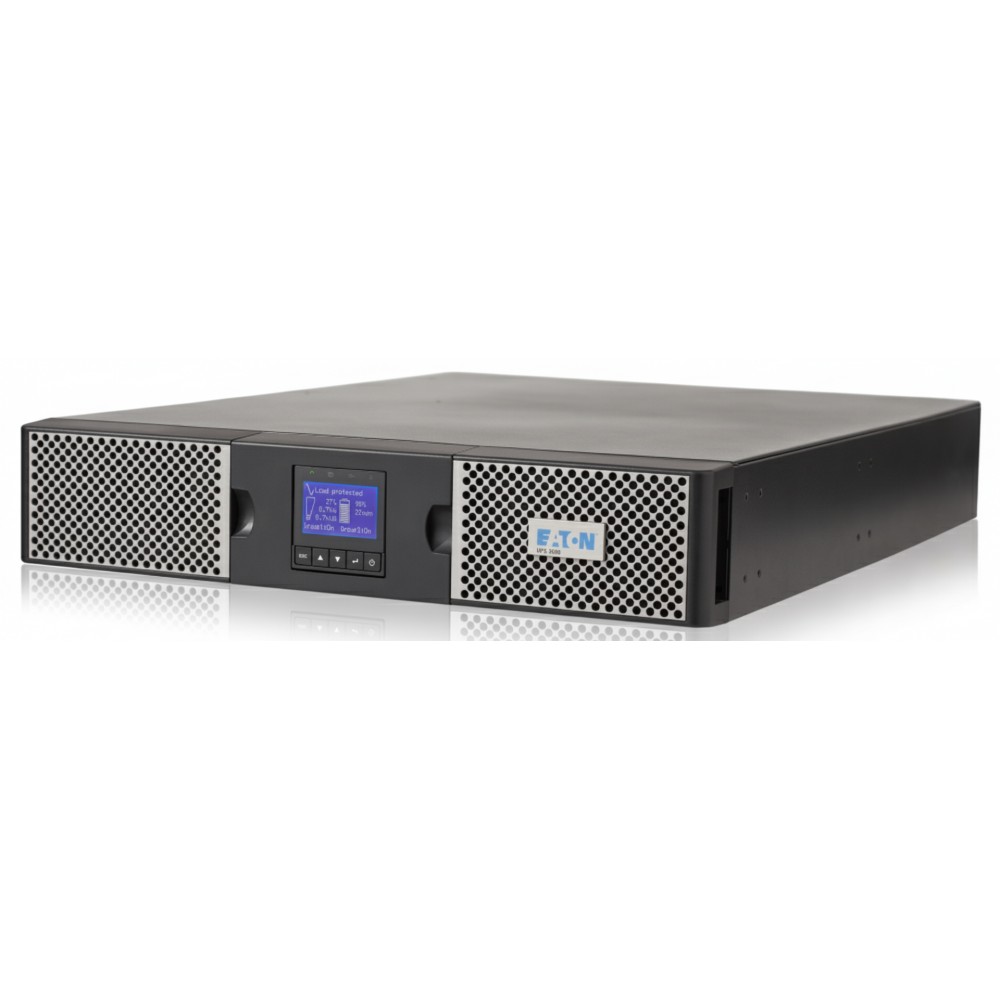

Eaton Tripp Lite 9PX1500GRT 1.5 kVA/1.35 kW 208 V Online Double-Conversion UPS
Overview :
The Eaton & Tripp Lite 9PX1500GRT is a 2-U rack/tower online double-conversion UPS designed for IT infrastructure requiring high-availability power backup and clean sine-wave output. It delivers 1500 VA (1.35 kW) of capacity at 200-208 V, making it suitable for edge, network closet, or data-centre applications. The unit features eight IEC-320 C13 outlets, a C14 input, and supports an optional network card for remote management. With hot-swappable battery modules and support for up to four external battery packs, it extends runtime for critical loads. The front-panel LCD display provides real-time monitoring of load, battery status, and system events. Compatible with Eaton and Tripp Lite power ecosystems, the 9PX1500GRT integrates easily into mixed-brand deployments and fits standard 19-inch racks or tower configurations.
Key Features :
• 1.5 kVA / 1.35 kW capacity at 200-208 V for critical IT loads
• Online double-conversion topology ensures isolation from irregular power
• Eight IEC-320 C13 outlets arranged in managed load banks
• Hot-swappable internal batteries and optional external battery packs
• Rack/tower 2-U design with LCD interface for live status monitoring
Technical Specifications :
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number | 9PX1500GRT |
| Product Type | Online Double-Conversion UPS |
| Capacity | 1500 VA / 1350 W |
| Input Voltage Range | 200 V - 240 V AC |
| Output Voltage | 200 / 208 / 220 / 230 / 240 V AC, single-phase |
| Efficiency | Up to 92% in online mode |
| Outlets | 8 × IEC-320 C13 |
| Form Factor | 2-U rack / tower convertible |
| Dimensions (inches) | 3.4 H × 17.3 W × 17.7 D |
| Weight (lbs) | 41.4 lbs |
| Communication Ports | USB, RS-232, optional network card |
| Battery Type | Hot-swappable internal VRLA modules |
| Runtime (Full Load) | Approximately 5 minutes at 1350 W |
| External Battery Support | Up to 4 external battery packs |
| Compatible Brands | Eaton / Tripp Lite power systems |
