Detailed Specifications

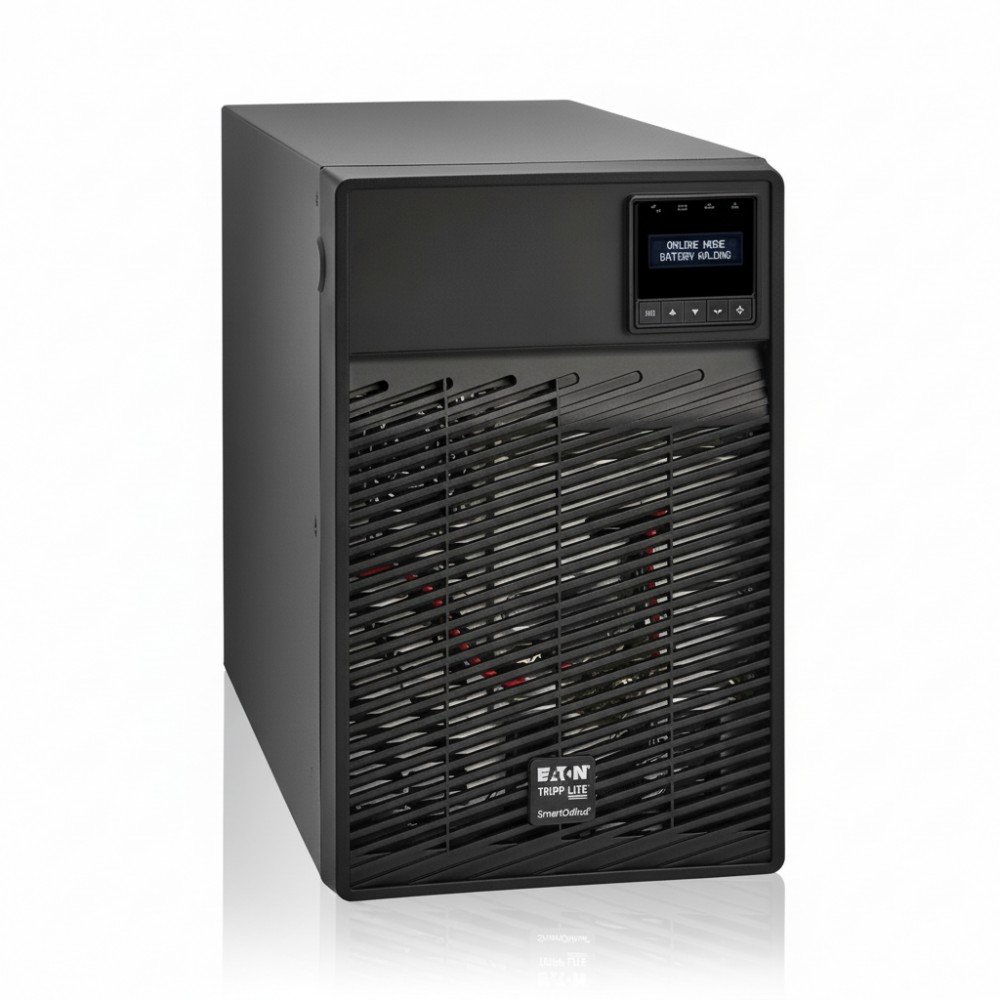

Eaton SU1000XLCD - 1 kVA Double-Conversion UPS
Overview
The Eaton SU1000XLCD is a 1 kVA / 900 W online (double-conversion) uninterruptible power supply (UPS) used by IT engineers, data center technicians, and facilities professionals to protect rack or tower-mounted systems from blackouts, brownouts, surge events, and line noise. Its true online topology delivers continuous power through a double-conversion inverter, eliminating transfer delays between mains and battery power × critical for sensitive servers and network appliances.
Rated for 120 V single-phase input and output, it supplies six NEMA 5-15R outlets suitable for small racks, edge network gear, or terminal servers where a moderate VA load must be protected and conditioned. Its 0 ms transfer time and pure sine-wave output maintain clean voltage and frequency for connected loads.
The SU1000XLCD's tower form factor integrates into IDF/office closet or small data center environments where rack placement is not strictly required, but shelf or stand-alone protection is needed. Its LCD display shows real-time status and key electrical parameters, enabling onsite load and battery visibility without external tools.
Integration options include USB and DB9 communications ports for interface with Eaton's PowerAlert software, and a slot for optional network management cards (e.g., WEBCARDLXE) for remote monitoring or centralized UPS management. Expandable runtime is supported via external battery modules (EBM) to extend hold-up during extended outages.
A practical deployment example is safeguarding servers and networking endpoints in a branch office IDF where power stability is inconsistent. This UPS should not be used as the primary UPS for high-density rack systems demanding >900 W continuous capacity, or in environments where 208/230 V or three-phase support is required × larger units or infrastructure PDUs should be selected for those voltages.
Key Features
- 1 kVA / 900 W double-conversion online UPS topology
- Six NEMA 5-15R outlets with pure sine-wave output
- 0 ms transfer time protects sensitive loads
- Integrated LCD status with configurable screens
- USB and DB9 ports; supports optional network card
Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | SU1000XLCD |
| Product Type | Double-Conversion Online UPS |
| Rated Power | 1 kVA / 900 W |
| UPS Topology | Online (double-conversion) |
| Output Voltage | 100/110/120/127 V AC |
| Output Frequency | 50/60 Hz auto-sensing |
| Outlets | 6 × NEMA 5-15R |
| Input Connection | NEMA 5-15P |
| Input Voltage Range | 100-127 V AC |
| Input Current | 9 A max. |
| Output Waveform | Pure sine wave |
| Power Factor | 0.9 |
| Battery Type | VRLA (hot-swappable) |
| Extended Runtime | Optional EBM support |
| LCD Display | Yes |
| Communications | USB, DB9, optional network card slot |
| Dimensions (HxWxD) | ~9.93″ × 6.3″ × 15.2″ |
| Weight | ~32.6 lb |
| Operating Temp | 32-104 °F (0-40 °C) |
| Certifications | UL 1778, RoHS, FCC compliant |
