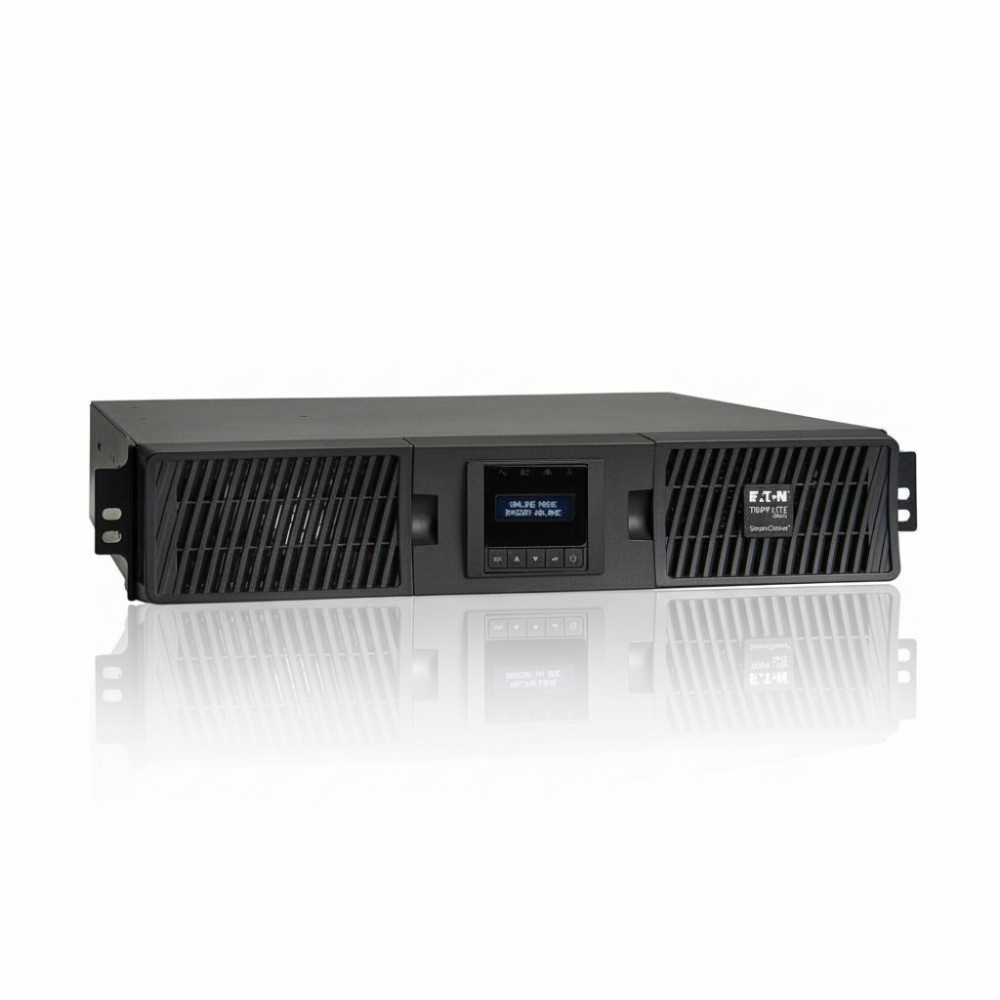

Eaton SU1500RTXLCD2UTAA - UPS 1500 VA 1350 W
Overview
The Eaton SU1500RTXLCD2UTAA is a 1500 VA / 1350 W online double-conversion uninterruptible power supply (UPS) engineered to deliver continuous conditioned AC power with zero transfer time for sensitive servers, networking gear, storage, and other critical infrastructure. It is typically deployed by IT engineers, facilities operators, and procurement teams requiring consistent power isolation from mains anomalies such as blackouts, brownouts, surges, and frequency fluctuations.
Operating in true online/double-conversion topology, this UPS provides a pure sine-wave output at nominal 120 V AC with a 0.9 power factor, ensuring stable voltage and frequency under varying load conditions. The unit includes eight NEMA 5-15R output receptacles and connects to utility power via a NEMA 5-15P input cord.
The chassis occupies 2U of rack space and ships with hardware for installation in standard 19-inch cabinets or as a freestanding unit in small data center IDFs or network closets. A multi-screen LCD display provides detailed UPS and power status information for on-site monitoring.
Communications include USB, RS-232 serial, RPO/ROO dry contacts, and a WEBCARDLXE expansion slot for optional network management, enabling remote monitoring and control. Hot-swappable VRLA batteries support orderly shutdowns and can be expanded with up to four external battery modules (EBMs) for extended runtime.
This model is TAA compliant, making it suitable for U.S. government and regulated procurement where such compliance is required. It is not intended for 208/230 V distribution systems; select an appropriate model for non-120 V environments.
Key Features
• 1500 VA / 1350 W online double-conversion UPS with zero transfer time
• Pure sine-wave output at 120 V AC with 0.9 power factor
• (8) NEMA 5-15R outlets with two load banks
• Multi-screen LCD for real-time UPS and power metrics
• USB, RS-232, RPO/ROO ports + WEBCARDLXE expansion slot
Technical Specifications
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | SU1500RTXLCD2UTAA |
| Product Type | Online Double-Conversion UPS |
| VA Rating | 1500 VA |
| Output Power | 1350 W |
| Topology | Online/double-conversion |
| Output Voltage | Nominal 120 V AC (100/110/115/127 selectable) |
| Output Power Factor | 0.9 |
| Input Connection | NEMA 5-15P with 8 ft cord |
| Output Receptacles | (8) NEMA 5-15R |
| Output Waveform | Pure sine wave |
| Transfer Time | 0 ms |
| Runtime (Full Load) | ~5.8 min @ 1350 W |
| Runtime (Half Load) | ~16.5 min @ ~675 W |
| Expandable Runtime | Up to 4 EBMs (BP48RT2UTAA) |
| Communications | USB, RS-232, RPO/ROO dry contacts, expansion slot |
| LCD Display | Multi-screen LCD |
| Surge Protection | Yes, EMI/RFI filtering |
| Dimensions (HxWxD) | ~3.41 × 17.33 × 17.72 in |
| Weight | ~42.55 lb |
| Operating Temp | 0 °C to 40 °C |
| Relative Humidity | 0-96 % non-condensing |
