Detailed Specifications

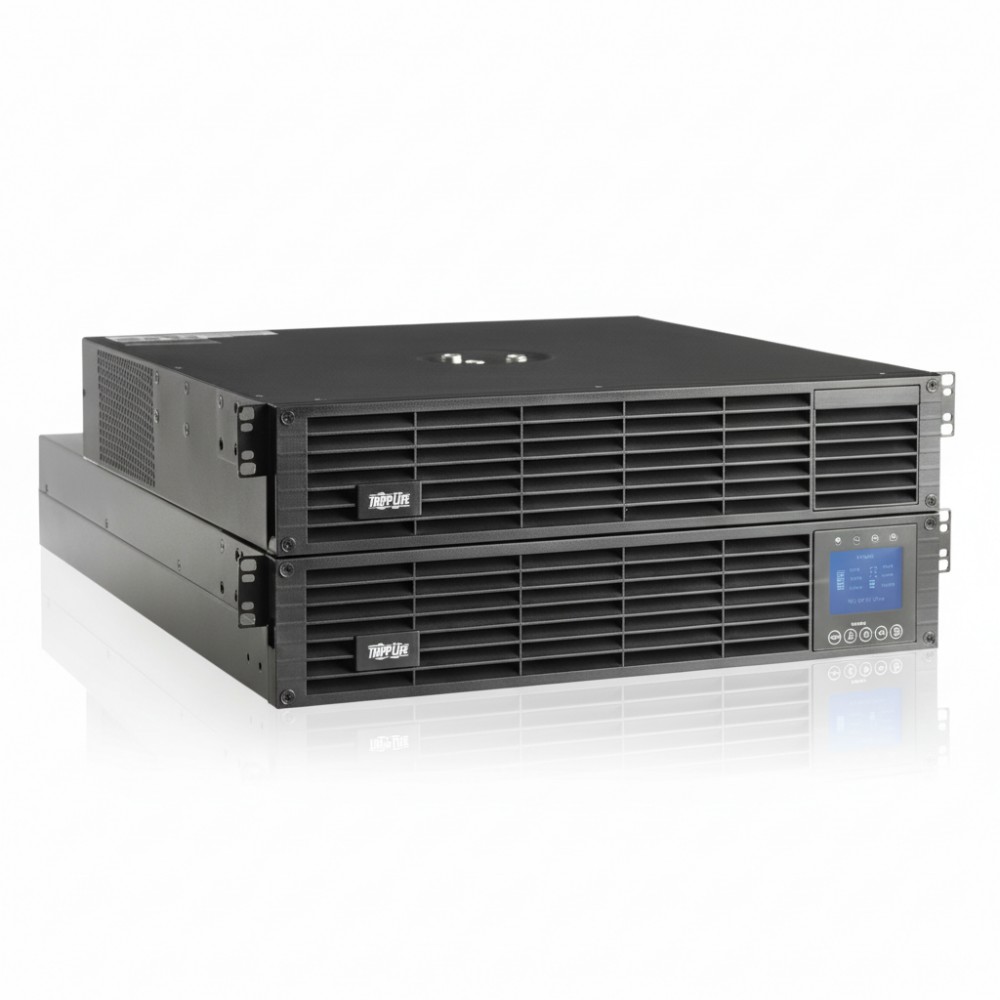

Eaton SU3000LCD2UHVTF - On-Line Double-Conversion UPS with 208 V→120 V Transformer
Overview :
The Eaton SU3000LCD2UHVTF is a 3000 VA / 2700 W on-line double-conversion uninterruptible power supply (UPS) designed for enterprise rack-mount deployment by IT infrastructure teams who require regulated output for mixed-voltage loads (208 V and 120 V). It features true sine-wave AC output with zero transfer time between mains and battery modes, eliminating disruption to sensitive network, server, and storage systems. Its integrated 208 V to 120 V step-down transformer allows the same unit to power both high-voltage and standard 120 V equipment without separate adapters, making it suitable for branch data closets, campus racks or edge computing sites. In a 4U rack profile it supports remote monitoring via USB, RS-232 and optional SNMP/Web interface, enabling integration into power-management and asset-monitoring platforms in data-centres or hybrid-IT environments.
Key Features :
On-line double-conversion topology for continuous regulation
Built-in step-down transformer supports both 208 V and 120 V output
Hot-swappable VRLA battery module with field replaceability
Four selectable operational strategies including automatic economy mode
Specifications :
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | SU3000LCD2UHVTF |
| Product Type | On-Line Double-Conversion UPS (Rackmount with Transformer) |
| VA Rating | 3000 VA |
| Watt Rating | 2700 W |
| Output Power Factor | 0.9 |
| Output Voltage(s) Supported | 208 V and 120 V (via included step-down transformer) |
| Output Waveform | True sine wave |
| Input Nominal Voltage(s) | 208 V AC (single-phase) |
| Runtime at Full Load | 5 minutes (2700 W) |
| Runtime at Half Load | 13.5 minutes (1350 W) |
| AC Suppression Joule Rating | 570 J |
| Transfer Time (Line to Battery) | 0 ms (zero transfer time) |
| Form Factor / Rack Size | Rackmount, 4U |
| Unit Dimensions (H × W × D) | 6.96 in × 17.32 in × 24.25 in |
| Unit Weight | 133.82 lbs |
| Communication Ports | USB, RS-232 (DB9), EPO; optional SNMP/Web card slot |
| Operating Temperature Range | 32 °F to 104 °F (0 °C to 40 °C) |
