Detailed Specifications

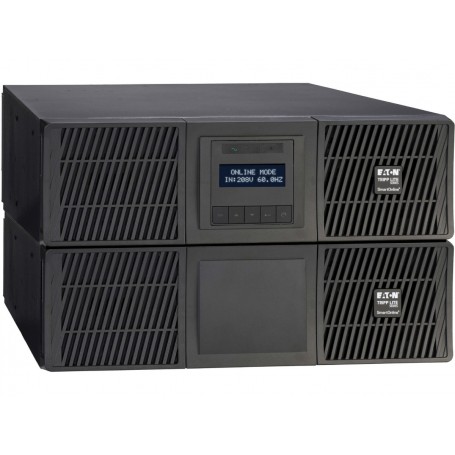

Eaton SU5000RTF SmartOnline 5000VA Online Double-Conversion UPS Compatible Tripp Lite
Overview :
The Eaton SU5000RTF is a 5000VA/4500W SmartOnline UPS designed for mission-critical IT infrastructure, network equipment and other applications requiring continuous power conditioning and zero transfer time during utility failures.
Its online double-conversion topology provides true sine-wave output and protects connected equipment against blackouts, brownouts, transient surges and line noise. The system accepts 200-240V input, factory configured to 208V, and provides 120V output through the included step-down transformer for low-voltage equipment.
The 6U rack/tower UPS includes a pre-installed WEBCARDLXE network card for remote monitoring and management. Internal hot-swappable VRLA batteries provide approximately 3 minutes of runtime at full 4500W load and 11 minutes at half load, with support for up to four BP180RT extended battery modules.
Key Features :
- 5000VA / 4500W capacity
- Online double-conversion topology
- True sine-wave output
- 200-240V input; factory configured to 208V
- 120V output through included step-down transformer
- 6U rack/tower configuration
- Pre-installed WEBCARDLXE network card
- 18 × 5-20R, 2 × L6-20R and 1 × L6-30R outlets
- Hot-swappable VRLA battery
- Supports up to 4 BP180RT extended battery modules
- 3-minute full-load and 11-minute half-load runtime
- Internal bypass and surge protection
- 93% maximum-load efficiency
- LCD interface with load, voltage and battery information
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | SU5000RTF |
| Product Type | Online UPS |
| Topology | Online / Double-Conversion |
| Capacity | 5000VA / 4500W |
| Input Voltage | 200-240V |
| Factory Input Configuration | 208V |
| Output Voltage | 120/240V default; 200-240V selectable |
| Output Waveform | True Sine Wave |
| Frequency | 50/60 Hz |
| Input Connection | L6-30P / Hardwire |
| Output Receptacles | 18 × 5-20R, 2 × L6-20R, 1 × L6-30R, 1 × Hardwire |
| Power Factor | 0.9 |
| Battery Type | VRLA |
| Full-Load Runtime | 3 min at 4500W |
| Half-Load Runtime | 11 min |
| Network Card | WEBCARDLXE |
| Rack Size | 6U |
| Extended Battery | Up to 4 × BP180RT |
| Operating Temperature | 0-40°C |
| Relative Humidity | 0-95%, non-condensing |
| Efficiency | 93% at maximum load |
