Detailed Specifications

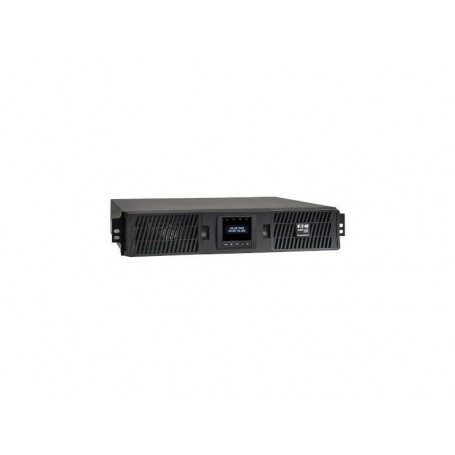

Eaton SU750RTXLCD2U SmartOnline 750VA 675W Double-Conversion UPS Tripp Lite
Overview :
The Eaton SU750RTXLCD2U is a Tripp Lite SmartOnline 750VA / 675W online double-conversion UPS designed for servers, network equipment, computer rooms, network closets, and other mission-critical IT installations. Its double-conversion topology continuously conditions incoming AC power and provides true sine-wave output with zero transfer time during power failures.
The UPS supports selectable 100/110/115/120/127V output, uses a NEMA 5-15P input, and provides 8 NEMA 5-15R outlets on the current 2023 design. It includes an LCD interface, USB and RS-232 communications, an expansion slot for the WEBCARDLXE network card, hot-swappable VRLA batteries, and support for up to four external BP36RT battery modules.
Key Features :
- 750VA / 675W capacity
- Online double-conversion topology
- True sine-wave output
- Zero transfer time
- 2U rack/tower form factor
- Selectable 100/110/115/120/127V output
- 8 × NEMA 5-15R outlets on current design
- NEMA 5-15P input
- Hot-swappable VRLA batteries
- Extended-runtime capability
- LCD display with selectable UPS/site-power screens
- USB and RS-232 communication
- WEBCARDLXE network-card expansion slot
- Internal bypass
- EMI/RFI noise suppression
- Economy mode
- Individually controllable load banks
- RPO/ROO support
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | SU750RTXLCD2U |
| Product Type | Online Double-Conversion UPS |
| Series | SmartOnline |
| UPS Capacity | 750VA / 675W |
| Topology | Online / Double-Conversion |
| Input Voltage | 100/110/115/120/127V AC |
| Input Plug | NEMA 5-15P |
| Input Cord Length | 8 ft |
| Output Voltage | 100/110/115/120/127V AC |
| Output Waveform | True Sine Wave |
| Output Outlets | 8 × NEMA 5-15R |
| Maximum Output Current | 6.2A |
| Output Regulation | ±1% line mode / ±2% battery mode |
| Power Factor | 0.99 input / 0.9 output |
| Battery Type | VRLA |
| Battery | Hot-swappable, field-replaceable |
| External Battery Support | Up to 4 × BP36RT |
| Full-Load Runtime | Approx. 7.9 min at 675W |
| Half-Load Runtime | Approx. 20.9 min |
| Communications | USB, RS-232, RPO/ROO |
| Network Management | WEBCARDLXE optional |
| Display | LCD |
| Rack Size | 2U |
| Phase | Single-phase |
| Internal Bypass | Yes |
