Detailed Specifications

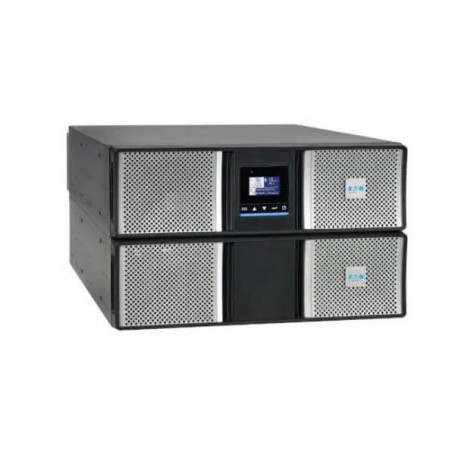

Eaton 9PX6KP1G2 6000VA 9PX G2 Online UPS Compatible Tripp Lite
Overview :
The Eaton 9PX6KP1G2 is a 9PX G2 6000VA / 5400W online double-conversion UPS designed to provide continuous, regulated power protection for critical IT and data-center equipment.
The UPS accepts 200-240V AC input through an L6-30P connection and provides configurable 120/208/240V output. It includes six 5-20R receptacles, one L6-30R receptacle and one L14-30R receptacle. The unit uses true sine-wave output and provides a 0.9 output power factor.
The 9PX6KP1G2 is a 6U rack/tower UPS supplied with the 9PXPPDM1G2 PowerPass Distribution Module with integrated maintenance bypass. A NETWORK-M3 Gigabit network card is included for remote monitoring and management.
Key Features :
- 6000VA / 5400W capacity
- Online double-conversion topology
- 120/208/240V configurable output
- 200-240V nominal input range
- True sine-wave output
- 0.9 output power factor
- 96% maximum-load efficiency
- Integrated maintenance bypass through included PPDM
- NETWORK-M3 Gigabit network card included
- ABM+ battery management technology
- Hot-swappable VRLA batteries
- Supports up to 12 extended battery modules
- 6U rack/tower form factor
- Rack-mounting hardware included
- Tower support stands included
- Surge protection and internal bypass
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton Corporation |
| Product Family | Eaton 9PX G2 |
| Part Number | 9PX6KP1G2 |
| Product Type | Online Double-Conversion UPS |
| UPS Capacity | 6000 VA |
| Output Power | 5400 W |
| Rack Height | 6U |
| Installation | Rack / Tower |
| Input Connection | L6-30P |
| Input Cord Length | 6.5 ft. |
| Input Voltage | 200 / 208 / 220 / 230 / 240V AC |
| Input Frequency Range | 50 Hz: 40-60 Hz; 60 Hz: 50-70 Hz |
| Input Power Factor | >0.99 typical |
| Output Voltage | 120 / 208 / 220 / 230 / 240V |
| Nominal Output Voltage | 120V |
| Output Voltage Regulation | ±1% steady-state |
| Output Frequency | 50/60 Hz |
| Output Power Factor | 0.9 |
| Output Waveform | True sine wave |
| Output Receptacles | 6 × 5-20R, 1 × L6-30R, 1 × L14-30R |
| Topology | Online / Double-conversion |
| Maximum Efficiency | 96% |
| Internal Bypass | Yes |
| Maintenance Bypass | Included via 9PXPPDM1G2 |
| Battery Type | VRLA |
| Battery Management | ABM+ |
| Internal Batteries | Hot-swappable |
| Replacement Battery | EBP-1805 |
| Extended Battery Module | 9PXEBM180RTG2 |
| Maximum EBMs | 12 |
| Full-Load Runtime | 3 min. at 5400W |
| Half-Load Runtime | 8.3 min. |
| Network Card | NETWORK-M3 Gigabit |
| Ethernet | Yes |
| Expansion Slot | 1 × Mini-Slot |
| Management Software | Brightlayer Data Centers suite |
