Detailed Specifications

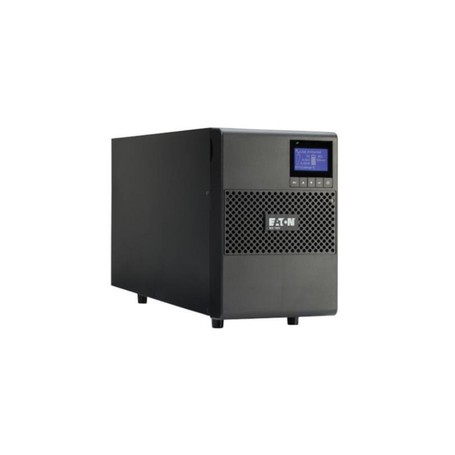

Eaton 9SX1500G 1500VA Online Double-Conversion UPS Compatible Tripp Lite
Overview :
The Eaton 9SX1500G is a 9SX Online Double-Conversion UPS rated at 1500 VA / 1350 W, designed to provide continuous, conditioned power for servers, networking equipment and other critical IT infrastructure. Eaton is the manufacturer, while Tripp Lite is the compatible/product brand designation being retained for this product series.
The UPS uses online double-conversion topology with a true sine-wave output and 0.9 output power factor. The 9SX1500G operates at 208V and provides eight C13 output receptacles with a C14 input connection.
The unit includes hot-swappable internal batteries, Eaton's ABM three-stage battery charging technology, an internal bypass and support for extended battery modules. A Mini-Slot expansion port supports optional network management, Modbus and relay communication cards.
Key Features :
- 1500 VA / 1350 W power capacity
- Online double-conversion UPS topology
- 208V nominal output
- True sine-wave output
- 0.9 output power factor
- Eight IEC C13 output receptacles
- IEC C14 input connection
- 50/60 Hz output frequency
- Hot-swappable internal batteries
- Supports external extended battery modules
- Eaton ABM three-stage battery charging technology
- Internal automatic bypass
- USB and RS-232 communication ports
- Mini-Slot expansion port
- Optional Gigabit Web/SNMP, Modbus and relay cards
- Five-button graphical user interface
- 8 ft. input power cord
- 0-40°C operating temperature
- FCC compliant and CE marked
- cULus Listed
- ICC-ES AC156 / OSHPD seismic certified
- 3-year limited factory warranty
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | 9SX1500G |
| Product Type | Online Double-Conversion UPS |
| Product Family | Eaton 9SX |
| VA Rating | 1500 VA |
| Wattage | 1350 W |
| Topology | Online / Double-conversion |
| Output Waveform | True sine wave |
| Output Voltage | 208 V |
| Output Power Factor | 0.9 |
| Output Frequency | 50/60 Hz |
| Output Receptacles | 8 × C13 |
| Input Connection | C14 |
| Input Nominal Voltage | 208 V default |
| Input Voltage Range | 200/208/220/230/240 V nominal configurations |
| Input Cord Length | 8 ft. |
| Input Power Factor | >0.99 |
| Battery Management | ABM three-stage charging |
| Battery Replacement | Hot-swappable |
| Extended Battery Support | Yes |
| Internal Bypass | Yes |
| Communication Ports | USB, RS-232 |
| Expansion Slot | 1 × Mini-Slot |
| Optional Network Card | NETWORK-M3 |
| Optional Modbus Card | INDGW-M2 |
| Optional Relay Card | RELAY-MS |
