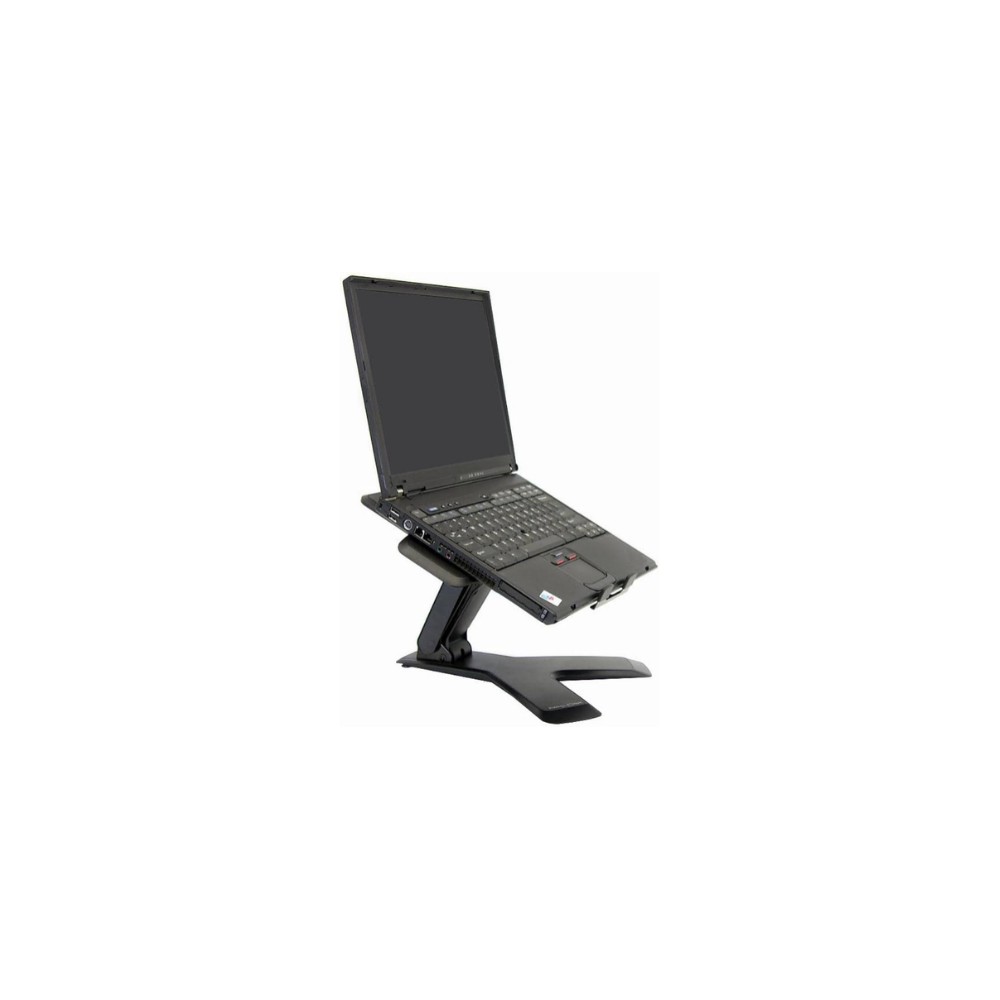

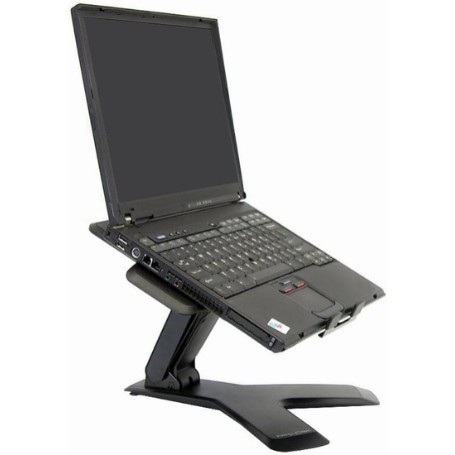

Ergotron 33-334-085 – Neo-Flex Notebook Lift Stand
Overview
The Ergotron 33-334-085 is a Neo-Flex Notebook Lift Stand designed to raise and position a laptop screen for a more ergonomic viewing height. Its adjustable platform accommodates most notebooks with or without a docking station and provides a six-inch height range, tilt adjustment, and 360° side-to-side swivel.
Technical Information
The stand uses Ergotron Constant Force motion technology for smooth height and tilt adjustment. The platform provides up to 6 inches (15.2 cm) of combined lift and tilt movement, with independent tilt adjustment from -15° to +25° and 360° swivel. The vented platform allows airflow beneath the notebook during operation.
Compatibility
The 33-334-085 supports most notebook computers weighing 3.5–14 lb (1.6–6.3 kg), including systems used with an external docking station. An external keyboard is recommended when the notebook is raised for improved ergonomic positioning. The stand can also be reversed for use as a platform for compatible projectors.
Key Features
- Supports most notebooks weighing 3.5–14 lb (1.6–6.3 kg)
- Provides up to 6 inches (15.2 cm) of height adjustment
- Offers -15° to +25° tilt adjustment
- Provides 360° side-to-side swivel
- Vented platform supports notebook cooling and docking-station use
Applications
The Neo-Flex Notebook Lift Stand is suited to office, home-office, education, presentation, and workstation environments where a laptop needs to be elevated to a more suitable viewing height. It can also support a dual-display setup when used alongside a separate LCD monitor.
DC Supplies Product Note
Confirm the notebook's weight before deployment. The 33-334-085 is a free-standing notebook platform rather than a VESA monitor mount, and Ergotron specifies a 3.5–14 lb (1.6–6.3 kg) load range.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 33-334-085 |
| Product Type | Notebook Lift Stand |
| Product Series | Neo-Flex |
| Color | Black |
| Supported Device | Notebook Computer |
| Load Capacity | 3.5–14 lb (1.6–6.3 kg) |
| Height Adjustment | Up to 6 in (15.2 cm) |
| Tilt Range | -15° to +25° |
| Swivel | 360° |
| Platform | Vented notebook platform |
| Docking Station Compatibility | With or without docking station |
| Mounting Type | Free-standing |
| Product Dimensions | 13.7 x 12.6 x 3.3 in (34.8 x 32 x 8.4 cm) |
| Product Weight | 3.6 lb (1.6 kg) |
| Included Accessories | Cable ties, hook-and-loop fasteners, adhesive non-slip pads |
| Motion Technology | Constant Force |
| Warranty | 3 years |
FAQs
What is the Ergotron 33-334-085?
It is a Neo-Flex Notebook Lift Stand that raises, tilts, and swivels a laptop for adjustable ergonomic positioning.
What laptops are compatible with the 33-334-085?
The stand is designed for most notebook computers weighing 3.5–14 lb (1.6–6.3 kg), with or without a docking station.
How much can the notebook be raised?
The stand provides up to 6 inches (15.2 cm) of combined height adjustment.
Can the notebook platform tilt?
Yes. The platform provides a tilt range from -15° to +25°.
Does the stand swivel?
Yes. The Neo-Flex Notebook Lift Stand provides 360° side-to-side swivel.
Does the platform provide ventilation?
Yes. The vented platform allows airflow beneath the notebook during operation.
