Detailed Specifications

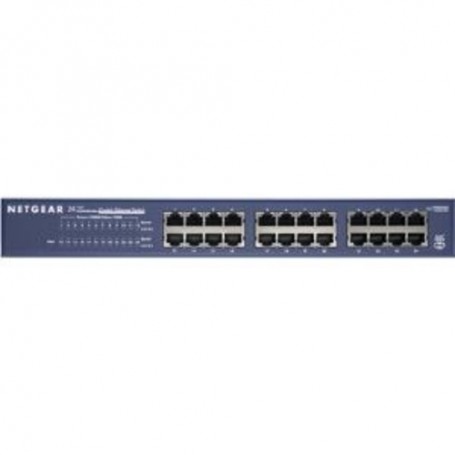

Netgear ProSafe JGS524 24-Port Gigabit Ethernet Switch - 24 x 10/100/1000
NETGEAR's JGS524 Gigabit Switch gives your office network a mega boost of speed and capacity that is within your budget. With up to 48 Gbps of bandwidth, this 24-port switch can blast 2000 Mbps per port while their affordable prices enable you to put them everywhere. Use it to take Gigabit Ethernet directly to the desktop! Standards-based for easy integration of 10, 100, and 1000 Mbps devices, this unmanaged, rack-mountable switch feature 10/100/1000 automatic speed and full/half-duplex sensing plus Auto Uplink on every port. Users can take advantage of the its ability to deliver large amounts of multimedia, image, and video information in no time at all. Ideal for workgroups, labs, departments, or growing offices looking for oustanding performance at a low price.
| General Information |
|---|
| Manufacturer Website Address: |
http://www.netgear.com |
| Brand Name: |
Netgear |
| Product Line: |
ProSafe |
| Manufacturer: |
Netgear, Inc |
| Product Name: |
ProSafe JGS524 24-Port Gigabit Ethernet Switch |
| Manufacturer Part Number: |
JGS524NA |
| Product Series: |
JGS500 |
| Product Type: |
Ethernet Switch |
| Product Model: |
JGS524 |
| Basic |
|---|
| Ethernet Technology: |
Gigabit Ethernet |
| Product Type: |
Ethernet Switch |
| Layer Supported: |
2 |
| Form Factor: |
Rack-mountable |
| Product Family: |
ProSafe JGS500 |
| Media Type Supported: |
Twisted Pair |
| Manageable: |
No |
| Network Technology: |
10/100/1000Base-T |
| Port/Expansion Slot Details: |
Gigabit Ethernet |
| Brand Name: |
Netgear |
| Total Number of Network Ports: |
24 |
| Media & Performance |
|---|
| Media Type Supported: |
Twisted Pair |
| Twisted Pair Cable Standard: |
Category 5 |
| Network Technology: |
10/100/1000Base-T |
| Ethernet Technology: |
Gigabit Ethernet |
| Physical Characteristics |
|---|
| Width: |
13" |
| Weight (Approximate): |
5.30 lb |
| Height: |
1.7" |
| Form Factor: |
Rack-mountable |
| Depth: |
8.2" |
| Reliability |
|---|
| MTBF: |
87600 Hour |
| Miscellaneous |
|---|
| System Requirements: |
- UTP Category 5 cables or better
- Network card for each PC or server
|
| Additional Information: |
- Latency (1000 to 1000 Mbps): 20 µs max
|
| Certifications & Standards: |
- IEEE 802.3i: 10BASE-T Ethernet
- IEEE 802.3u: 100BASE-TX Fast Ethernet
- IEEE 802.3ab: 1000BASE-T Gigabit Ethernet
- IEEE 802.3x: Flow Control
Electromagnetic Compliance:
- CE mark, commercial
- FCC Part 15 Class A
- VCCI Class A
- EN 55022 (CISPR 22), Class A, EN 50082-1
- EN 55024
- C-Tick
Safety Agency Approvals:
- UL listed (UL 1950)/cUL
- IEC950/EN60950
|
| Package Contents: |
- 24-port Gigabit Ethernet Switch JGS524
- Power adapter
- Installation guide
- Rack-mount kit
- Warranty/Support information card
|
| Power Description |
|---|
| Input Voltage: |
110 V AC |
|
220 V AC |
| Interfaces/Ports |
|---|
| Total Number of Network Ports: |
24 |
| Port/Expansion Slot Details: |
24 x Gigabit Ethernet Network |
| Number of Network (RJ-45) Ports: |
24 |
| Network & Communication |
|---|
| Layer Supported: |
2 |
| Management & Protocols |
|---|
| Manageable: |
No |
| Warranty |
|---|
| Limited Warranty: |
Lifetime |
