JL319A Overview

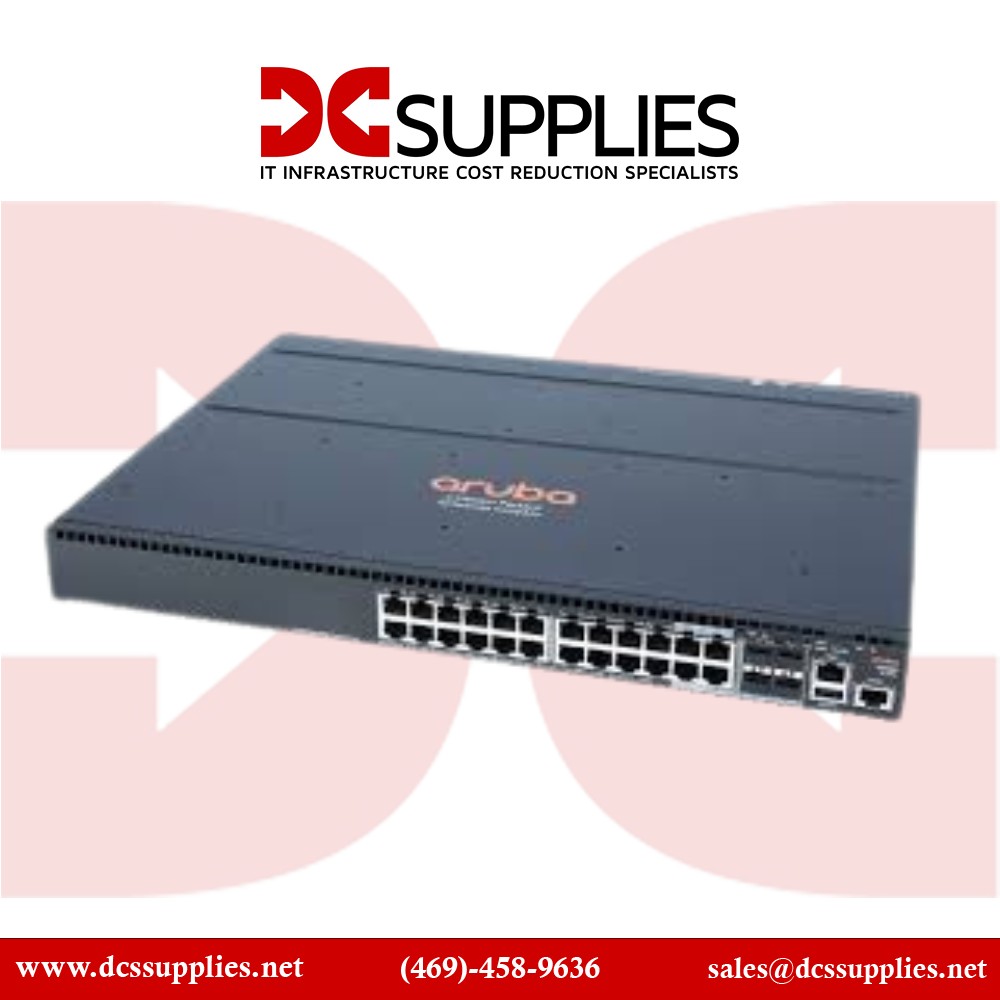

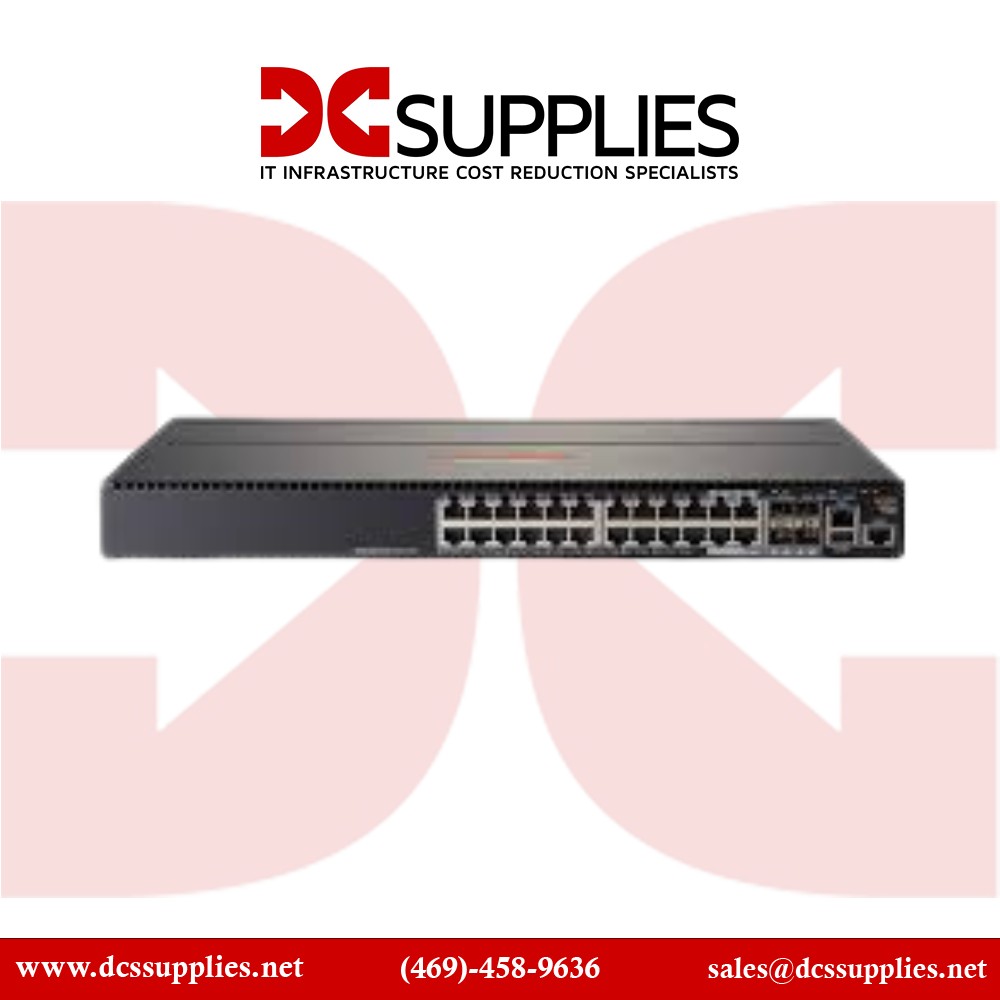

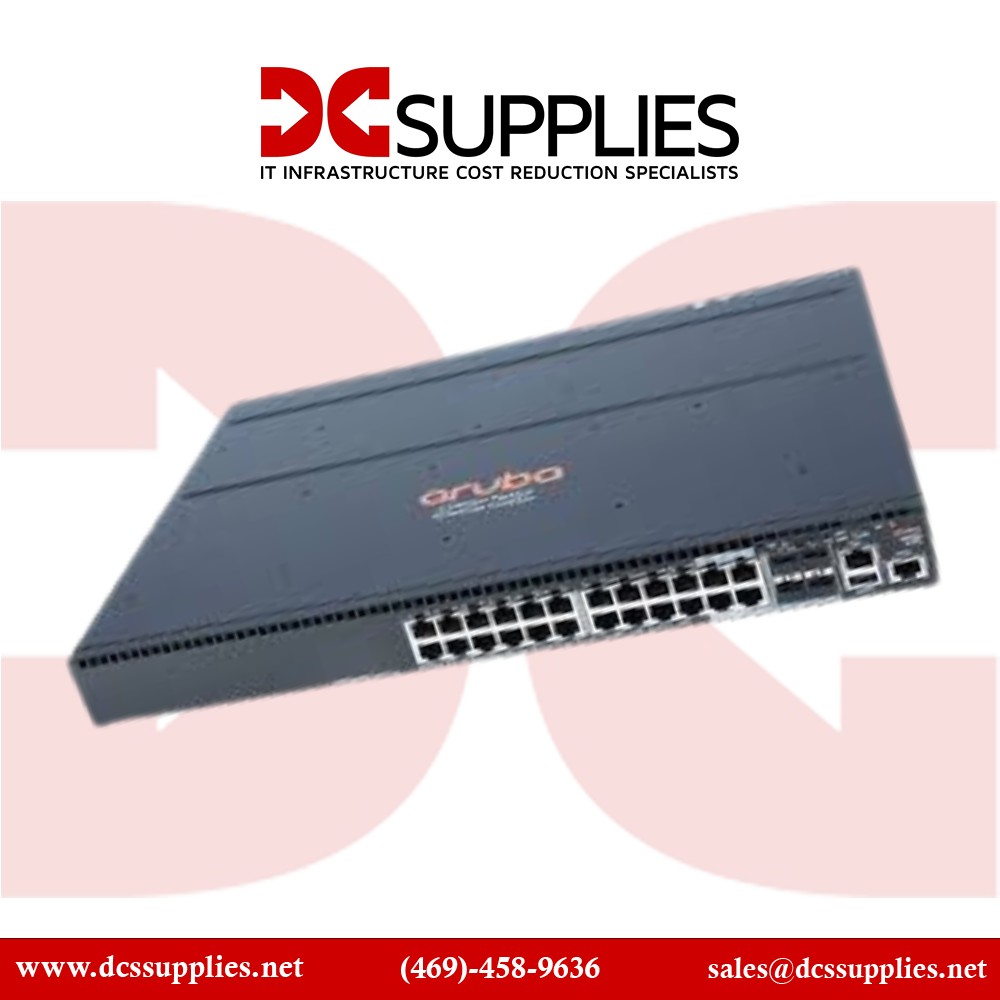

HPE Aruba  JL319A 2930M 24G 1-Slot 24 Ports Managed Rack Mountable Switch

The Aruba JL319A 2930M Switch Series is designed for customers creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave. With support from cloud-based Aruba Central, you can quickly set up remote offices with little or no IT support. A powerful Aruba ProVision ASIC delivers performance and value with the support of the latest SDN apps with future-proof programmability for tomorrow’s applications. High-performance modular stacking for up to 10 switches provides pay as you grow scalability and simplicity. The JL319A 2930M supports 10GbE and 40GbE uplinks, Dual Modular Power Supplies, up to 1440 Watts of PoE+, models with JL319A 24 ports of HPE Smart Rate multi-gigabit Ethernet, robust QoS, RIP, Access OSPF routing, Tunnel Node, PIM, VRRP and IPv6 with no software licensing required.

The Aruba JL319A 2930M Switch Series provides a convenient and cost-effective access switch solution that can be quickly set up with Zero Touch Deployment. The switches include a Limited Lifetime Warranty.

JL319A Key Features :

• Device Type: JL319A Switch - 24 Ports - L3 - Managed - Stackable
• Enclosure Type: Rack-mountable 1u JL319A
• Subtype: Gigabit Ethernet JL319A
• Ports: 20 X 10/100/1000 + 4 X Combo Gigabit SFP JL319A
• Performance : Throughput: 95.2 Mpps Switching Capacity: 128 Gbps Latency (1 Gbps): 3.1 Latency (10 Gbps): 3.4 Latency (10 Mbps): 98.5 Latency (100 Mbps): 11.8
• Capacity: Jumbo Frame Size: 9220 Ipv4 Routing Table Entries: 2000 Ipv6 Routing Table Entries: 1000
• Mac Address Table Size : 32768 Entries
• Routing Protocol : Ospf, Rip, Rip-1, Rip-2, Igmpv2, Igmp, Ospfv2, Static Ip Routing, Igmpv3, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ecmp, Ripng, Mld, Cidr
• Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Snmp, Telnet, Snmp 3, Snmp 2c, Http, Ssh, Ssh-2, Cli, Xrmon
• Encryption Algorithm : Md5, Ssl, Tls
• Authentication Method : Radius, Pap, Chap, Tacacs, Tacacs+, Secure Shell V.2 (ssh2), Extensible Authentication Protocol (eap)
• Features JL319A : Flow Control, Full Duplex Capability, Dhcp Support, Bootp Support, Arp Support, Vlan Support, Igmp Snooping, Syslog Support, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Spanning Tree Protocol (stp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Dhcp Server, Mld Snooping, Stp Root Guard, Uni-directional Link Detection (udld), Lldp Support, Link Aggregation Control Protocol (lacp), Management Information Base (mib), Mac Address Lockout, Dynamic Arp Protection, Dhcp Protection, Dynamic Vlan Support (gvrp), Multiple Vlan Registration Protocol (mvrp), Neighbor Discovery Protocol (ndp), Class Of Service (cos), Type Of Service (tos), Openflow Support, Cpu Protection, Internet Control Message Protocol (icmp), Icmp Router Discovery Protocol (irdp), Virtual Extensible Lan (vxlan), Management Information Base (mib) Ii, Lldp-med, Stp Bpdu Guard
• Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1v, Ieee 802.3az, Ieee 802.1ax, Ieee 802.3bz
• Processor : 1 X Arm Cortex-a9: 1.016 Ghz
• Ram : 1 Gb Ddr3 Sdram
• Flash Memory : 4 Gb

  Expansion / Connectivity :
  Interfaces :
• 20 X 1000base-t Rj-45 4 X 1000base-t
• 1 X Serial (console)
• 1 X Usb Type B
• 1 X 1000base-t Management

  Expansion Slots : JL319A
• 1 (total) / 1 (free) X Stacking Module Slot
• 1 (total) / 1 (free) X Expansion Slot

  Power : JL319A
• Power Device : Internal Power Supply
• Installed Qty : 0 (installed) / 2 (max)
• Voltage Required : Ac 120/230 V (50/60 Hz)
• Power Consumption Operational : 93 Watt
• 80 Plus Certification : 80 Plus Silver
