- Data Center Efficiency
HPE 6125G Ethernet Blade Switch can be combined with other switches at the enclosure, rack or datacenter level into a single virtual switch and managed through a single IP address.
All network devices can be managed through Intelligent Management Center (IMC) providing comprehensive single pane provisioning of the entire network.
The HPE Comware operating system provides a common level of features, service, and security levels from edge to core.
Specifications 658247-B21:
| Device Type | Switch - 8 ports - managed - stackable |
| Enclosure Type | Plug-in module |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 + 2 x Gigabit SFP + 2 x Gigabit SFP / 10 Gigabit SFP+ |
| Capacity | IGMP groups: 1024 |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 9220 bytes |
| Routing Protocol | OSPF, RIP-1, RIP-2, BGP, IGMP, VRRP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, MSDP, static IPv4 routing, static IPv6 routing, ECMP, policy ... |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2, CLI |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | BOOTP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, store and forward, sFlow, Spanning Tree Protocol (STP) ... |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE ... |
| RAM | 1 GB |
| Flash Memory | 256 MB |
| Status Indicators | Port transmission speed, link/activity |
| Interfaces | 4 x 1000Base-T RJ-45 ¦ 2 x SFP (mini-GBIC) ¦ 1 x RJ-45 management ¦ 2 x SFP/SFP+ ¦ 16 x backplane |
| Width | 14.6 in |
| Depth | 11.5 in |
| Height | 3.7 in |
| Weight | 4.19 lbs |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Designed For | HPE ProLiant c3000 |

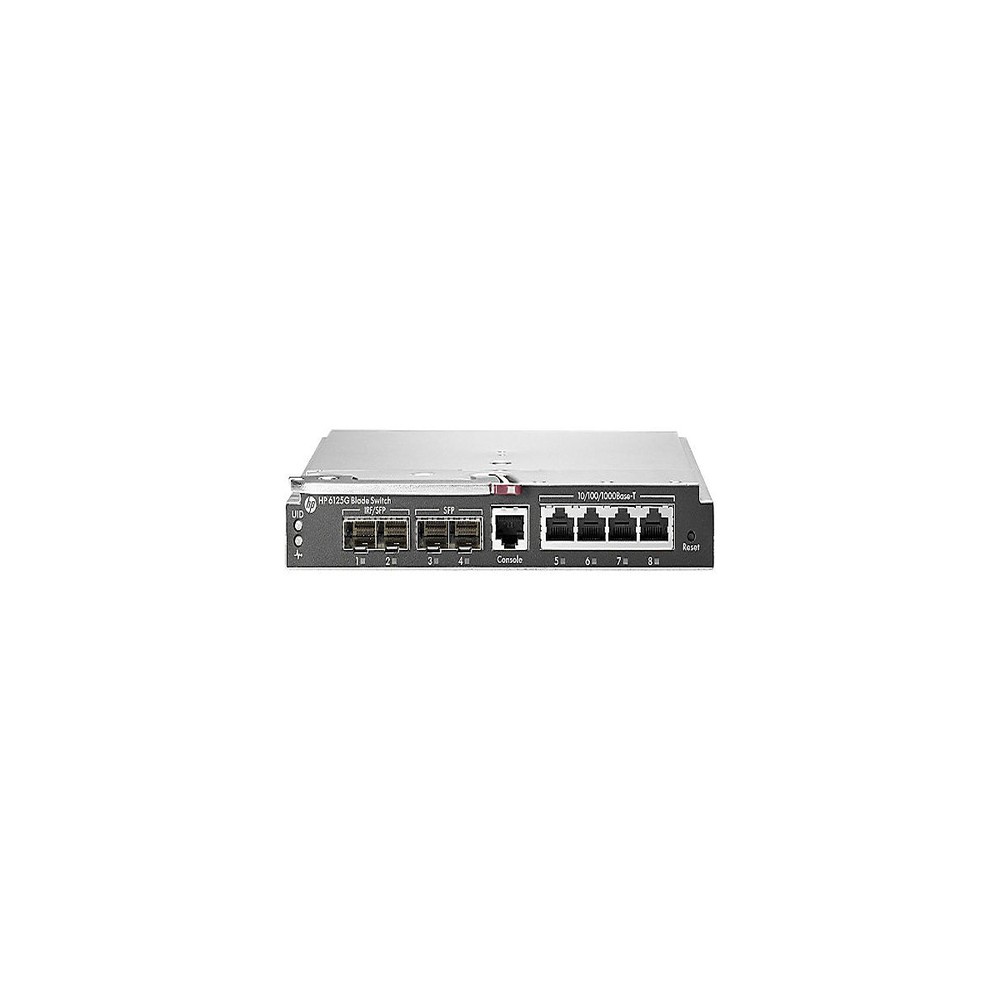

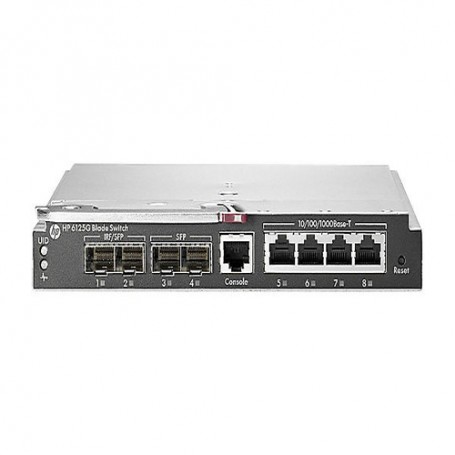

| Product Description | HPE 6125G Ethernet Blade Switch - switch - 8 ports - managed - plug-in module |
| Dimensions (WxDxH) | 14.6 in x 11.5 in x 3.7 in |
| manufacturer | Hewlett Packard Enterprise |
