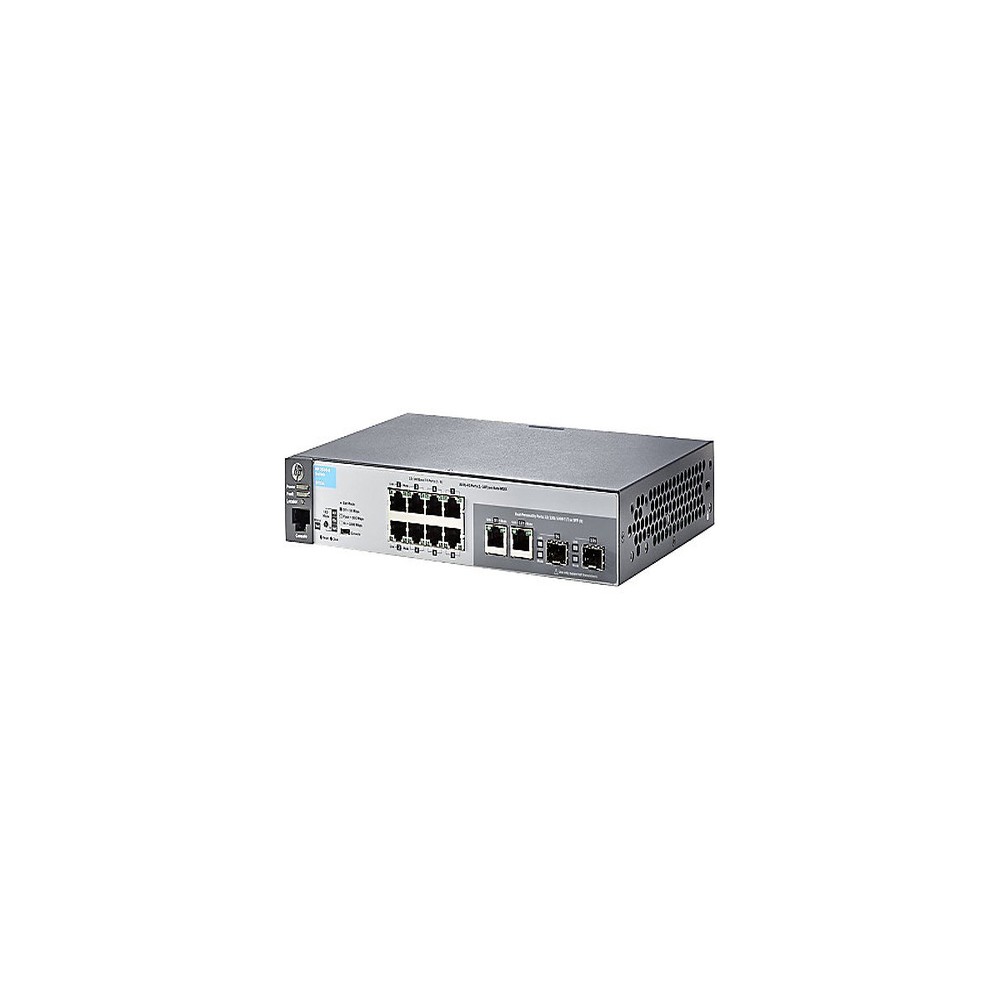

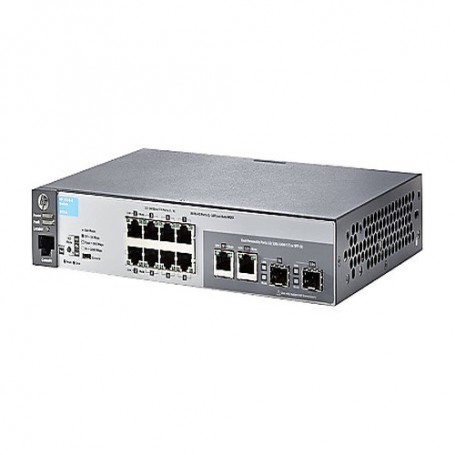

HPE Aruba 2530-8 - switch - 8 ports - managed - rack-mountable View larger

HPE Aruba 2530-8 - switch - 8 ports - managed - rack-mountable

J9783A#ABA

New

HPE Aruba 2530-8 - switch - 8 ports - managed - rack-mountable

×




HP, HPE, HPE Aruba, HPE Aruba 2530, HP J9783A, HPE J9783A, J9783A, HPE Aruba 2530-8 - switch - 8 po, HPE Aruba 2530-8 - switch, HPE Aruba 2530-8G - switch

Detailed Specifications

HPE Aruba 2530-8 - switch - 8 ports - managed - rack-mountable

The Aruba 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver Layer 2 capabilities with optional PoE+, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and power savings with Energy Efficient Ethernet. The Aruba 2530 Switch Series is easy to use and deploy, and delivers consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager, Airwave and cloud-based Central.

Technical Specifications

Main Features

  • Switch
  • managed
  • 8 x 10/100 + 2 x combo Gigabit SFP
  • desktop
  • rack-mountable
  • wall-mountable
  • Environmental Parameters

  • 15 - 95% (non-condensing)
  • 15 - 90% (non-condensing)
  • 113 °F
  • 158 °F
  • 32 °F
  • -40 °F
  • Header

  • Aruba
  • PC
  • United States
  • English
  • Aruba
  • 2530-8
  • 1
  • Aruba
  • Interface Provided

  • RJ-45
  • Ethernet 10Base-T/100Base-TX/1000Base-T
  • 2
  • SFP (mini-GBIC)
  • RJ-45
  • 1
  • Management
  • Ethernet 10Base-T/100Base-TX
  • 8
  • Miscellaneous

  • RADIUS, Secure Shell v.2 (SSH2), TACACS+
  • CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1, EN 60825, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC Class A certified, IEC 60950-1, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, UL 60950-1, VCCI Class A ITE
  • SSL
  • 1
  • Networking

  • IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
  • Wired/Wireless
  • Access Control List (ACL) support, ARP support, Auto-uplink (auto MDI/MDI-X), BOOTP support, Class of Service (CoS), DHCP support, Flow control, Full duplex mode, Generic Attribute Registration Protocol (GARP), Half duplex mode, IPv6 support, LLDP support, Multiple Spanning Tree Protocol (MSTP) support, Port mirroring, Quality of Service (QoS), sFlow, SNTP support, STP Root Guard, Trunking, VLAN support
  • Desktop, Rack-mountable, Wall-mountable
  • 9220 bytes
  • 16000 entries
  • Yes
  • 8
  • PoE+
  • CLI, HTTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH-2, Telnet, TFTP
  • Network hubs and switches
  • Fast Ethernet
  • Switch
  • Power Device

  • 50/60 Hz
  • AC 120/230 V
  • Internal power supply
  • Processor

  • 800 MHz
  • 1
  • ARM
  • Service

  • Lifetime
  • Limited warranty
  • Dimensions & Weight

  • 6.3 in
  • 1.8 in
  • 28.92 oz
  • 10 in
  • Service & Support

  • Limited lifetime warranty
  • Capacity

  • MAC addresses
  • 16000
  • Flash Memory

  • 128 MB
  • Performance

  • Switching capacity
  • 5.6 Gbps
  • Throughput
  • 4.1 Mpps
  • Ports

  • 8
  • 10/100
  • Ports (2nd)

  • 2
  • Combo Gigabit SFP
  • RAM

  • 256 MB
  • DDR3 SDRAM
