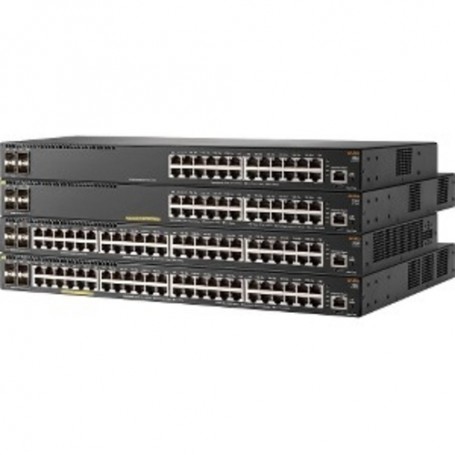

Designed for the digital workplace, the Aruba 2540 Switch Series is optimized for mobile users. With advanced security and network management tools - Aruba ClearPass Policy Manager and Aruba AirWave - this Layer 2 access switch is easy to deploy and manage. With support from cloud-based Aruba Central, you can quickly set up remote branch sites with little or no IT support. The 2540 delivers entry-level features for the enterprise campus, SMB, and branch offices. It provides built-in 10GbE uplinks, robust QoS, static and RIP routing, IPv6, and PoE+ models, and requires no software licensing.
Technical Specifications JL357A
Main Features
SFP+ transceiver module
10 GigE
10GBase-LR
SFP+ / LC single-mode
up to 6.2 miles
for Aruba 2540 48
Switch
managed
48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+
desktop
rack-mountable
wall-mountable
PoE+ (370 W)
Dimensions & Weight
12 in
1.7 in
9.83 lbs
17.4 in
Environmental Parameters
15 - 95% (non-condensing)
15 - 90% (non-condensing)
113 °F
158 °F
32 °F
-40 °F
Flash Memory
4 GB
Header
Aruba
PC
United States
English
Aruba Instant AP
2540 48G PoE+ 4SFP+
1
Aruba
Interface Provided
Management
1
Console
PoE+
RJ-45
48
1000Base-T
SFP+
4
Gigabit / 10Gbit LAN
Type B
Micro-USB
Miscellaneous
RADIUS, Secure Shell v.2 (SSH2), TACACS+
Black
CISPR 22 Class A, CNS 13438, CSA C22.2 No. 60950-1-07 Second Edition, EN 55022:2010, EN 55024: CISPR 24:2010, EN 60825-1:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, EN 61000-3-2, EN 61000-3-3, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60825-1:2007, IEC 60950-1:2005 + A1:2009 + A2:2013, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, UL 60950-1 Second Edition, VCCI Class A
SSL
1
Networking
Desktop, Rack-mountable, Wall-mountable
16384 entries
Yes
370 W
48
PoE+
Network hubs and switches
Gigabit Ethernet
Switch
Performance
Switching capacity
176 Gbps
Throughput
112 Mpps
Ports
48
10/100/1000 (PoE+)
Ports (2nd)
4
10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+
Power Device
50/60 Hz
AC 120/230 V
459 Watt
Internal power supply
Processor
1016 MHz
1
ARM
RAM
1 GB
DDR3 SDRAM
Service
Lifetime
Limited warranty
Service & Support
Limited lifetime warranty
