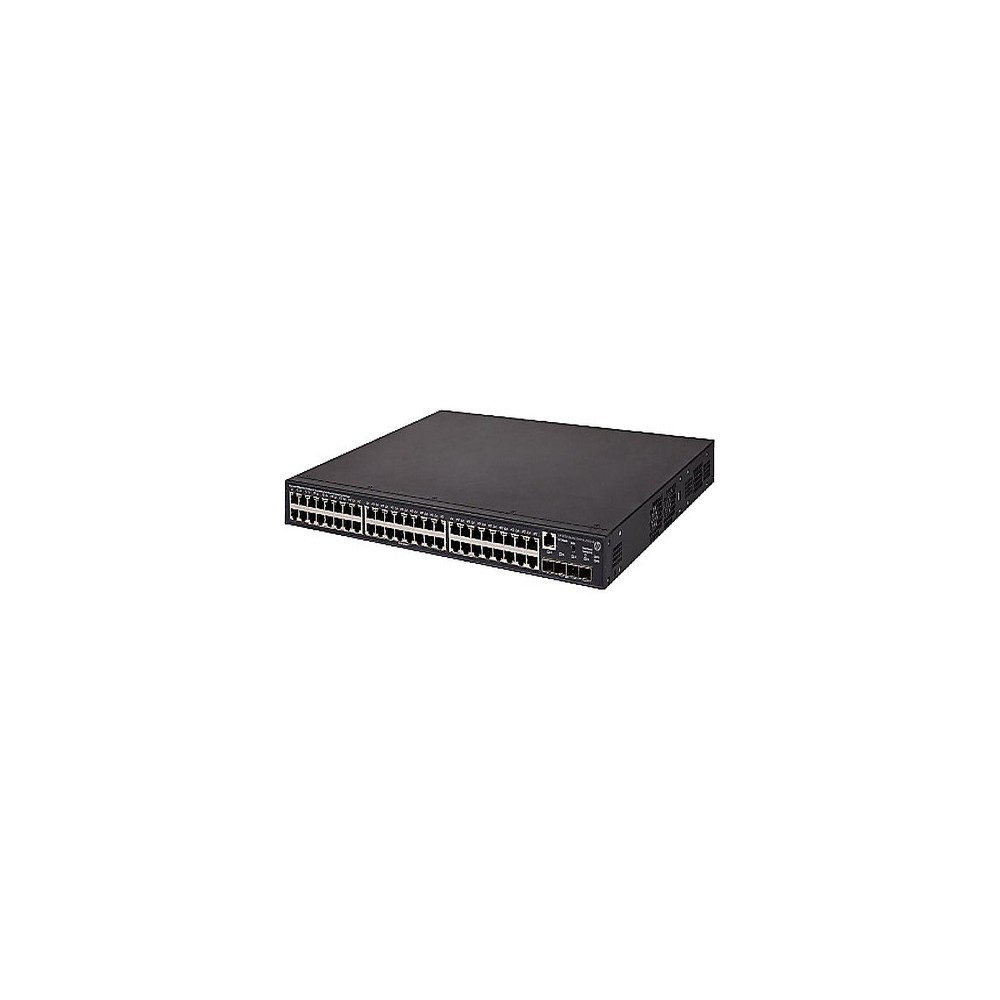

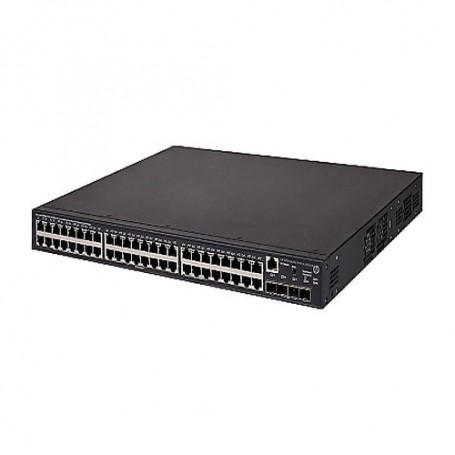

HPE 5130-48G-PoE+-4SFP+ EI - switch - 48 ports - managed - rack-mountable View larger

HPE JG937A 5130-48G-PoE+-4SFP+ EI - switch - 48 ports - managed - rack-mountable

JG937A

New

In Stock

HPE 5130-48G-PoE+-4SFP+ EI - switch - 48 ports - managed - rack-mountable

×




HPE 5130-48G switch, HPE 5130 switch, HP JG937A ABA, HPE JG937A ABA, JG937A ABA, JG937A, HP JG937A, HPE JG937A, HPE 5130-48 ports

$2,980.00

Detailed Specifications

HPE 5130-48G-PoE+-4SFP+ EI - switch - 48 ports - managed - rack-mountable

The HPE 5130 EI Switch Series delivers flexibility, scalability and low TCO at the access layer of medium and large enterprise campus networks. The series offers enterprise class QoS and security, Hewlett Packard Enterprise Intelligent Resilient Fabric (IRF) stacking, static layer 3 routing and RIP, convenient fixed 10GbE uplink ports, PoE+, ACLs, IPv6 and delivers energy savings with Energy Efficient Ethernet. The 5130 EI Switch Series can be managed with HPE Intelligent Management Center (IMC) for a single view of your entire network.

Technical Specifications

Main Features

  • Switch
  • L3
  • managed
  • 48 x 10/100/1000 + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+
  • rack-mountable
  • PoE+ (370 W)
  • Capacity

  • IPv4 routing table entries
  • 512
  • IPv6 routing table entries
  • 256
  • Capacity

  • IPv4 routing table entries
  • 512
  • IPv6 routing table entries
  • 256
  • Dimensions & Weight

  • 14.2 in
  • 1.7 in
  • 17.64 lbs
  • 17.3 in
  • Environmental Parameters

  • 10 - 90% (non-condensing)
  • 5 - 95% (non-condensing)
  • 113 °F
  • 158 °F
  • 32 °F
  • -40 °F
  • Flash Memory

  • 128 MB
  • Header

  • HPE
  • PC
  • United States
  • English
  • Aruba Instant AP
  • 5130-48G-PoE+-4SFP+ EI
  • 1
  • HPE
  • Interface Provided

  • Management
  • 1
  • Console
  • PoE+
  • RJ-45
  • 48
  • 1000Base-T
  • SFP+
  • 4
  • Gigabit / 10Gbit LAN
  • Miscellaneous

  • HWTACACS, RADIUS, Secure Shell v.2 (SSH2), TACACS+
  • Black
  • ANATEL, ANSI C63.4-2009, CAN/CSA C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, EMC, EN 300 386 V1.6.1, EN 300386, EN 60825-1, EN 60950-1, EN 61000-3-2:2006+A1:2009+A2:2009, EN 61000-3-3:2008, EN 61000-4-11:2004, EN 61000-4-29, EN 61000-4-4:2012, EN 61000-4-5:2006, EN 61000-4-6:2009, EN55022:2010 Class A, EN55024, FCC CFR47 Part 15, FCC Class A certified, FDA, IEC 60950-1, IEC 61000-4-3:2006, NOM, RoHS, UL 60950-1, VCCI V-3 Class A ITE, VCCI V-4, WEEE
  • SSL
  • 1
  • 37.1 year(s)
  • Included
  • Networking

  • Layer 3
  • IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • 3MB packet buffer, Access Control List (ACL) support, ARP support, Device Link Detection Protocol (DLDP) support, DHCP protection, DHCP relay, Dynamic ARP protection, Generic Attribute Registration Protocol (GARP), IGMP snooping, Intelligent Resilient Framework Technology (IRF), IPv6 support, LLDP support, Multiple Spanning Tree Protocol (MSTP) support, Port isolation, Port Security, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, sFlow, STP Root Guard, Strict Priority Queuing (SPQ), VLAN support, Weighted Round Robin (WRR) queuing
  • Rack-mountable
  • 9216 bytes
  • 16384 entries
  • Yes
  • 370 W
  • 48
  • PoE+
  • CLI, HTTP, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3
  • RIP-1, RIP-2, Static IPv4 routing, Static IPv6 routing
  • Stackable
  • Network hubs and switches
  • Gigabit Ethernet
  • Switch
  • Performance

  • Routing/switching capacity
  • 176 Gbps
  • Throughput
  • 130.9 Mpps
  • Ports

  • 48
  • 10/100/1000
  • Ports (2nd)

  • 4
  • 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+
  • Power Device

  • Redundant Power System (RPS) connector
  • AC 120/230 V
  • 490 Watt
  • Internal power supply
  • RAM

  • 1 GB
  • SDRAM
  • Service

  • 3 years
  • Phone consulting
  • Technical support
  • Lifetime
  • Replacement
  • Limited warranty
  • Service & Support

  • Limited lifetime warranty
  • Service & Support Details

  • Next business day
