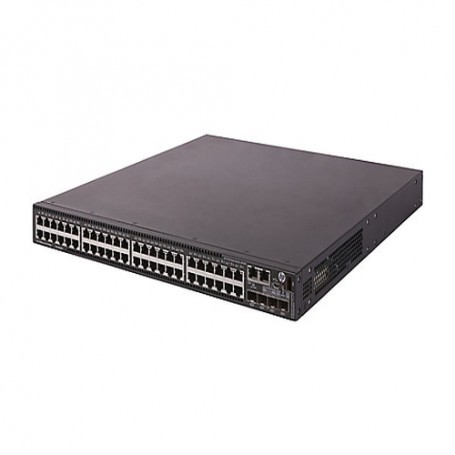

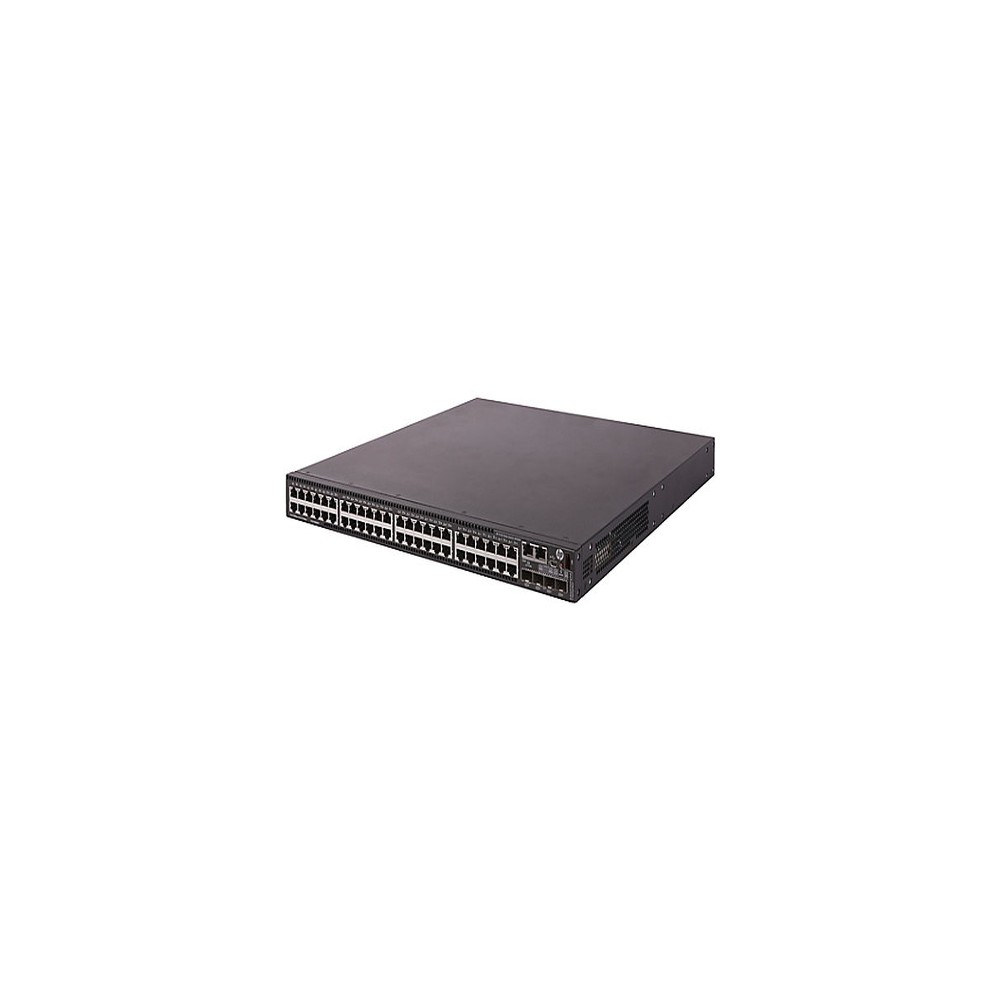

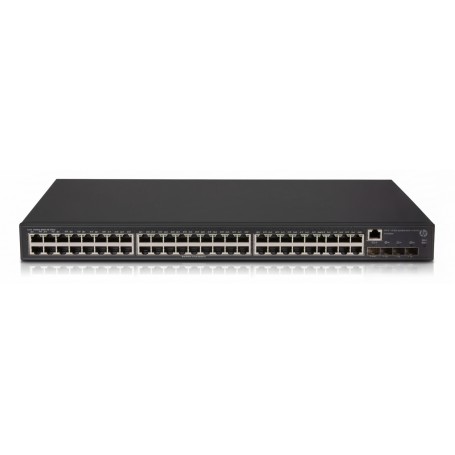

HPE 5130 48G PoE+ 4SFP+ 1-slot HI - switch - 48 ports - managed - rack-mountable View larger

HPE JH326A 5130 48G 1-slot HI - switch - 48 ports - managed - rack-mountable



In Stock

HPE JH326A 5130 48G 1-slot HI - switch - 48 ports - managed - rack-mountable


HP, HPE, HPE 5130, HPE 5130 switch, HPE 5130 48 ports switch, HP JH326A, HPE JH326A, JH326A, HPE 5130 48G switch, JH326A in stock, JH326A access, JH326A review, JH326A manual, JH326A datasheet, HPE JH326A 5130, JH326A 5130, JH326A 5130 48G, JH326A switch, JH326A ports, JH326A rack


Detailed Specifications

HPE JH326A 5130 48G 1-slot HI - switch - 48 ports - managed - rack-mountable

Overview JH326A:

The HPE JH326A FlexNetwork 5130 HI Switch Series delivers scalability and resiliency at the access layer of medium and large enterprise campus networks. This FlexNetwork switch supports enterprise class QoS and security, HPE JH326A Intelligent Resilient Framework (IRF) stacking, static Layer 3 routing and RIP, dual redundant power supplies, fixed and modular 10GbE uplinks ports, PoE+, ACLs, IPv6 and delivers energy savings with Energy Efficient Ethernet. The 5130 HI Switch Series can be managed with HPE JH326A Intelligent Management Center (IMC) Software for a single view of your entire network.

Product Features JH326A JH326A

  • Scalable and Resilient Access Layer Switches
    The HPE JH326A FlexNetwork 5130 HI Switch Series delivers scalability and resiliency for medium and large enterprise networks. It supports stacking, dual power supplies; 10GbE uplinks; static and RIP routing; PoE+; ACLs; IPv6 and power savings.
    The HPE JH326A Intelligent Resilient Framework (IRF) virtualizes up to nine physical switches into one logical device for simpler, flatter, more agile networks.
    Offers scalable stacking and backhaul capacity with four fixed 10GbE uplinks and slots for two more 10GbE uplinks, including support for 10GBASE-T.
    Dual, redundant, JH326A hot-swappable power supplies keep your network up and running and deliver up to 1440 Watts of PoE+ for powered cameras, phones and wireless access points.
    No software licensing required.
  • Improved Quality of Service (Q0S) with Traffic Management
    The HPE JH326A FlexNetwork 5130 HI Switch Series supports advanced classifier-based QoS which groups traffic using multiple match criteria based on Layer 2 and 3 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or whole switch.
    Provides traffic prioritization with supported congestion actions include: strict priority (SP) queuing, weighted round robin (WRR), weighted random early detection (WRED), and SP+WRR and traffic policing with Committed Access Rate (CAR) and line rate.
    Reduce unwanted network traffic with broadcast control allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic.
  • Comprehensive Security Control
    The HPE JH326A FlexNetwork 5130 HI Switch Series supports flexible authentication methods including 802.1X and MAC Authentication for greater policy-driven application security. Per-user access control lists (ACLs) provide identity-driven security and access control.
    ACLs provide IP Layer 2 to Layer 4 traffic filtering and support global ACL, VLAN ACL, port ACL, and IPv6 ACL.
    Security with encryption of all access methods (CLI, GUI, or MIB) through SSHv2, SSL, and/or SNMPv3, and other features including DHCP protection, IP source guard, dynamic ARP protection and RADIUS/HWTACAS.
    Supports industry-standard MACsec for greater end-point or switch-to-switch security.
  • Single View of the Network
    The HPE JH326A FlexNetwork 5130 HI Switch Series can be seamlessly managed with HPE JH326A Intelligent Management Center (IMC) Software to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
    RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.

Technical Specifications JH326A

Main Features JH326A

  • Switch
  • managed
  • 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
  • rack-mountable
  • PoE+ (1440 W)
  • Capacity

  • IPv4 routing table entries
  • 32768
  • IPv6 routing table entries
  • 16384
  • Simultaneous VLANs
  • 4094
  • Chassis

  • 1
  • 1
  • Dimensions & Weight

  • 18.1 in
  • 1.7 in
  • 27.56 lbs
  • 17.3 in
  • Environmental Parameters

  • 10 - 90% (non-condensing)
  • 5 - 95% (non-condensing)
  • 113 °F
  • 158 °F
  • 23 °F
  • -40 °F
  • Flash Memory

  • 512 MB
  • Header

  • HPE
  • PC
  • Aruba Instant AP
  • 5130 48G PoE+ 4SFP+ 1-slot HI
  • 1
  • HPE
  • Interface Provided

  • RJ-45
  • 48
  • 1000Base-T
  • SFP+
  • 4
  • 10Gbit LAN
  • 1
  • Serial (console)
  • Management (LAN)
  • USB 2.0
  • Miscellaneous

  • HWTACACS, RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS, TACACS+
  • Black
  • ANSI C63.4-2009, AS/NZS 60950-1, CAN/CSA C22.2 No. 60950-1, CISPR 24:2010, EN 300 386 V1.6.1, EN 55022:2010 Class A, EN 60825-1, EN 60825-2, EN 60950-1, EN 61000-3-2, EN 61000-3-3:2008, EN 61000-4-11:2004, EN 61000-4-4:2012, EN 61000-4-5:2006, EN 61000-4-6:2009, FCC CFR47 Part 15 A, GB 4943, IEC 60950-1, RoHS, UL 60950-1, VCCI, VCCI V-3/2013.04 Class A
  • SSL
  • 1
  • Networking

  • IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1ak, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
  • Access Control List (ACL) support, ARP support, Auto-uplink (auto MDI/MDI-X), Committed Access Rate (CAR), Device Link Detection Protocol (DLDP) support, DHCP protection, DHCP server, DHCP support, Dynamic ARP protection, Equal-Cost Multipath (ECMP), Flow control, Generic Attribute Registration Protocol (GARP), Intelligent Resilient Framework Technology (IRF), IP source guard, IPv4 support, IPv6 support, LLDP support, Multiple Spanning Tree Protocol (MSTP) support, Non blocking ports, OpenFlow support, Port Aggregation Protocol (PAgP) support, Port isolation, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, sFlow, Smart Link Pass-Through, Spanning Tree Protocol (STP) support, STP Root Guard, Strict Priority (SP), Syslog support, Virtual Route Redundancy Protocol (VRRP) support, VLAN support, Weighted Round Robin (WRR) queuing
  • Rack-mountable
  • 9KB
  • Yes
  • 1440 W
  • 48
  • PoE+
  • CLI, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SCP, SNMP 1, SNMP 2c, SNMP 3, SSH-2, Telnet, TFTP
  • Stackable
  • Network hubs and switches
  • Gigabit Ethernet
  • Switch
  • Performance

  • Routing/switching capacity
  • 256 Gbps
  • Throughput
  • Up to 190.5 Mpps
  • Ports

  • 48
  • 10/100/1000 (PoE+)
  • Ports (2nd)

  • 4
  • 10 Gigabit SFP+
  • Power Device

  • 50/60 Hz
  • 0
  • 2
  • AC 120/230 V
  • 670 Watt
  • Optional
  • 1+1 (with optional power supply)
  • Internal power supply
  • RAM

  • 2 GB
  • Slot Provided

  • 1
  • 1
  • Expansion slot
