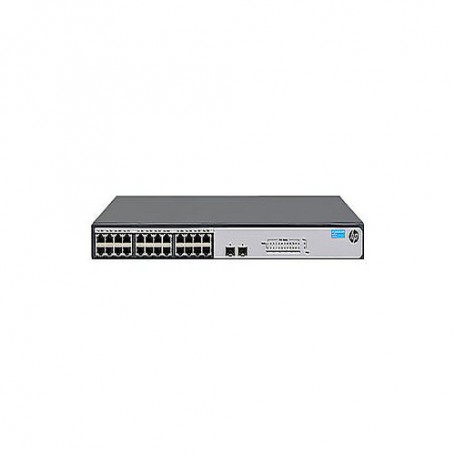

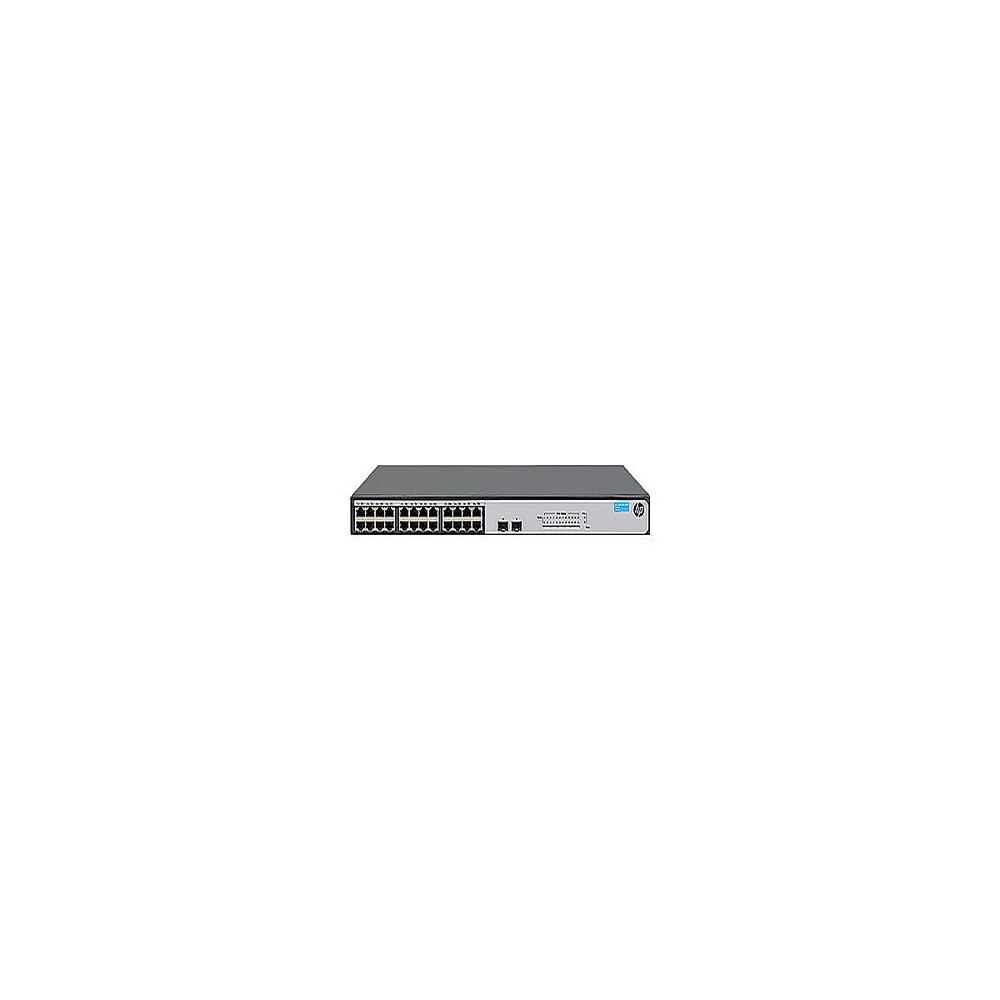

HPE 1420-24G-2SFP Switch - switch - 24 ports - unmanaged - rack-mountable View larger

HPE JH017A 24G-2SFP Switch - switch - 24 ports - unmanaged

JH017A

New

In Stock

HPE JH017A 24G-2SFP Switch - switch - 24 ports - unmanaged

×




HP, HPE 1420 switch, HPE JH017A ABA, HP JH017A ABA, JH017A ABA, JH017A, HPE JH017A, HP JH017A, HPE 1420-24G-2SFP Switch, HPE 1420-24ports-2SFP Switch, JH017A access, JH017A review, JH017A manual, JH017A datasheet, HPE JH017A 24G, JH017A 24G-2SFP, JH017A switch

$165.00

Detailed Specifications

HPE JH017A 1420-24G-2SFP Switch - switch - 24 ports - unmanaged - rack-mountable

The HPE JH017A OfficeConnect 1420 Switch Series delivers cost effective gigabit Ethernet (1GbE) connectivity offering small businesses 10 times the performance of Fast Ethernet with unmanaged plug-and-play simplicity. The series includes nine models, all with gigabit performance and a choice of key features including PoE+ for powering IP devices, JH017A Fiber and 10G uplinks for connectivity to servers and storage. All models support silent fanless operation, automated features for hands off operation and low power consumption. They come with a limited lifetime warranty and 24X7 phone support for 90 days.

Technical Specifications JH017A

Main Features JH017A

  • Switch
  • unmanaged
  • 24 x 10/100/1000 + 2 x 1 Gigabit Ethernet SFP+
  • desktop
  • rack-mountable
  • Dimensions & Weight JH017A

  • 6.8 in
  • 1.7 in
  • 4.85 lbs
  • 17.3 in
  • Environmental Parameters JH017A

  • 5 - 95% (non-condensing)
  • 5 - 95% (non-condensing)
  • 104 °F
  • 158 °F
  • 32 °F
  • -40 °F
  • Flash Memory JH017A

  • 1 MB
  • Header JH017A

  • HPE
  • PC
  • United States
  • English
  • Aruba Instant AP
  • 1420-24G-2SFP Switch
  • 1
  • HPE
  • Interface Provided JH017A

  • RJ-45
  • 24
  • 1000Base-T
  • SFP+
  • 2
  • Gigabit LAN
  • Miscellaneous JH017A

  • Black, Gray
  • CISPR 22, CISPR 24, CSA 22.2 No. 60950, EN 60950-1, EN55022, EN55024, FCC Part 15 B Class A, IEC 60950-1, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, UL 60950-1
  • 1
  • 126.1 year(s)
  • Networking JH017A

  • IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
  • 512KB packet buffer, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), DiffServ Code Point (DSCP) support, Fanless, Flow control, Full duplex mode, Half duplex mode, Quality of Service (QoS)
  • Desktop, Rack-mountable
  • 9216 bytes
  • 8192 entries
  • No
  • 24
  • Network hubs and switches
  • Gigabit Ethernet
  • Switch
  • Performance JH017A

  • Switching capacity
  • 52 Gbps
  • Throughput (64-byte packet size)
  • Up to 38.7 Mpps
  •  JH017A Ports

  • 24
  • 10/100/1000
  • Ports (2nd) JH017A

  • 2
  • 1 Gigabit Ethernet SFP+
  • Service JH017A

  • 3 years
  • Phone consulting
  • Technical support
  • Lifetime
  • Advance parts replacement
  • Limited warranty
  • Service & Support JH017A

  • Limited lifetime warranty
  • Service & Support Details JH017A

  • Next business day
