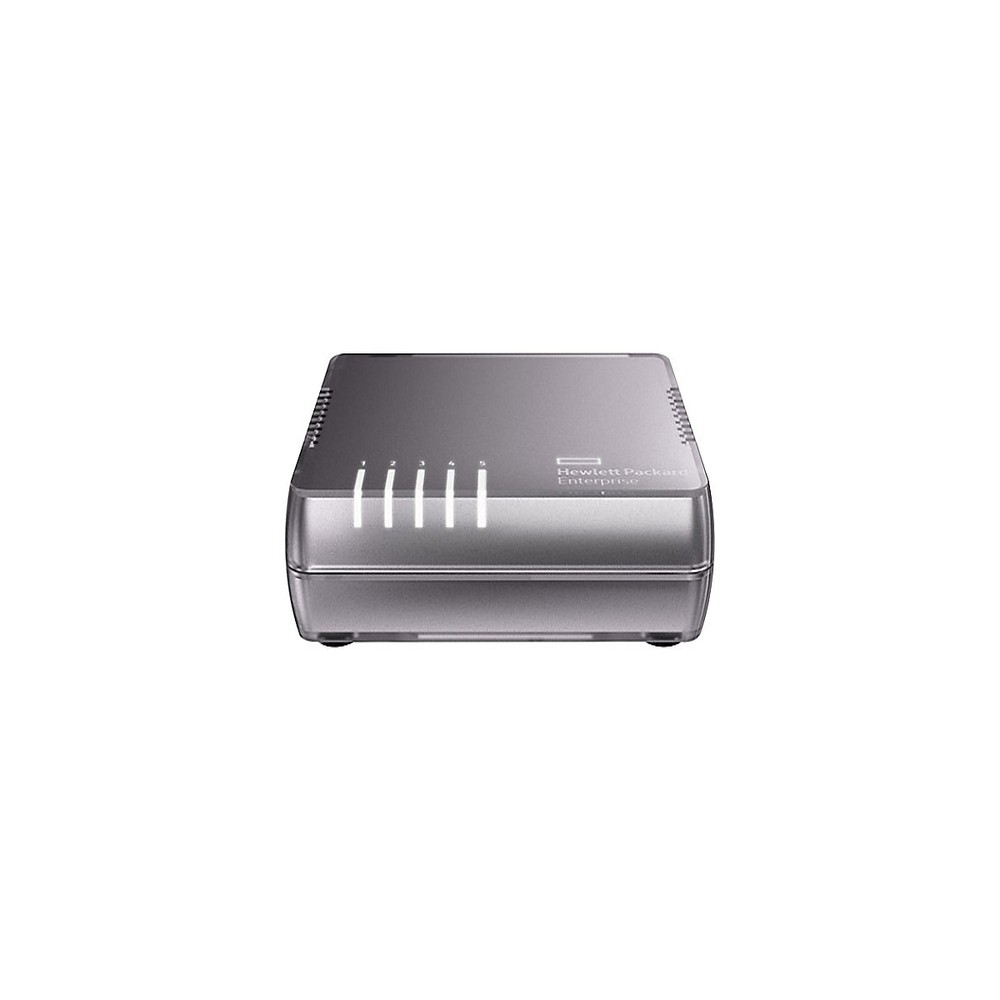

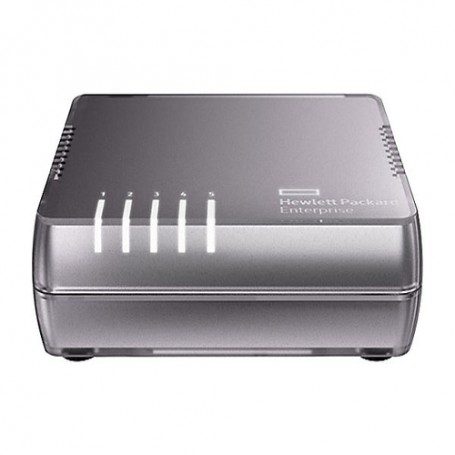

HPE OfficeConnect 1405 5G v3 - switch - 5 ports - unmanaged View larger

HPE JH407A OfficeConnect 1405 5G v3 switch 5 ports unmanaged

New

Unmanaged 5-port Gigabit switch, fan-free design
×




  • New

Detailed Specifications

HPE JH407A OfficeConnect 1405 5G v3 Switch

Overview

The HPE JH407A is an unmanaged, plug-and-play 5-port Gigabit Ethernet switch designed with small offices and edge deployments in mind. It includes 5 × 10/100/1000 Mbps RJ-45 ports with auto-negotiation and auto-MDIX, enabling quick installation without configuration or network-management overhead. Its compact and fanless design supports quiet operation, making it suitable for open office spaces, small wiring closets or remote rack units. With a throughput of up to 10 Gbps and packet buffering of 1 Mb, this unit handles everyday switching needs—such as connecting workstations, APs and IP phones—while consuming minimal power (approximately 3 W). The device integrates easily into existing network fabric, requiring no changes to routing or advanced features, and operates reliably under standard commercial conditions from 0 °C to 40 °C.

Key Features

  • 5 autosensing RJ-45 10/100/1000 Mbps ports for Gigabit connectivity.

  • Fan-free, compact desktop design enables quiet and flexible placement.

  • Plug-and-play unmanaged operation with no configuration required.

  • Energy Efficient Ethernet support and idle-port power-down for low power use.

  • Throughput up to 7.4 Mpps and switching capacity of 10 Gbps.

Technical Specifications

SpecificationValue
Brand HPE
Part Number JH407A
Product Type Unmanaged Gigabit Switch – 5-port
Number of Ports 5 × RJ-45 10/100/1000 Mbps
Switching Capacity 10 Gbps
Packet Forwarding Rate Up to 7.4 Mpps
Packet Buffer Size 1 Mb
Latency < 3 µs at 100 Mb/s; < 2.6 µs at 1 Gb/s
Dimensions (H×W×D) 1.4 in × 4.5 in × 3.6 in
Weight 0.4 lb
Power Consumption (Max) ~3 W
Operating Temperature 0 °C to 40 °C
Operating Humidity 15 %–95 % non-condensing
Auto-MDIX & Auto-Negotiation Yes
Jumbo Frame Support Up to 9,216 bytes
Warranty 3-year (as per series)
