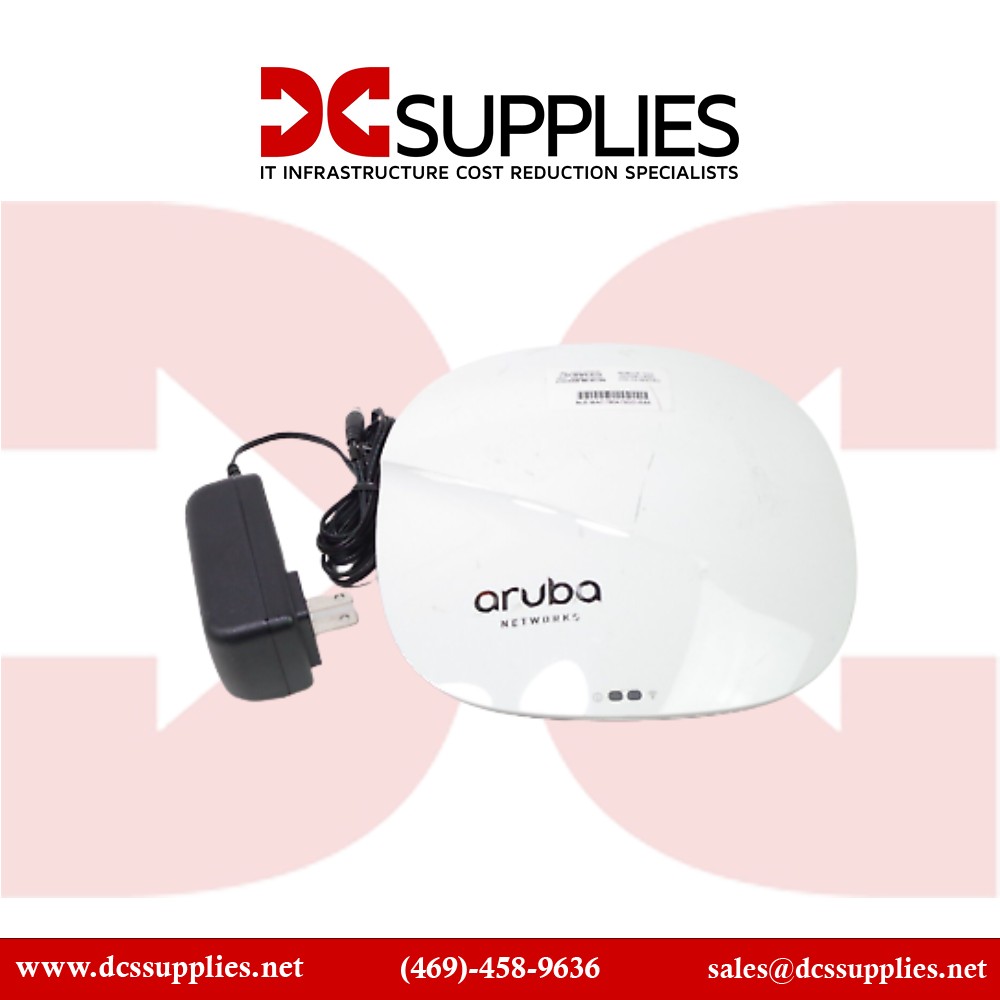

HPE Aruba JW813A Instant Wireless Access Point

New

HPE Aruba JW813A Instant Wireless Access Point

×




  • New

Detailed Specifications

HPE JW813A

Aruba 310 Series Instant Wireless Access Point

The HPE Aruba JW813A Instant Wireless Access Point is a high-performance dual-band 802.11ac Wave 2 solution designed for cost-effective wireless coverage in enterprise and high-density environments. Offering advanced MU-MIMO performance, PoE+ support, and robust security features, this access point enables reliable connectivity for a wide range of wireless devices.

Features :

Part of Aruba’s 310 Series, the JW813A delivers high throughput and excellent client capacity, leveraging 4-stream multi-user MIMO (MU-MIMO) for simultaneous data transmission to multiple devices. It operates on both 2.4 GHz and 5 GHz bands, ensuring flexible and reliable wireless coverage for laptops, smartphones, tablets, and IoT devices. Aruba’s Instant mode allows the JW813A to operate independently without a dedicated controller, making it scalable and easy to manage. Aruba’s built-in security architecture supports enterprise-level authentication and encryption to keep network traffic safe and compliant.

Advanced Options :

The access point is designed for environments such as classrooms, hotels, small-to-medium offices, and retail outlets where space and budget are limited, but performance expectations remain high. Thanks to PoE+ support, it can be powered and connected through a single Ethernet cable, simplifying deployment and reducing installation costs.

Product Key Features

  • Dual-band 802.11ac Wave 2 access point with MU-MIMO

  • Supports up to 1.3 Gbps data transfer rate

  • PoE+ compatible for flexible deployment

  • Integrated omnidirectional internal antennas

  • Enterprise-grade security with WPA/WPA2

  • Ideal for dense device environments like schools and offices


Reliability & Performance :

The JW813A is built for reliability and ease of use, with internal antennas and controller-less Instant mode for autonomous or clustered operation. It supports automatic RF management and dynamic channel allocation, enhancing performance in environments with competing signals. Its lightweight, compact design allows for wall or ceiling mounting, and its PoE+ support ensures efficient installation without the need for nearby power outlets.

Key Features :

  • 802.11ac Wave 2 dual-band wireless

  • MU-MIMO (4x4:4) performance at 5 GHz

  • Peak data rates up to 1.3 Gbps

  • Internal omnidirectional antennas

  • 1 x 10/100/1000Base-T Ethernet port

  • Supports PoE+ (802.3at)

  • WPA/WPA2, 802.1X enterprise security

  • Aruba Instant mode operation

  • Compact, ceiling/wall-mountable form factor

  • Ideal for SMBs, classrooms, retail, and hospitality

Specifications :

SpecificationDetails
Model Number JW813A
Product Name Aruba 310 Series Instant Wireless Access Point
Wireless Standard IEEE 802.11ac Wave 2
Frequency Bands Dual-band 2.4 GHz and 5 GHz
Data Transfer Rate Up to 1.3 Gbps
MIMO Technology 4×4:4 MU-MIMO at 5 GHz
Antennas Internal integrated omnidirectional
Ethernet Port 1× 10/100/1000Base-T (PoE+)
Power Options PoE+ (802.3at) compliant
Mounting Options Wall or ceiling mount
Wireless Security WPA/WPA2, 802.1X, TKIP, AES
Management Mode Aruba Instant (controller-less)
Operating Temperature 0°C to 50°C
Dimensions Approx. 183 × 183 × 41 mm
Weight Approx. 500 g
