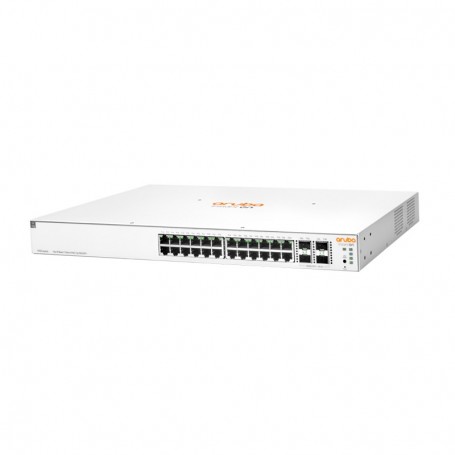

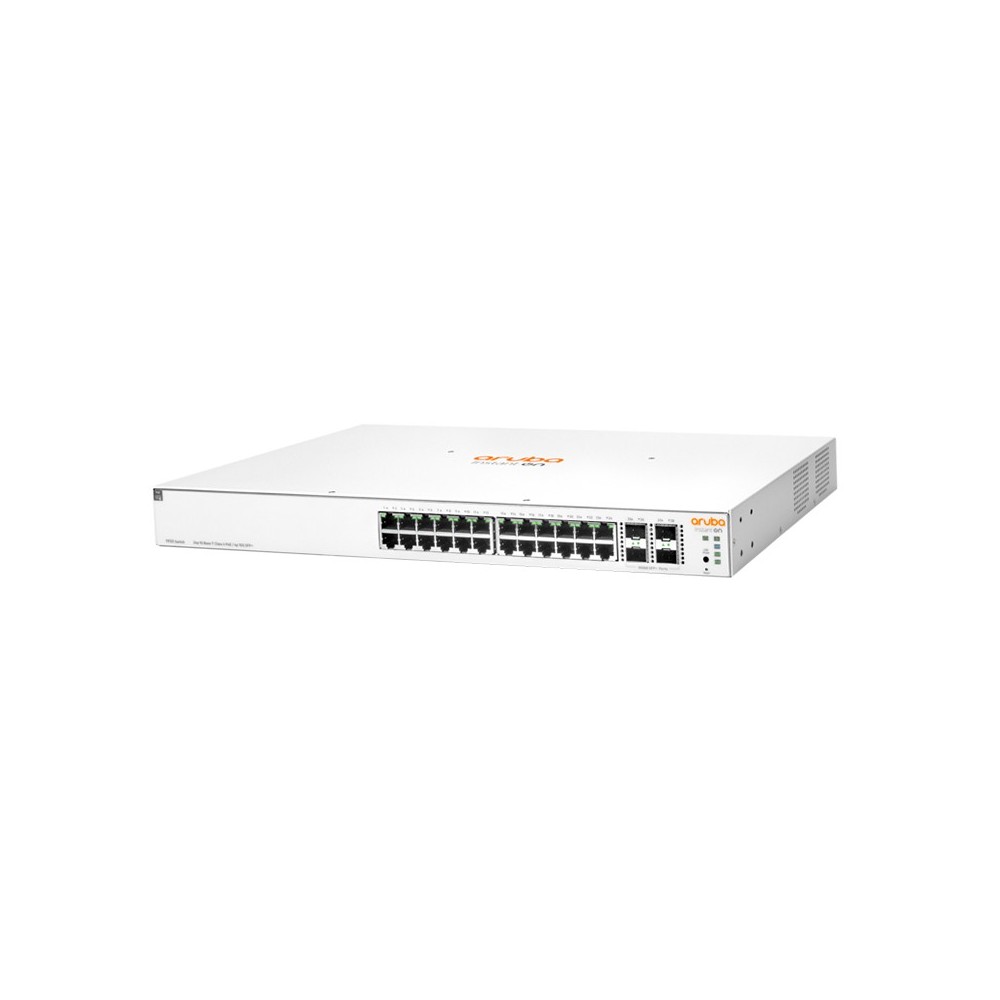

HPE Aruba JL684A Instant On 1930 24G Class4 Switch



HPE Aruba JL684A Instant On 1930 24G Class4 Switch


JL684A, HPE JL684A, ARUBA JL684A, HPE ARUBA JL684A, JL684A SWITCH, JL684A 24G, JL684A ABA, Instant JL684A, 1930 JL684A, 24G JL684A, Class JL684A, POE JL684A, 4SFP JL684A, SFP JL684A, 370W JL684A, Switch JL684A, Aruba Switch JL684A, Aruba 370W JL684A, Aruba 4SFP JL684A, Aruba SFP JL684A, Aruba Instant JL684A, Aruba POE JL684A

Detailed Specifications

HPE Aruba JL684A Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch

JL684A Overview

Aruba JL684A Instant On 1930 switches is advanced, smart-managed, fixed configuration Gigabit switches designed for small businesses and SMBs looking for high-performance networking that is easy to deploy and affordable. They're made to handle today's bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to enhance performance. This model supports JL684A 28 active ports -- 24x 10/100/1000 copper Ethernet RJ45 ports and four 1-Gigabit / 10-Gigabit SFP+ style uplink slots. Power over Ethernet both JL684A PoE and PoE+ can operate on any of its 24 JL684A RJ45 ports, with a total PoE budget of 370 Watts.

Using either the Instant On mobile app or its cloud-based web portal, you can quickly set up, monitor, and manage the 1930 Switch series from anywhere at any time. Also available is a comprehensive local web interface. Built-in security features protect your network from unauthorized access by allowing you to segment traffic and define access to each area of the network. Advanced features include VLANs, 802.1X radius-based network login, three levels of Spanning Tree protocol, and Layer 3 static routing, among others. And all of this is included in the price of the hardware - there are no hidden subscription or licensing fees. All are backed by Aruba's Limited Lifetime Warranty JL684A.

Hpe Jl684a Aruba Instant On 1930 24g Class4 Poe 4sfp/sfp+ 370w Switch - Switch - 28 Ports - Managed - Rack-mountable.

JL684A Key Features :

  • Device Type: JL684A Switch - 28 Ports - L3 - Managed
  • Enclosure Type: Rack-mountable 1u JL684A
  • Subtype: Gigabit Ethernet JL684A
  • Ports: 24 X 10/100/1000 (poe) + 4 X 1 Gigabit / 10 Gigabit Sfp+
  • Power Over Ethernet (PoE): Poe
  • Poe Budget: 370 W JL684A
  • Performance:
  • Switching Capacity: 128 Gbps ¦ Throughput: 95.23 Mpps ¦ Latency (1 Gbps): 2.4 Μs ¦ Latency (10 Gbps): 1.3 Μs
  • Capacity: Link Aggregation Ports: 8 ¦ Ipv4 Routes (static): 32 ¦ Vlans Supported: 256 ¦ Access Control Entries (aces) Per Acl: 480 ¦ Packet Buffer
  • Size: 1.5 Mb
  • Mac Address Table Size: 16000 Entries
  • Jumbo Frame Support: 9216 Bytes
  • Routing Protocol: Static Ip Routing
  • Remote Management Protocol: SNMP 1, Rmon, Snmp 3, Snmp 2c, Http, Https, Tftp, Radius
  • Encryption Algorithm: SSL
  • Authentication Method: Radius
  • Features: Flow Control, Dhcp Support, Arp Support, VLAN Support, Auto-uplink (auto MDI/mdi-x), Igmp Snooping, Ipv6 Support, Half Duplex Mode, Full Duplex Mode, Spanning Tree Protocol (STP) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (ACL) Support, Quality Of Service (QoS), Trusted Platform Module (TPM), Lldp Support, Link Aggregation Control Protocol (lap), Energy Efficient Ethernet, Class Of Service (cos), Bpdu Filter, Poe Class 4
  • Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.2af

  • Processor: 1 X Arm Cortex-a9: 800 Mhz JL684A
  • Ram: 512 Mb Sdram
  • Flash Memory: 256 Mb
  • Status Indicators: Port Status, Power, Poe

    Expansion / Connectivity:

    interfaces: JL684A

  • 24 X 10/100/1000 Base-t Rj-45 Poe - 370 W
  • 4 X 1/10gbit Lan Sfp+

    Power: JL684A
  • Power Device: Internal Power Supply JL684A
  • Voltage Required: Ac 120/230 V (50/60 Hz)
  • Power Consumption Operational: 439 Watt JL684A

JL684A Specifications

Product Name Aruba JL684A Instant On 1930 24G Class 4 PoE 4SFP+ 370W Switch
Manufacturer Part Number JL684A
Product Type Ethernet Switch JL684A
Manageable Yes
Ethernet Technology Gigabit Ethernet JL684A

10 Gigabit Ethernet

Number of Total Expansion Slots 4
Media Type Supported Optical Fiber

Twisted Pair

Total Number of Network Ports 28 JL684A
PoE (RJ-45) Port Yes
Expansion Slot Type SFP+ JL684A
Layer Supported 3
Number of SFP+ Slots 4 JL684A
Modular Yes
Uplink Port Yes
Shared SFP Slot No
Port / Expansion Slot Details 24 x Gigabit Ethernet PoE+ JL684A

4 x 10 Gigabit Ethernet Expansion Slot

PoE Budget 370 W JL684A
Network Technology 1000Base-T


Limited Warranty Lifetime JL684A
