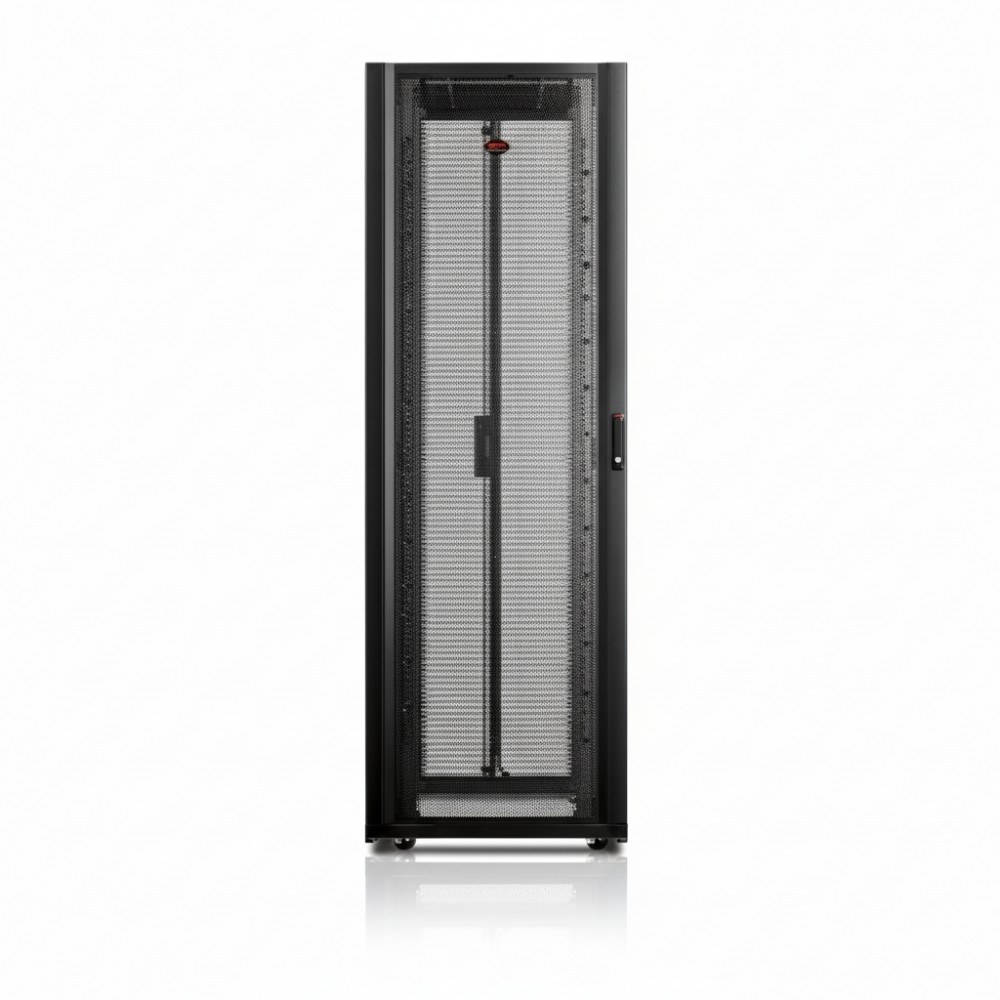

APC AR3347 NetShelter SX 48U Networking Rack Enclosure with Sides -Blk View larger

APC AR3347 NetShelter SX 48U Networking Rack Enclosure with Sides -Blk

AR3347

New

In Stock

48U steel networking rack enclosure
×




$4,472.00

Detailed Specifications

APC AR3347 NetShelter SX 48U Networking Enclosure

Overview

The APC AR3347 is a 48U NetShelter SX network enclosure designed for high-density networking, storage, and server applications. Built from heavy-duty steel with side-to-side airflow management, it supports large core switches and structured cabling environments. The cabinet includes integrated vertical cable organizers, adjustable mounting rails, and lockable doors for secure equipment housing. Ideal for enterprise data centers, telecom rooms, and core network areas, the AR3347 supports APC accessories for optimized airflow and power distribution management.

Key Features

  • 48U enclosure for network and server gear

  • Side airflow and integrated cable management

  • Adjustable mounting rails for varied depths

  • Static load support up to 3,750 lb

  • Lockable doors and removable side panels

Technical Specifications

AttributeSpecification
Brand APC by Schneider Electric
Part Number AR3347
Product Type Networking Rack Enclosure
Rack Units 48U
Height 88.90 in (2258 mm)
Width 29.53 in (750 mm)
Depth 47.24 in (1200 mm)
Net Weight 408.85 lb (185.45 kg)
Maximum Mounting Depth 37.75 in (958.9 mm)
Minimum Mounting Depth 11.00 in (279 mm)
Static Load Rating 3,750 lb (1700.97 kg)
Dynamic Load Rating 2,250 lb (1020.6 kg)
Frame Construction Welded steel frame
Mounting Rail Material 14-gauge steel
Door Panels Perforated front and rear
Warranty 5-year repair or replace
