Overview

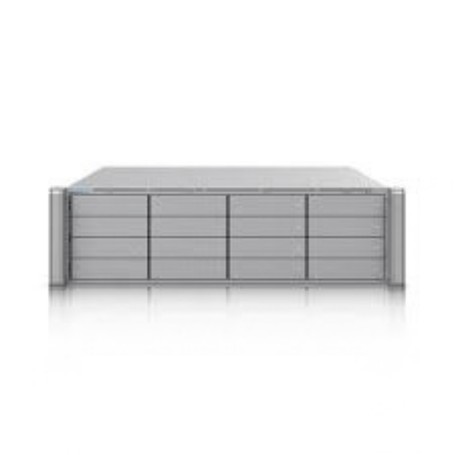

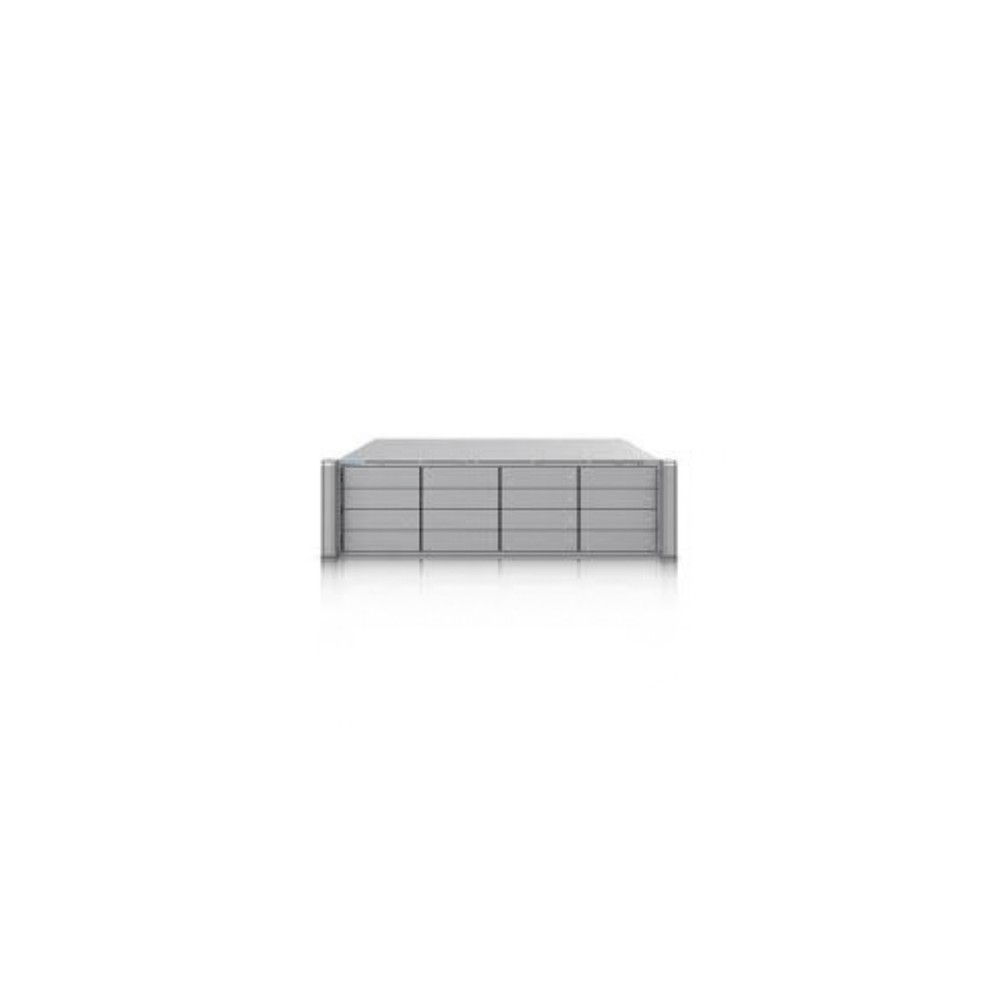

The Ubiquiti ENVR-Core is a 3U enterprise network video recorder designed for large-scale UniFi Protect deployments. It provides 16 drive bays for 2.5-inch and 3.5-inch HDDs or SSDs, dual 25G SFP28 networking, redundant hot-swappable power supplies, and support for up to 300 4K cameras.
Enterprise Video Recording
ENVR-Core supports up to 500 HD, 400 2K, or 300 4K managed cameras. Its 16 internal drive bays provide high-capacity storage, while two SFF-8644 expansion ports allow the storage configuration to scale to as many as 48 total HDDs or SSDs when compatible expansion hardware is used.
High-Speed Networking
The recorder provides two 25G SFP28 ports supporting 25G, 10G, and 1G connectivity, plus a dedicated Gigabit Ethernet management port supporting 1G and 100M connections. The separate management interface provides out-of-band system management.
Redundant Power and Data Protection
Two hot-swappable 550W CRPS power supplies provide redundant AC power operation. The system supports configurable RAID storage protection and includes dedicated hardware for enterprise video recording and storage management.
UniFi Application Support
ENVR-Core supports UniFi Protect, UniFi Access, and UniFi Connect. It can be managed through Ethernet or Bluetooth and provides a platform for large-scale video surveillance and compatible UniFi security applications.
Key Features
- 3U enterprise NVR with 16 internal 2.5-inch/3.5-inch drive bays
- Supports up to 300 4K, 400 2K, or 500 HD cameras
- 2 × 25G SFP28 ports plus dedicated GbE management port
- 2 × hot-swappable 550W redundant power supplies
- 2 × SFF-8644 expansion ports supporting up to 48 total drives
Applications
ENVR-Core is suited to enterprise surveillance deployments, large commercial properties, campuses, multi-building security systems, and other UniFi environments requiring high camera capacity, scalable storage, high-speed networking, and redundant power.
DC Supplies Product Note
ENVR-Core is a storage-focused enterprise NVR with 16 drive bays, but storage drives are not assumed to be included unless specifically stated by the supplied configuration. When planning the installation, consider the required drive capacity, RAID configuration, rack space, and available AC power.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | ENVR-Core |
|---|
| Product Type | Enterprise Network Video Recorder |
|---|
| Form Factor | 3U Rack Mount |
|---|
| Managed HD Cameras | Up to 500 |
|---|
| Managed 2K Cameras | Up to 400 |
|---|
| Managed 4K Cameras | Up to 300 |
|---|
| Drive Bays | 16 × 2.5-inch/3.5-inch HDD or SSD |
|---|
| Storage Expansion | 2 × SFF-8644 ports; up to 48 total drives |
|---|
| Networking | 2 × 25G SFP28; 1 × GbE management RJ45 |
|---|
| 25G SFP28 Speeds | 25G / 10G / 1G |
|---|
| Management Port Speeds | 1G / 100M |
|---|
| Processor | 128-core Arm v8.2 at 2.6 GHz |
|---|
| Memory | 64 GB |
|---|
| Maximum Drive Power Budget | 313W |
|---|
| Maximum Power Consumption | 237W |
|---|
| Power Supply | 2 × hot-swappable 550W CRPS |
|---|
| AC Input | 100–240V AC, 7A maximum, 50/60Hz |
|---|
| Power Redundancy | Yes |
|---|
| Dimensions | 481.4 × 550 × 132 mm |
|---|
| Weight | 20.5 kg without rails; 23.4 kg with rails |
|---|
| Enclosure Material | SGCC steel |
|---|
| Operating Temperature | 10°C to 35°C |
|---|
| Operating Humidity | 20–90% non-condensing |
|---|
| Supported Applications | UniFi Protect, UniFi Access, UniFi Connect |
|---|
| NDAA Compliant | Yes |
|---|
| Certifications | CE, FCC, IC |
|---|
FAQs
How many cameras can the ENVR-Core manage?
It supports up to 500 HD, 400 2K, or 300 4K cameras, depending on camera resolution and system configuration.
How many drives can the ENVR-Core hold?
The system has 16 internal 2.5-inch/3.5-inch drive bays. With supported storage expansion, the system can scale to up to 48 total drives.
Does the ENVR-Core support 25G networking?
Yes. It provides two 25G SFP28 ports supporting 25G, 10G, and 1G operation.
Does it have redundant power supplies?
Yes. ENVR-Core uses two hot-swappable 550W CRPS power supplies for redundant power operation.
What UniFi applications are supported?
The ENVR-Core supports UniFi Protect, UniFi Access, and UniFi Connect.
