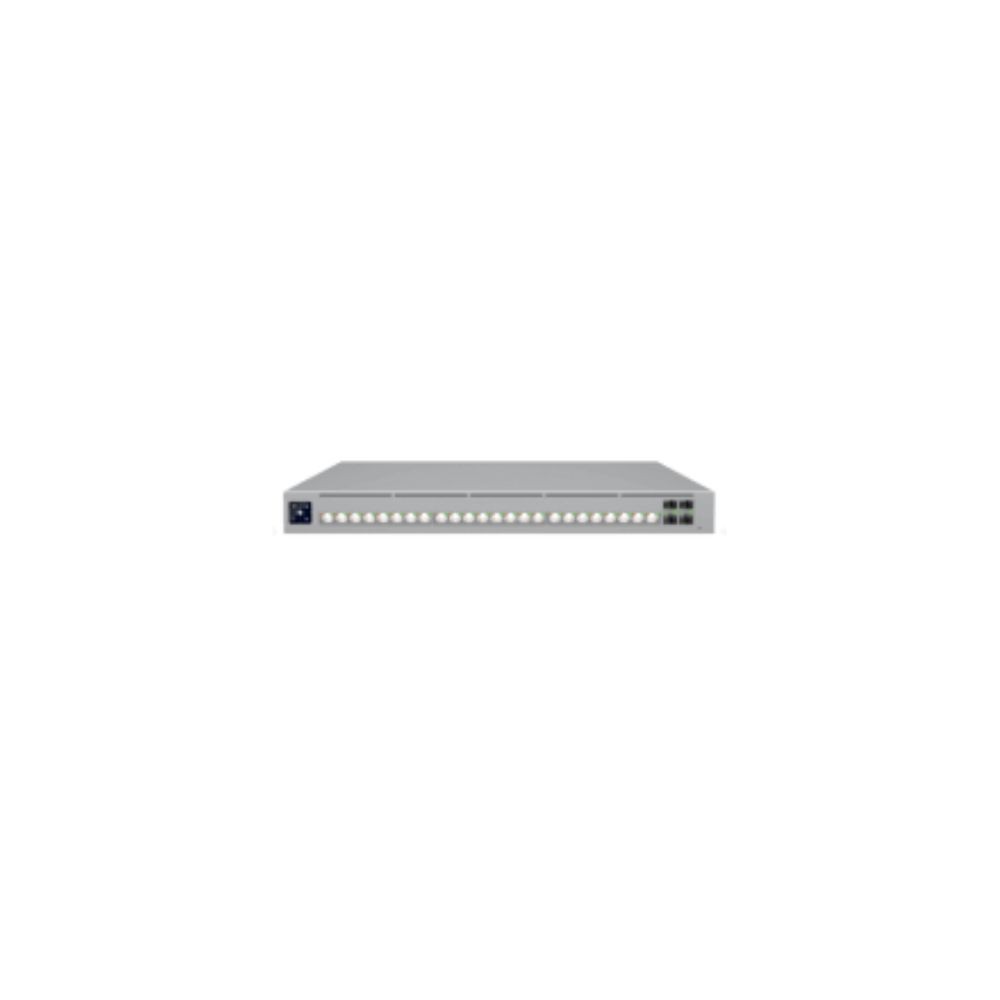

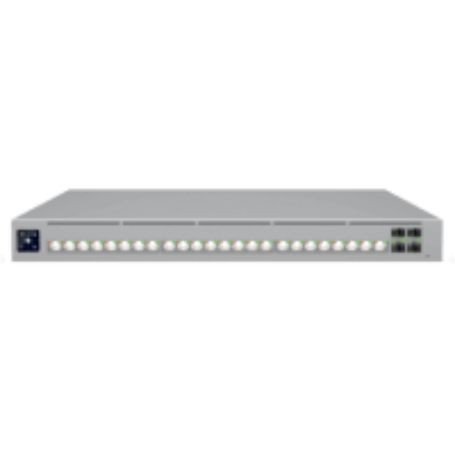

Ubiquiti ECS-48S-POE – Enterprise Campus 48S 48-Port PoE+++ Layer 3 Switch
Overview
The Ubiquiti ECS-48S-POE is a 1U full-depth UniFi Enterprise Campus Layer 3 switch designed for high-density access and aggregation deployments. It provides 48 PoE+++ Ethernet ports across 32 multi-gigabit 2.5GbE ports and 16 multi-gigabit 10GbE ports, together with 25G SFP28 and 100G QSFP28 uplink interfaces.
The switch supports Layer 3 networking, switch stacking, Etherlighting™, redundant hot-swappable power supplies, and hot-swappable fan modules. Its high-capacity PoE architecture supports up to 90W per PoE+++ port for compatible powered devices.
Technical Information
The ECS-48S-POE provides 680Gbps switching capacity, 340Gbps total non-blocking throughput, and a 506Mpps forwarding rate. The switching platform supports up to 1,000 VLANs, a 32,000-entry MAC address table, 512 IPv4 static routes, and an 8MB packet buffer.
All 48 RJ45 ports support PoE+++ with negotiated power levels up to 90W per port. The switch uses two hot-swappable 1,200W AC/DC power modules and four hot-swappable fan modules. Total PoE availability is dependent on input voltage and power configuration, with up to 2,150W available in 200–240V shared mode.
Compatibility
The ECS-48S-POE is managed through UniFi Network and requires UniFi Network version 10.6.101 or later according to Ubiquiti's current technical specifications. Its Ethernet ports support multiple link speeds, while the SFP28 and QSFP28 interfaces provide higher-speed fiber or direct-attach connectivity when compatible transceivers or cables are used.
For rack installation, Ubiquiti specifies a 19-inch four-post rack with post depths from 650 to 1,000mm. Ubiquiti also notes that a 4-post rack, or appropriate center-mount bracket or cantilever shelf support, should be used for two-post rack installations.
Key Features
- 32 × 2.5GbE RJ45 and 16 × 10GbE RJ45 PoE+++ ports
- 4 × 25G SFP28 and 2 × 100G QSFP28 interfaces
- 680Gbps switching capacity and 340Gbps non-blocking throughput
- Two hot-swappable 1,200W power modules with redundant operation
- Four hot-swappable fan modules and UniFi switch stacking support
Applications
The ECS-48S-POE is suited to enterprise campus access, high-density PoE deployments, WiFi 7 access-point infrastructure, surveillance networks, AV systems, and other environments requiring multi-gigabit access with high-capacity uplinks.
Its 10GbE PoE+++ ports can provide high-bandwidth wired connectivity and up to 90W of power to compatible devices, while the 25G SFP28 and 100G QSFP28 interfaces support high-speed network uplinks and inter-switch connectivity.
DC Supplies Product Note
When sizing the ECS-48S-POE, distinguish between the switch's 250W maximum consumption excluding PoE output and its maximum 2,400W consumption including PoE output. Available PoE capacity also changes according to AC input voltage and whether the two power modules operate in shared or redundant mode.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | ECS-48S-POE |
| Product Type | Enterprise Campus Layer 3 PoE+++ Switch |
| 2.5GbE RJ45 | 32, all PoE+++; 2.5G/1G/100M/10M |
| 10GbE RJ45 | 16, all PoE+++; 10G/5G/2.5G/1G/100M/10M |
| 25G SFP28 | 4; 25G/10G/1G |
| 100G QSFP28 | 2 |
| Console | 1 |
| Switching Capacity | 680Gbps |
| Total Non-Blocking Throughput | 340Gbps |
| Forwarding Rate | 506Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table | 32,000 |
| IPv4 Static Routes | 512 |
| Packet Buffer | 8MB |
| PoE Ports | 48 |
| Maximum PoE Per Port | 90W PoE+++ |
| Total PoE Availability | 2,150W at 200–240V shared mode; 1,750W at 100–120V shared mode; 950W at 200–240V redundant mode; 750W at 100–120V redundant mode |
| Power Supplies | 2 × hot-swappable AC/DC 1,200W modules |
| Fans | 4 × hot-swappable fan modules |
| Power Input | 2 × universal 100–240V AC, 50/60Hz |
| Maximum Power Consumption | 250W excluding PoE output; 2,400W including PoE output |
| Form Factor | 1U full-depth rack mount |
| Dimensions | 442.4 × 44 × 496mm |
| Weight | 9.5kg without mounting brackets; 9.6kg with mounting brackets |
| Enclosure Material | SGCC steel |
| Supported Rack | 19-inch four-post racks; 650–1,000mm post depth |
| Display | 1.3-inch touchscreen |
| Operating Temperature | -5 to 40°C |
| Operating Humidity | 10–90% noncondensing |
| Management | Ethernet OOB management port and serial console |
| Software Requirement | UniFi Network 10.6.101 or later |
| Compliance | NDAA |
| Certifications | CE, FCC, IC |
FAQs
How many PoE ports does the ECS-48S-POE have?
The switch has 48 PoE+++ RJ45 ports: 32 ports at 2.5GbE and 16 ports at 10GbE.
What uplink interfaces are available?
The ECS-48S-POE provides four 25G SFP28 ports and two 100G QSFP28 ports.
What is the maximum PoE output per port?
Each PoE+++ port can provide up to 90W when the connected device and power configuration support that level.
Does the switch support redundant power?
Yes. It uses two hot-swappable 1,200W AC/DC power modules and supports shared and redundant operating configurations.
Does the ECS-48S-POE support stacking?
Yes. Switch stacking and cross-stack LAG are supported.
What rack depth is required?
Ubiquiti specifies 19-inch four-post racks with post depths from 650 to 1,000mm.
