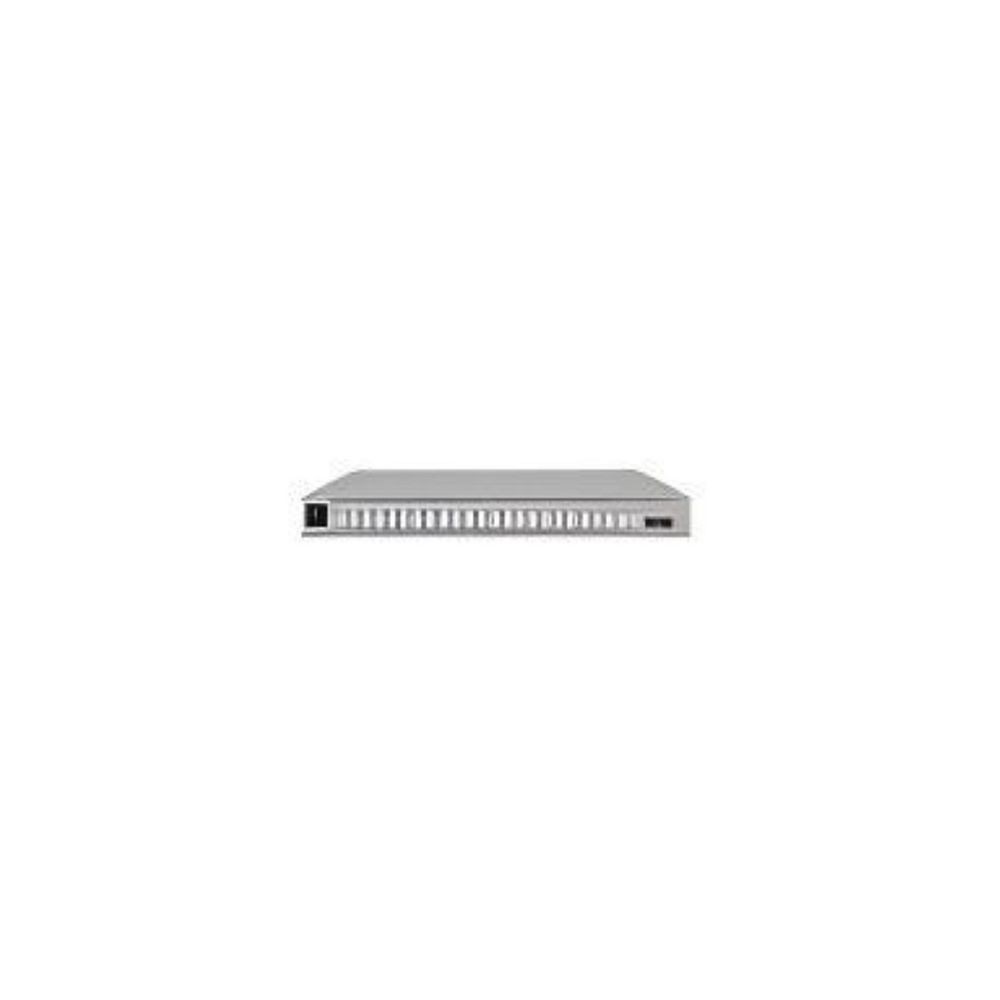

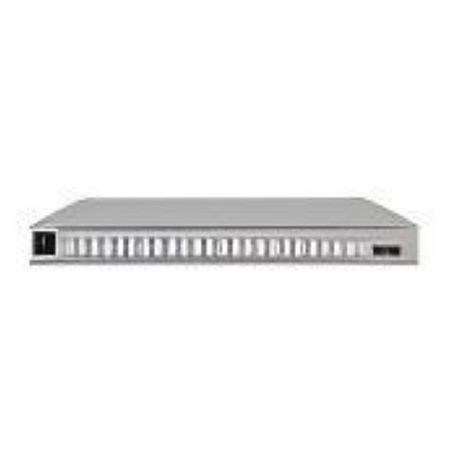

Ubiquiti USW-Pro-XG-24 24-Port 10G/2.5G Layer 3 Etherlighting Switch
Overview
The Ubiquiti USW-Pro-XG-24 is a 24-port Layer 3 managed switch designed for high-density enterprise network deployments. It combines 16 multi-gigabit 10GbE RJ45 ports, 8 2.5GbE RJ45 ports, and 2 25G SFP28 ports in a 1U rack-mount chassis.
Port Connectivity
The switch provides 16 RJ45 ports supporting 10G, 5G, 2.5G, 1G, 100M, and 10M operation, plus 8 RJ45 ports supporting 2.5G, 1G, 100M, and 10M. Two SFP28 ports support 25G, 10G, and 1G connections for high-speed uplinks.
Switching and Layer 3
The USW-Pro-XG-24 provides 460 Gbps switching capacity, 230 Gbps total non-blocking throughput, and a 342 Mpps forwarding rate. Layer 3 functions include local DHCP server, DHCP relay, inter-VLAN routing, and static routing. The switch supports up to 1,000 VLANs, 32,000 MAC addresses, and 512 IPv4 static routes.
Management and Protection
The switch supports Etherlighting™, LACP, STP and RSTP, IGMP snooping, 802.1X control, DHCP snooping and guarding, access control lists, port isolation, port mirroring, storm control, multicast and broadcast rate limiting, jumbo frames, LLDP-MED, voice VLAN, and loop protection. Management requires UniFi Network version 9.0.114 or later.
Key Features
- 16 × 10GbE and 8 × 2.5GbE RJ45 ports
- 2 × 25G/10G/1G SFP28 ports
- 460 Gbps switching capacity and 230 Gbps non-blocking throughput
- Layer 3 inter-VLAN routing, DHCP relay, and static routing
- 1U rack-mount chassis with Etherlighting™ and USP RPS DC backup input
Applications
The USW-Pro-XG-24 is intended for enterprise access, aggregation, and high-bandwidth rack deployments requiring multi-gigabit Ethernet and 25G uplink connectivity. It can be deployed where Layer 3 switching, VLAN segmentation, high-density RJ45 connectivity, and fiber uplinks are required.
DC Supplies Product Note
Confirm rack depth, AC power availability, SFP28 transceiver or direct-attach cable requirements, and UniFi Network software compatibility before deployment. The switch supports a USP RPS DC input for power backup and has a maximum power consumption of 160W.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | USW-Pro-XG-24 |
| Product Type | 24-Port Layer 3 Managed Switch |
| 2.5 GbE RJ45 Ports | 8 (2.5G/1G/100M/10M) |
| 10 GbE RJ45 Ports | 16 (10G/5G/2.5G/1G/100M/10M) |
| 25G SFP28 Ports | 2 (25G/10G/1G) |
| Switching Capacity | 460 Gbps |
| Total Non-Blocking Throughput | 230 Gbps |
| Forwarding Rate | 342 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table | 32,000 |
| IPv4 Static Routes | 512 |
| Packet Buffer | 4 MB |
| Layer 3 Features | DHCP Server, DHCP Relay, Inter-VLAN Routing, Static Routing |
| Redundancy | USP RPS DC Power Backup |
| Form Factor | Rack mount, 1U |
| Maximum Power Consumption | 160W |
| Power Supply | Internal AC/DC, 200W |
| Power Input | 100–240V AC, 50/60 Hz |
| Dimensions | 442 × 325 × 44 mm (17.4 × 12.8 × 1.7") |
| Weight | 5.2 kg without mounting brackets; 5.3 kg with mounting brackets |
| Enclosure Material | SGCC steel |
| LCM Display | 1.3" touchscreen |
| Operating Temperature | -5 to 40°C (23 to 104°F) |
| Operating Humidity | 10 to 90% noncondensing |
| UniFi Network Requirement | Version 9.0.114 or later |
| NDAA Compliant | Yes |
Frequently Asked Questions
What is the Ubiquiti USW-Pro-XG-24?
It is a 24-port Layer 3 managed switch with 16 10GbE ports, 8 2.5GbE ports, and two 25G SFP28 ports.
Does the USW-Pro-XG-24 support 25G uplinks?
Yes. It has two SFP28 ports supporting 25G, 10G, and 1G connections.
What is the switching capacity?
The specified switching capacity is 460 Gbps, with 230 Gbps of total non-blocking throughput.
Does the switch support Layer 3 routing?
Yes. Supported Layer 3 functions include DHCP server, DHCP relay, inter-VLAN routing, and static routing.
Does the USW-Pro-XG-24 provide PoE?
No. The USW-Pro-XG-24 is a non-PoE switch. Ubiquiti lists PoE models separately.
How much rack space does it require?
The switch is a 1U rack-mount device measuring 442 × 325 × 44 mm.
