Overview

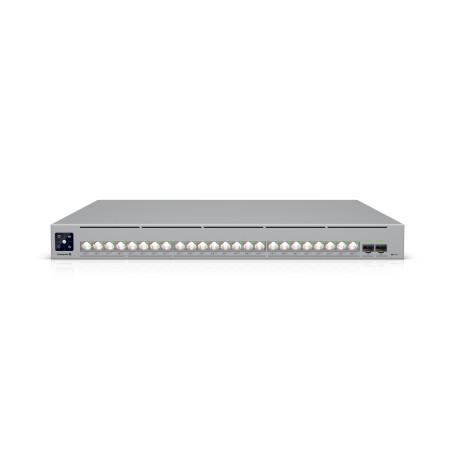

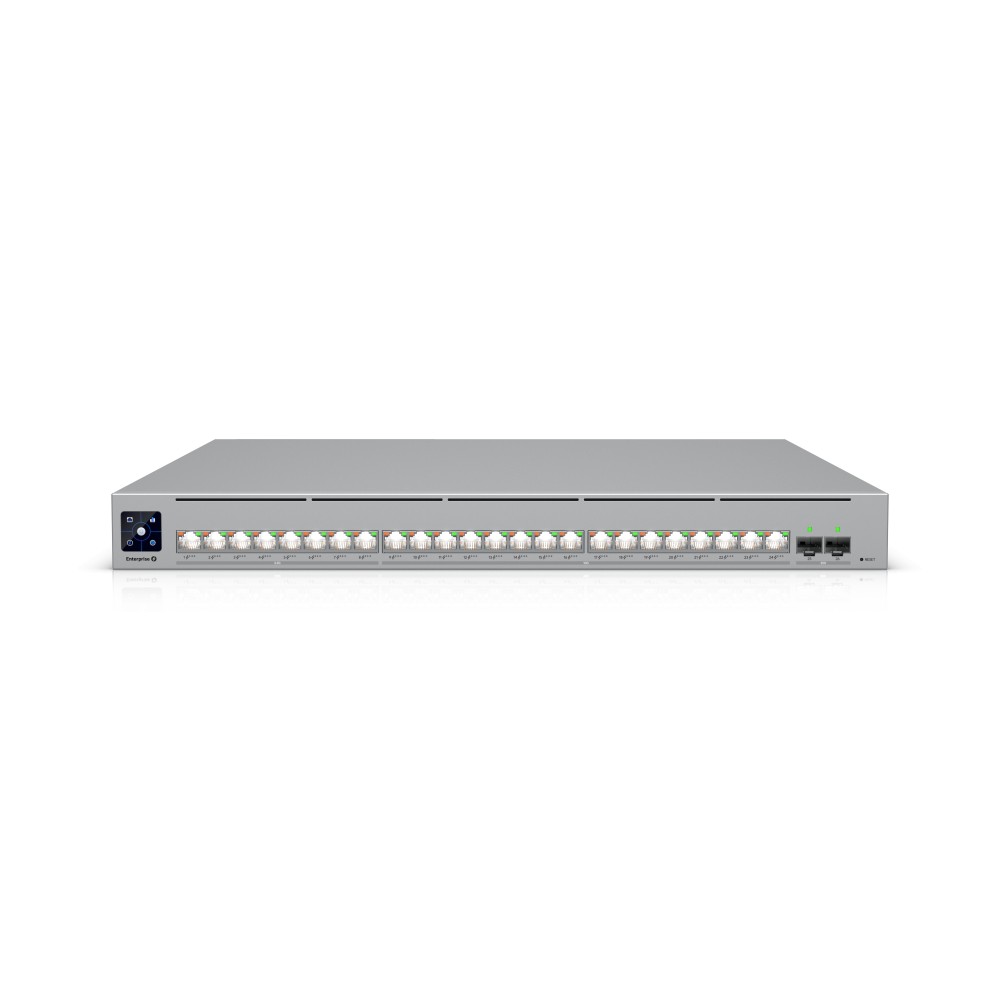

The Ubiquiti ECS-24S-PoE Enterprise Campus 24S PoE is a 1U, full-depth Layer 3 managed switch designed for high-capacity enterprise networks. It combines 24 PoE+++ Ethernet ports with 25G SFP28 and 100G QSFP28 uplinks, switch stacking, Etherlighting™, and redundant hot-swappable power and cooling modules.
Port Configuration
The switch provides 1× 1GbE RJ45 port, 8× 2.5GbE RJ45 PoE+++ ports, and 16× 10GbE RJ45 PoE+++ ports. Uplink connectivity consists of 4× 25G SFP28 ports and 2× 100G QSFP28 ports, with a dedicated console interface and out-of-band management capability.
Layer 3 Networking
Enterprise switching features include inter-VLAN routing, static routing, DHCP server and relay functions, ACLs, 802.1X control, DHCP snooping and guarding, MAC-based device isolation, and support for up to 1,000 VLANs. LACP, stacking, cross-stack LAG, STP/RSTP, QoS, and advanced IGMP functions are also supported.
PoE and Power
All 24 Ethernet ports support PoE+++, with up to 90W of PoE output per port. The available PoE budget depends on the installed power modules and input-voltage configuration, reaching up to 2,250W in 200–240V AC shared mode with two 1,200W modules. The specified 1050W configuration uses two 600W hot-swappable power modules.
Key Features
- 24 PoE+++ Ethernet ports with up to 90W per port
- 16× 10GbE RJ45 and 8× 2.5GbE RJ45 access ports
- 4× 25G SFP28 and 2× 100G QSFP28 high-speed uplinks
- Switch stacking with cross-stack LAG support
- Two hot-swappable power modules and four hot-swappable fan modules
Applications
The ECS-24S-PoE is suited to enterprise access-layer, campus, aggregation, high-density PoE, professional AV, and other network deployments requiring high-speed copper access together with 25G and 100G uplinks. Its stacking and redundant hardware support designs requiring centralized management and service continuity.
DC Supplies Product Note
Power planning is important for this model: the total PoE budget changes substantially with the installed power-module capacity, AC input voltage, and shared or redundant operating mode.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | ECS-24S-PoE |
| Product Type | Managed Layer 3 PoE+++ Switch |
| Product Family | UniFi Enterprise Campus |
| 1GbE RJ45 | 1 |
| 2.5GbE RJ45 PoE+++ | 8 |
| 10GbE RJ45 PoE+++ | 16 |
| 25G SFP28 | 4 |
| 100G QSFP28 | 2 |
| Console | 1 |
| PoE Ports | 24 |
| Maximum PoE per Port | 90W PoE+++ |
| PoE Budget | Up to 2,250W depending on power-module and input configuration |
| Switching Capacity | 460 Gbps |
| Non-Blocking Throughput | 230 Gbps |
| Forwarding Rate | 342 Mpps |
| MAC Address Table | 32,000 |
| Supported VLANs | 1,000 |
| IPv4 Static Routes | 512 |
| Packet Buffer | 8 MB |
| Power Supply | 2× hot-swappable 600W AC/DC power modules |
| Power Input | 100–240V AC, 50/60 Hz |
| Fan Modules | 4× hot-swappable |
| Form Factor | 1U full-depth rack mount |
| Dimensions | 442.4 × 44 × 496 mm |
| Weight | 9.2 kg without mounting brackets; 9.3 kg with mounting brackets |
| Operating Temperature | -5°C to 40°C |
| Operating Humidity | 10–90% noncondensing |
| Management | UniFi Network |
| LCM Display | 1.3-inch touchscreen |
FAQs
How many PoE ports does the ECS-24S-PoE have?
It has 24 PoE+++ RJ45 ports: 8 ports operating up to 2.5GbE and 16 ports operating up to 10GbE.
What uplink interfaces are available?
The switch has four 25G SFP28 ports and two 100G QSFP28 ports for high-speed network uplinks.
Does the ECS-24S-PoE support stacking?
Yes. The switch supports stacking and cross-stack LAG for multi-switch network designs.
What is the maximum PoE output per port?
Each PoE port can provide up to 90W using PoE+++.
