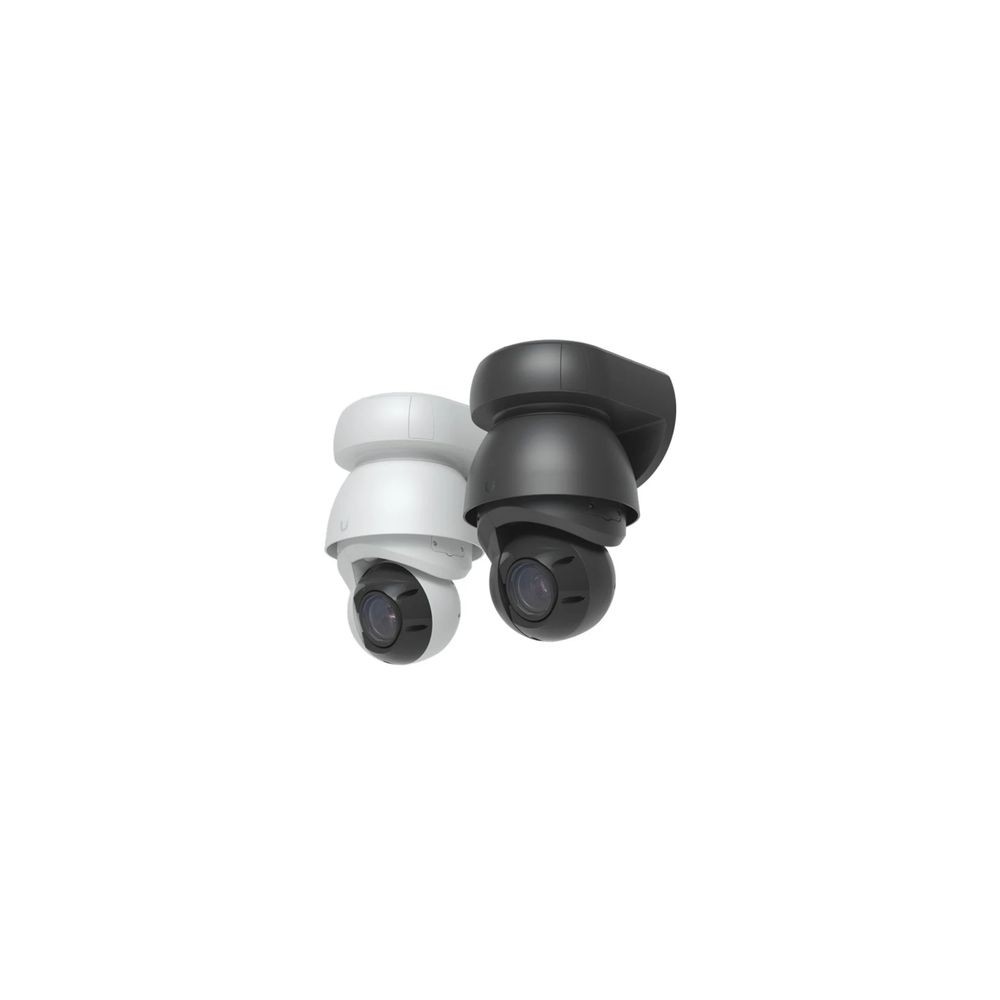

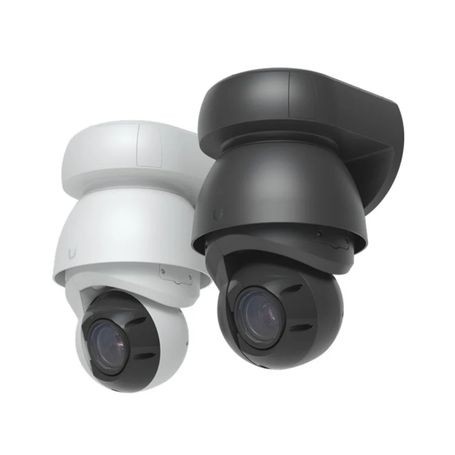

Ubiquiti UVC-AI-PTZ-W AI PTZ Industrial 4K PoE++ Camera with 22x Optical Zoom
Overview
The Ubiquiti UVC-AI-PTZ-W is the white AI PTZ Industrial camera, an industrial-grade 4K pan-tilt-zoom camera designed for UniFi Protect deployments. It combines an 8MP image sensor, 22x optical zoom, AI-powered detection capabilities, and long-range adaptive IR LED illumination. Ubiquiti specifies up to 100 m (328 ft) of infrared night vision and 30 FPS video at 3840 × 2160 resolution.
Imaging and Optical Performance
The camera uses a 1/1.8-inch 8MP sensor and a varifocal lens with a 6.36–138.5 mm focal-length range and f/1.5–f/3.4 aperture. Its 22x optical zoom supports wide and telephoto viewing, with a specified field of view ranging from 59.8° horizontal and 44.4° vertical in wide mode to 3° horizontal and 2.24° vertical in telephoto mode. The camera supports 360° endless pan movement and 120° tilt.
AI Detection and Night Vision
The UVC-AI-PTZ-W supports AI-enhanced security functions including face recognition, license plate recognition, and smart detection of people, vehicles, and animals. Built-in adaptive IR LED illumination and an IR-cut filter provide night-mode operation with a specified infrared range of up to 100 m (328 ft).
Networking and Power
The camera provides one Gigabit Ethernet RJ45 networking interface and uses PoE++ for power. Ubiquiti specifies a supported voltage range of 42.5–57V DC and maximum power consumption of 51W. A factory-reset button and MicroSD card expansion slot are also provided.
Outdoor Deployment
The camera is rated IP66 for weather resistance and supports wall, pole, and desk-stand mounting. Its enclosure combines aluminum alloy and polycarbonate, while the mounting hardware uses powder-coated aluminum alloy. Ubiquiti specifies operation from -40 to 50°C (-40 to 122°F) and 0–90% noncondensing humidity.
Key Features
- 4K 8MP video at up to 30 FPS
- 22x optical zoom with 6.36–138.5 mm varifocal lens
- Up to 100 m (328 ft) adaptive IR LED night vision
- AI-powered face, license plate, people, vehicle, and animal detection
- 360° endless pan and 120° tilt with IP66 weatherproofing
Applications
The UVC-AI-PTZ-W can be deployed for large-area video surveillance where remote pan, tilt, optical zoom, and long-range night vision are required. Its PTZ range and AI recognition capabilities support monitoring of industrial sites, facilities, perimeter areas, and other outdoor environments managed through UniFi Protect.
DC Supplies Product Note
The camera requires a PoE++ power source capable of supporting up to 51W within the specified 42.5–57V DC input range. Confirm the available PoE++ power budget before deployment, particularly when connecting the camera to an existing UniFi switch with other high-power PoE devices.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UVC-AI-PTZ-W |
| Product Type | Industrial 4K PTZ Camera |
| Product Name | AI PTZ Industrial |
| Color | White |
| Resolution | 8MP, 3840 × 2160 (16:9) |
| Maximum Frame Rate | 30 FPS |
| Image Sensor | 1/1.8-inch 8MP |
| Lens | F 6.36–138.5 mm; f/1.5–f/3.4 |
| Optical Zoom | 22x |
| Wide Field of View | H: 59.8°, V: 44.4°, D: 70° |
| Telephoto Field of View | H: 3°, V: 2.24°, D: 3.76° |
| Pan Range | 360° endless |
| Tilt Range | 120° |
| IR Night Vision | 100 m (328 ft) |
| AI Detection | Face recognition, license plate recognition, people, vehicles, animals |
| Networking Interface | 1 × Gigabit Ethernet RJ45 |
| Power Method | PoE++ |
| Supported Voltage Range | 42.5–57V DC |
| Maximum Power Consumption | 51W |
| Weatherproofing | IP66 |
| Mounting | Wall, pole mount, desk stand |
| Expansion Slot | MicroSD card |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Powder-coated aluminum alloy |
| Operating Temperature | -40 to 50°C (-40 to 122°F) |
| Operating Humidity | 0–90% noncondensing |
| Dimensions | 207 × 223.7 × 341.3 mm (8.2 × 8.8 × 13.4") |
| Weight | 3.8 kg (8.4 lb) without mount |
| Processor | Quad-core Arm Cortex-A53 based chip |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
Frequently Asked Questions
What resolution does the UVC-AI-PTZ-W support?
The camera provides 8MP 4K video at 3840 × 2160 resolution with a maximum frame rate of 30 FPS.
How much optical zoom does the UVC-AI-PTZ-W provide?
The UVC-AI-PTZ-W provides 22x optical zoom through its 6.36–138.5 mm varifocal lens.
How far can the camera see at night?
Ubiquiti specifies adaptive IR LED night vision with a maximum range of 100 m (328 ft).
What AI detections are supported?
The camera supports face recognition, license plate recognition, and smart detections for people, vehicles, and animals.
How is the camera powered?
The UVC-AI-PTZ-W uses PoE++ and supports an input voltage range of 42.5–57V DC, with maximum power consumption specified at 51W.
Can the UVC-AI-PTZ-W be installed outdoors?
Yes. The camera has an IP66 weatherproof rating and is specified for operating temperatures from -40 to 50°C (-40 to 122°F).
