Overview

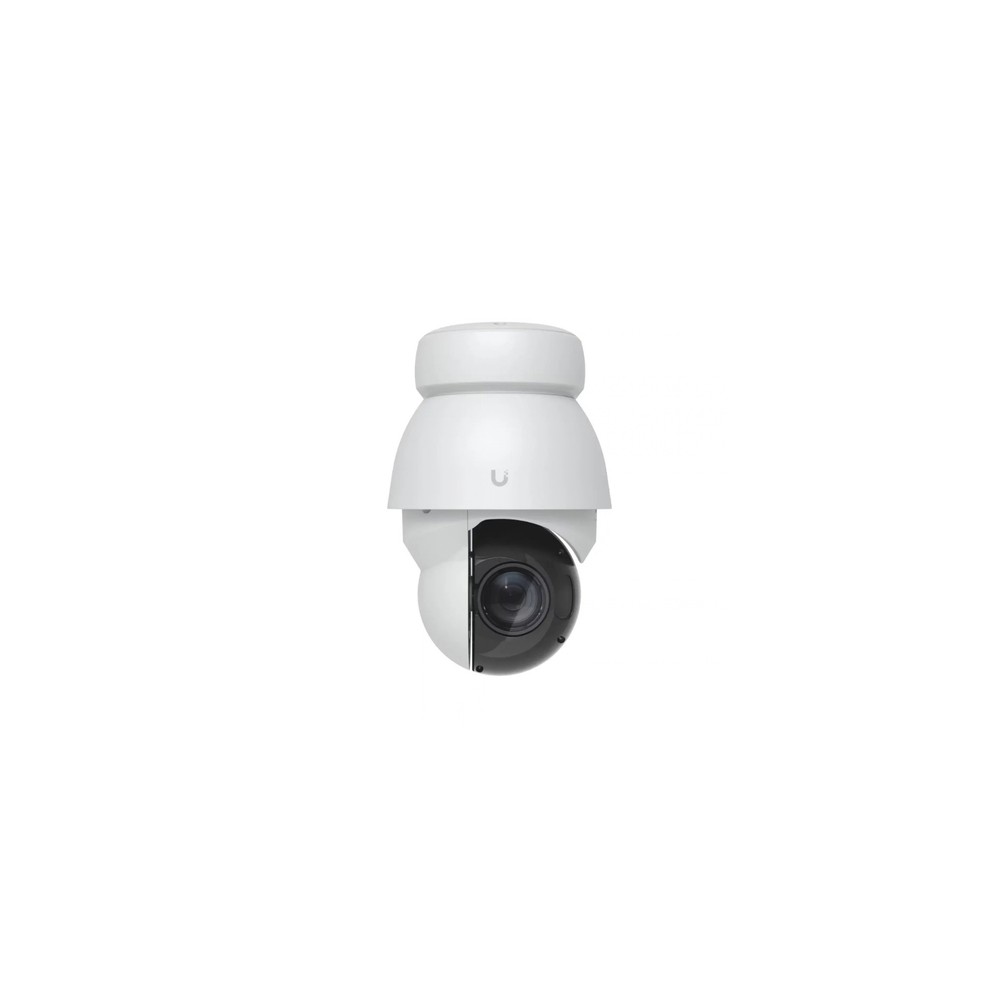

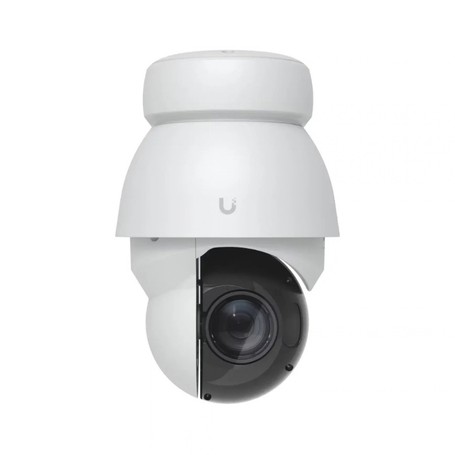

The Ubiquiti UVC-AI-PTZ-Precision-W is an industrial-grade 4K PTZ surveillance camera designed for advanced security monitoring and long-range visual coverage. It combines an 8MP image sensor, 31x optical zoom, 360° endless pan, 120° tilt, 905 nm LiDAR-assisted autofocus, adaptive IR illumination up to 100 m, and AI-powered recognition capabilities. The white camera uses Gigabit Ethernet with PoE++ power and features an IP66-rated enclosure for outdoor deployments.
4K Imaging and 31x Optical Zoom
The camera uses a 1/1.8-inch 8MP image sensor and captures video at up to 3840 x 2160 resolution and 30 FPS. Its 6.91–214.64 mm lens provides 31x optical zoom, allowing the camera to move from a 59° horizontal wide field of view to a 1.98° horizontal telephoto field of view while retaining optical detail.
LiDAR-Assisted Autofocus and Adaptive IR
Integrated 905 nm LiDAR technology enables faster autofocus when switching between targets. The adaptive IR LED array provides night vision up to 100 m and is designed to adjust illumination according to the camera's viewing conditions and zoom level.
PTZ Coverage and AI Recognition
The PTZ mechanism provides 360° endless pan movement and 120° tilt movement for broad-area surveillance. Supported recognition and detection capabilities include face recognition, license plate recognition, and smart detections for people, vehicles, and animals.
Network and Power
The camera connects through a Gigabit Ethernet RJ45 interface and uses PoE++ for power. It supports 42.5–57V DC and has a maximum power consumption of 51W. A microSD card slot provides local storage expansion.
Key Features
- 4K 8MP video at up to 30 FPS with a 1/1.8-inch sensor
- 31x optical zoom with 6.91–214.64 mm lens
- 905 nm LiDAR for faster autofocus
- 100 m adaptive IR LED night vision
- 360° endless pan, 120° tilt, and AI recognition for faces and license plates
DC Supplies Product Note
For installation planning, note that the UVC-AI-PTZ-Precision-W requires PoE++ rather than a conventional low-power PoE connection and can draw up to 51W. The camera also supports wall, pole, and desktop mounting, with pole installation accommodating 50–100 mm and 115–150 mm diameter poles.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UVC-AI-PTZ-Precision-W |
|---|
| Product Type | 4K PTZ Network Surveillance Camera |
|---|
| Model | UniFi AI PTZ Precision |
|---|
| Color | White |
|---|
| Resolution | 8MP, 3840 x 2160 |
|---|
| Maximum Frame Rate | 30 FPS |
|---|
| Image Sensor | 1/1.8-inch 8MP |
|---|
| Lens | F 6.91–214.64 mm; f/1.36–f/4.6 |
|---|
| Optical Zoom | 31x |
|---|
| Horizontal Field of View | 59° wide to 1.98° tele |
|---|
| Vertical Field of View | 34.1° wide to 1.12° tele |
|---|
| Diagonal Field of View | 67.1° wide to 2.27° tele |
|---|
| Pan Range | 360° endless |
|---|
| Tilt Range | 120° |
|---|
| IR Night Vision | Up to 100 m |
|---|
| Networking Interface | 1 x Gigabit Ethernet RJ45 |
|---|
| Power Method | PoE++ |
|---|
| Supported Voltage Range | 42.5–57V DC |
|---|
| Maximum Power Consumption | 51W |
|---|
| Weatherproofing | IP66 |
|---|
| Storage Expansion | MicroSD card slot |
|---|
| Operating Temperature | -40°C to 50°C |
|---|
| Operating Humidity | 0–90% non-condensing |
|---|
| Enclosure Material | Aluminum alloy, polycarbonate |
|---|
| NDAA Compliant | Yes |
|---|
| Certifications | CE, FCC, IC |
|---|
FAQs
Does the UVC-AI-PTZ-Precision-W support 4K video?
Yes. It provides 8MP 3840 x 2160 video resolution at up to 30 FPS.
What optical zoom does this PTZ camera provide?
The camera provides 31x optical zoom using a 6.91–214.64 mm lens.
How far does the IR night vision reach?
The integrated adaptive IR LED array provides night vision up to 100 m.
What power source does the camera require?
The UVC-AI-PTZ-Precision-W uses PoE++ and supports 42.5–57V DC with maximum power consumption of 51W.
