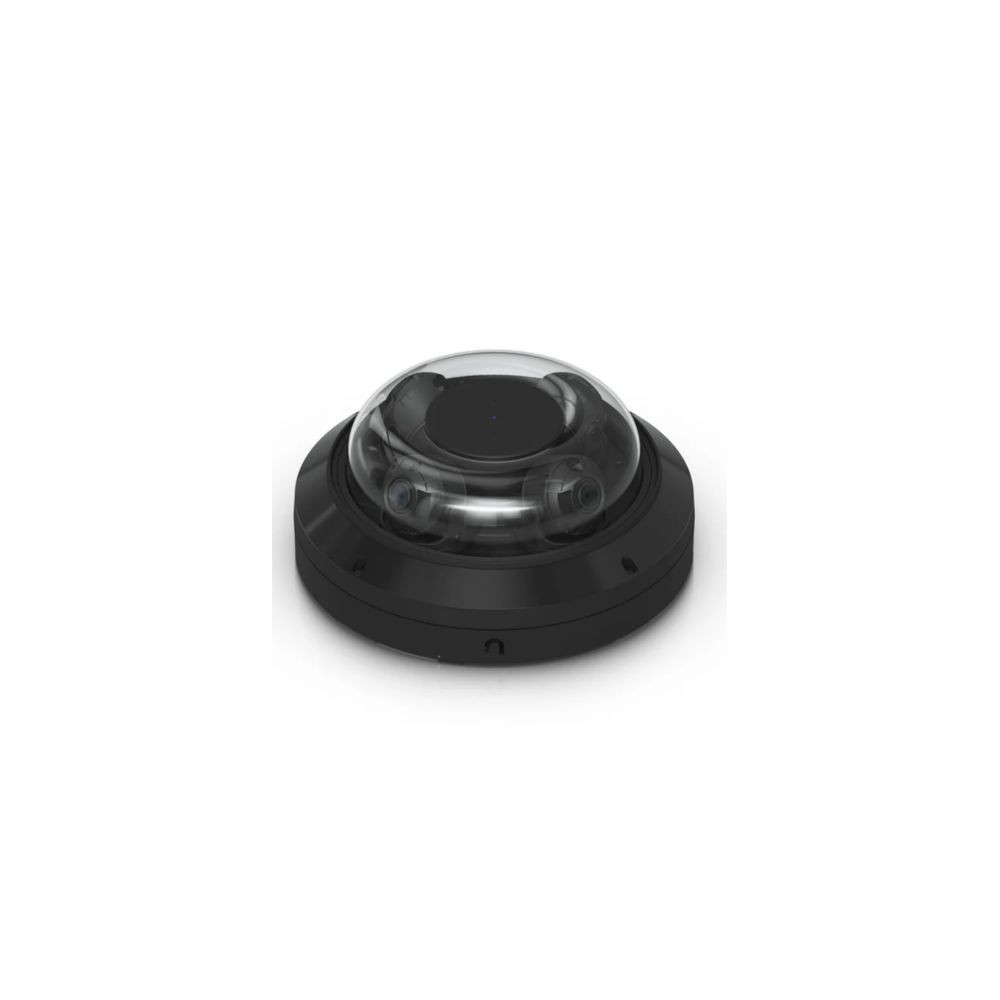

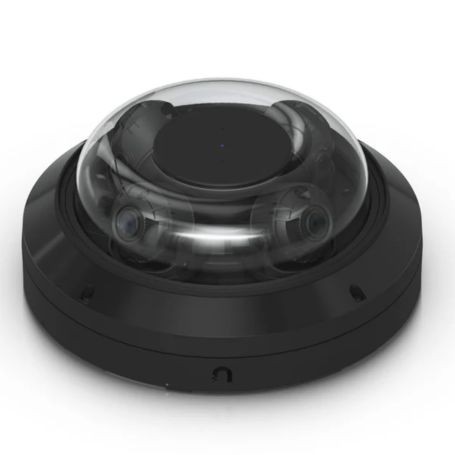

Ubiquiti UVC-AI-MS-4-B – AI Multi Sensor 4 32MP PoE++ Camera
Overview
The Ubiquiti UVC-AI-MS-4-B AI Multi Sensor 4 is an all-weather 32MP multi-sensor security camera with four independently adjustable lenses, 2.33x optical zoom, 360° IR coverage, and a Multi-TOPS AI engine. Designed for wide-area surveillance and detailed close-up monitoring, this black Ubiquiti AI camera combines four 8MP sensors in a single PoE++ camera platform.
Key Features
- 32MP multi-sensor camera with four independent 8MP sensors
- 2.33x optical zoom for wide and telephoto surveillance
- Four independently adjustable lenses for flexible coverage
- 360° IR coverage with adaptive IR control and up to 20 m night vision
- Multi-TOPS AI engine with Face Recognition, License Plate Recognition, and smart detections
32MP Multi-Sensor Camera
The UVC-AI-MS-4-B uses four 8MP 1/2.8-inch image sensors, providing a combined 32MP resolution. Each sensor supports 3840 x 2160 resolution at up to 24 FPS. The four-lens architecture allows each viewing direction to be adjusted independently for wide-area monitoring and targeted surveillance.
2.33x Optical Zoom
This Ubiquiti AI Multi Sensor 4 camera provides 2.33x optical zoom with wide and telephoto viewing modes. The wide field of view is 108.8° horizontal, 57.6° vertical, and 130.8° diagonal, while the telephoto field of view is 42.8° horizontal, 24.1° vertical, and 49.1° diagonal.
AI Detection and Recognition
The UVC-AI-MS-4-B features a Multi-TOPS AI engine and supports Face Recognition, License Plate Recognition, and smart detections for people, vehicles, and animals. These capabilities provide AI-assisted monitoring across the camera's multi-sensor coverage.
IR Night Vision and Outdoor Protection
The UVC-AI-MS-4-B includes 16 built-in IR LEDs with adaptive control and provides up to 20 m (65 ft) of IR night vision. Its IP66 weatherproofing and IK10 tamper resistance support demanding outdoor surveillance installations.
PoE++ Network Connectivity
The Ubiquiti AI Multi Sensor 4 uses a Gigabit Ethernet RJ45 port and PoE++ power. Maximum power consumption is 34.6W, with a supported voltage range of 42.5–57V DC.
Local Storage Expansion
The UVC-AI-MS-4-B provides two MicroSD card slots and one M.2 2280 SATA SSD expansion slot. This gives the camera supported local storage expansion options for compatible surveillance deployments.
Mounting Options
The standard ceiling mount is included. Optional mounting configurations include pole, corner, arm, and pendant mounts, allowing the UVC-AI-MS-4-B to be adapted to different installation environments.
DC Supplies Product Note
The Ubiquiti UVC-AI-MS-4-B is designed for wide-area surveillance applications requiring multiple independently adjustable camera views from a single device. Its 32MP multi-sensor architecture, optical zoom, AI recognition capabilities, 360° IR coverage, and PoE++ connectivity make it suitable for comprehensive UniFi video surveillance deployments.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UVC-AI-MS-4-B |
|---|
| Product Type | AI Multi-Sensor Security Camera |
|---|
| Model | AI Multi Sensor 4 |
|---|
| Color | Black |
|---|
| Total Resolution | 32MP |
|---|
| Image Sensors | 4 x 8MP 1/2.8" CMOS |
|---|
| Resolution | 4 x 8MP, 3840 x 2160 (16:9) |
|---|
| Maximum Frame Rate | 24 FPS |
|---|
| Optical Zoom | 2.33x |
|---|
| Lens | 4 x F 3.18–7.42 mm; ƒ/1.8–ƒ/2.8 |
|---|
| Wide Field of View | H 108.8°, V 57.6°, D 130.8° |
|---|
| Telephoto Field of View | H 42.8°, V 24.1°, D 49.1° |
|---|
| IR Night Vision | 20 m (65 ft) |
|---|
| IR LEDs | 16 with adaptive control |
|---|
| AI Features | Face Recognition, License Plate Recognition, People, Vehicles, Animals |
|---|
| Networking Interface | GbE RJ45 port |
|---|
| Power Method | PoE++ |
|---|
| Supported Voltage Range | 42.5–57V DC |
|---|
| Maximum Power Consumption | 34.6W |
|---|
| Weatherproofing | IP66 |
|---|
| Tamper Resistance | IK10 |
|---|
| Storage Expansion | 2 x MicroSD, 1 x M.2 2280 SATA SSD |
|---|
| Mounting | Ceiling mount included; Pole, Corner, Arm, Pendant optional |
|---|
| Dimensions | Ø255 x 105 mm (Ø10.04 x 4.13") |
|---|
| Weight | 2.4 kg (5.3 lb) |
|---|
| Enclosure Material | Aluminum alloy, polycarbonate |
|---|
| Operating Temperature | -20 to 50°C (-4 to 122°F) |
|---|
| Operating Humidity | 0 to 90% noncondensing |
|---|
| NDAA Compliant | Yes |
|---|
FAQs
What is the Ubiquiti UVC-AI-MS-4-B?
The UVC-AI-MS-4-B is the black AI Multi Sensor 4, a 32MP multi-sensor security camera with four independently adjustable lenses and 2.33x optical zoom.
What resolution does the UVC-AI-MS-4-B provide?
The camera provides a combined 32MP resolution using four 8MP sensors, with each sensor supporting 3840 x 2160 resolution.
Does the UVC-AI-MS-4-B support optical zoom?
Yes. The AI Multi Sensor 4 provides 2.33x optical zoom with wide and telephoto viewing modes.
What AI features does the UVC-AI-MS-4-B support?
The camera supports Face Recognition, License Plate Recognition, and smart detections for people, vehicles, and animals.
How far is the UVC-AI-MS-4-B infrared night vision?
The UVC-AI-MS-4-B provides up to 20 m (65 ft) of IR night vision using 16 built-in IR LEDs with adaptive control.
How is the UVC-AI-MS-4-B powered?
The camera uses PoE++ power through its Gigabit Ethernet RJ45 connection and has a maximum power consumption of 34.6W.
