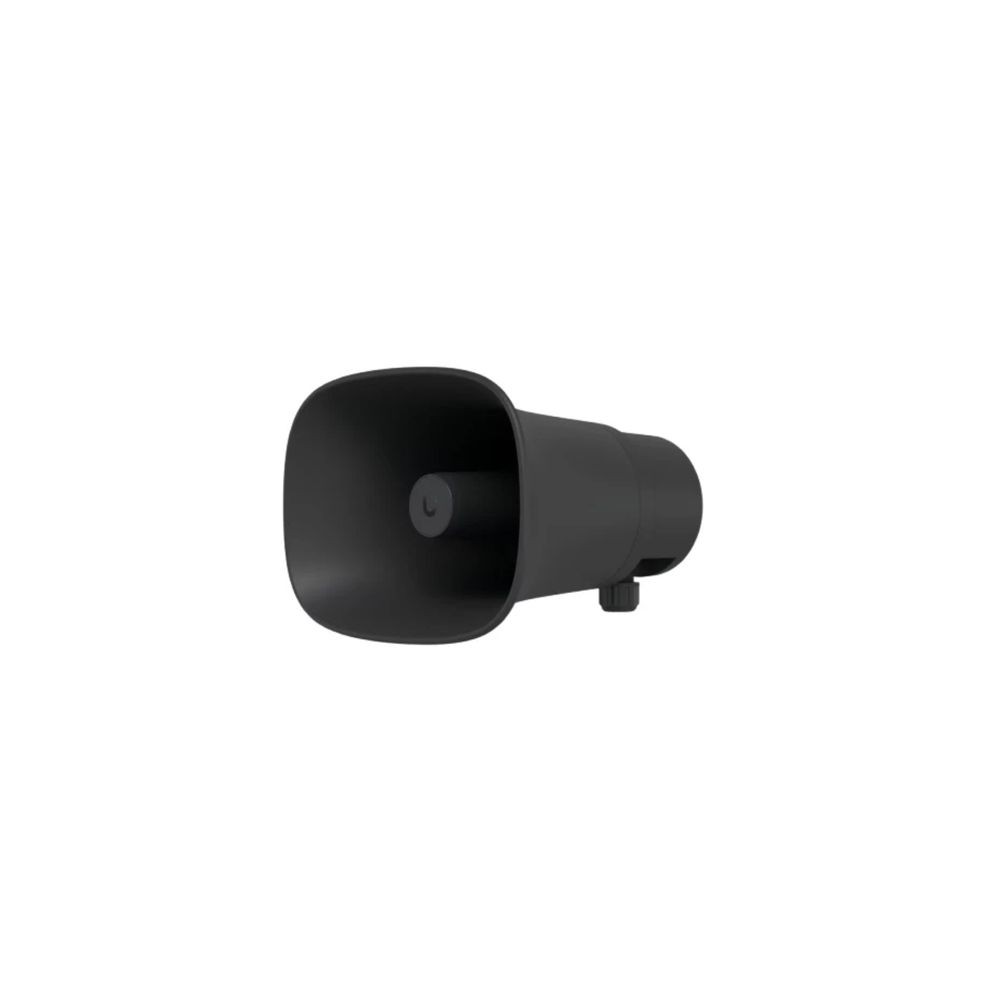

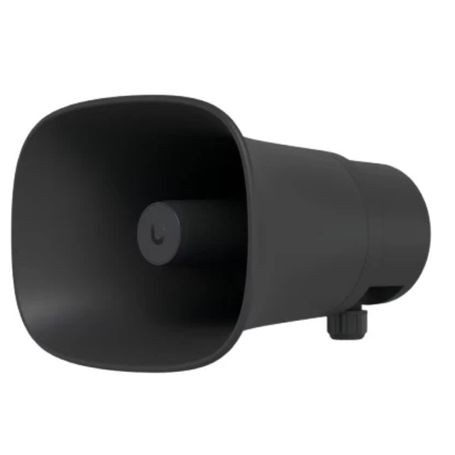

The Ubiquiti UP-AI-HORN-SPEAKER-B is a black UniFi Protect AI Horn Speaker designed for high-output network audio, security notifications, and audible alerts. It combines PoE+ connectivity, a weather-resistant enclosure, and UniFi Protect management in a horn-style speaker designed for indoor and outdoor deployments.
Audio and Security Alerts
The AI Horn Speaker provides up to 120 dB of sound output for audible notifications and security alerts. It is designed to integrate with UniFi Protect for network-managed audio and event-driven alert applications.
Network and Power
The speaker provides one 100/10 MbE RJ45 Ethernet interface and uses PoE+ for power and network connectivity. Maximum power consumption is 14.3W, allowing a single Ethernet connection to provide both data and power.
Environmental Protection
The enclosure combines UV-stabilized polycarbonate and aluminum alloy and is rated IP66 for protection against dust and water. The speaker is specified for operation from -40 to 60 °C with 10–90% noncondensing humidity.
Mounting
An articulating mount is included for wall and pole installation. The pole mounting system supports poles measuring 1–2.5 inches (25–63.5 mm) in diameter. The mounting components use stainless steel and aluminum alloy.
Key Features
- Up to 120 dB sound output
- PoE+ power and 100/10 MbE Ethernet connectivity
- UniFi Protect management
- IP66-rated enclosure for indoor and outdoor installation
- Included articulating mount for wall or pole deployment
Applications
- Security and emergency notifications
- Outdoor audible alert systems
- Commercial and industrial facilities
- Campus and perimeter security
- UniFi Protect event-triggered audio deployments
DC Supplies Product Note
The UP-AI-HORN-SPEAKER-B uses PoE+ for both network connectivity and power. A compatible PoE+ source should therefore be planned at the installation point, particularly for outdoor or remote speaker locations.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UP-AI-HORN-SPEAKER-B |
|---|
| Product Type | AI Horn Speaker |
|---|
| Product Line | UniFi Protect |
|---|
| Color | Black |
|---|
| Maximum Sound Output | 120 dB |
|---|
| Networking Interface | 1 × 100/10 MbE RJ45 |
|---|
| Power Method | PoE+ |
|---|
| Maximum Power Consumption | 14.3W |
|---|
| Weatherproofing | IP66 |
|---|
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
|---|
| Mounting | Wall, pole |
|---|
| Pole Mount Diameter | 1–2.5 in (25–63.5 mm) |
|---|
| Mounting Material | Stainless steel, aluminum alloy |
|---|
| Management | UniFi Protect Web, iOS, Android |
|---|
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) |
|---|
| Operating Humidity | 10–90% noncondensing |
|---|
| Certifications | FCC, IC, CE |
|---|
| NDAA Compliant | Yes |
|---|
FAQs
What is the maximum sound output?
The AI Horn Speaker provides up to 120 dB of sound output.
How is the UP-AI-HORN-SPEAKER-B powered?
It uses PoE+ for power and network connectivity, with maximum power consumption of 14.3W.
Can the speaker be installed outdoors?
Yes. The speaker has an IP66-rated enclosure and an operating temperature range of -40 to 60 °C.
What mounting options are supported?
The included articulating mount supports wall and pole installation. Compatible pole diameters range from 1 to 2.5 inches.
What Ethernet connection does it use?
The speaker provides one 100/10 MbE RJ45 Ethernet port.
