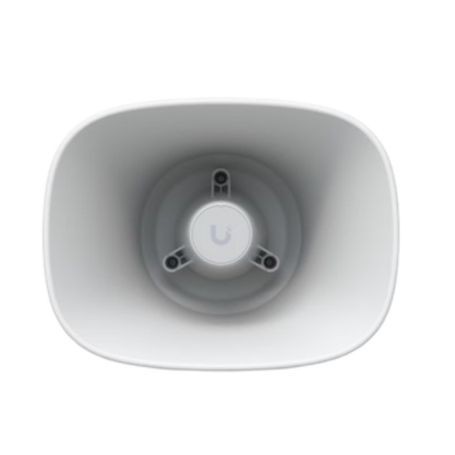

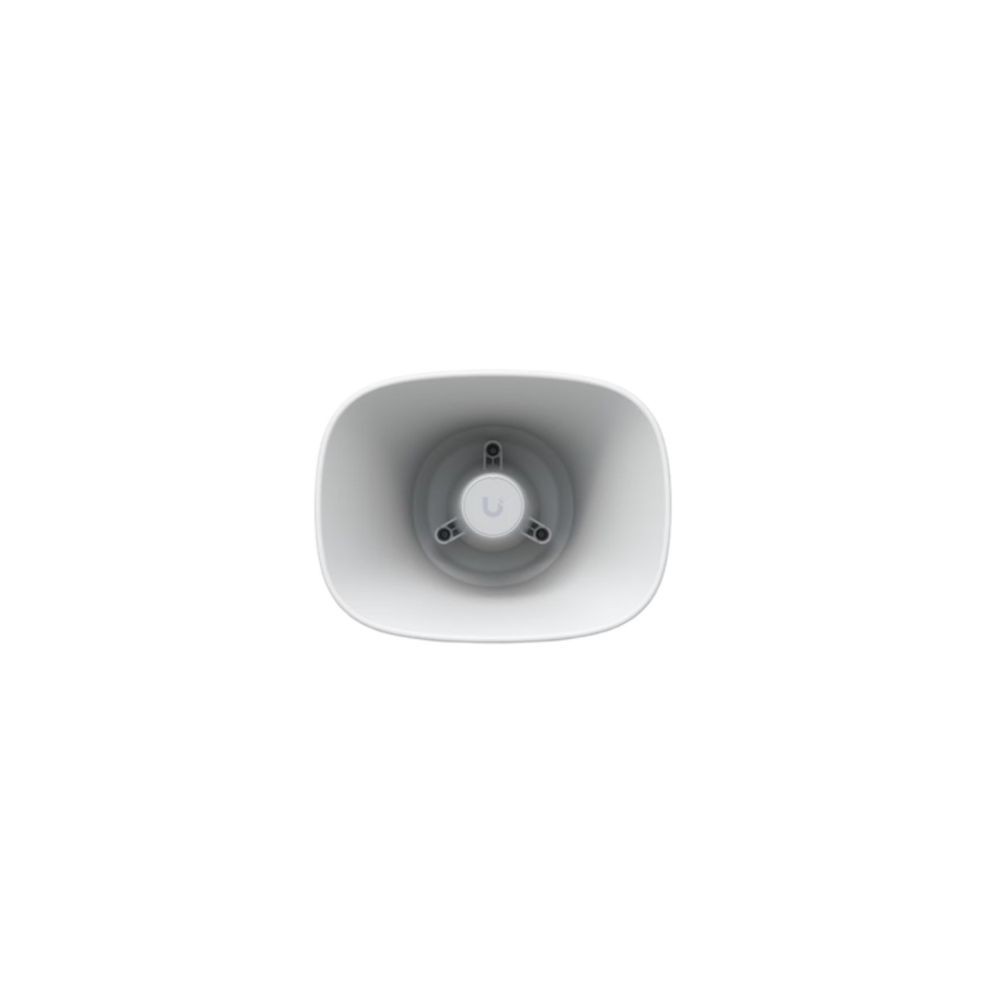

The Ubiquiti UP-AI-HORN-SPEAKER-W is a white UniFi Protect AI Horn Speaker designed for high-output network audio, security alerts, and public-address applications. It delivers up to 120 dB of sound output and combines PoE+ networking, AI alert functionality, and flexible mounting in an IP66-rated enclosure.
Audio and AI Alert Functionality
The horn speaker is designed for audible security notifications, announcements, and event-triggered audio. It can be managed through UniFi Protect and supports advanced AI alert functionality for automated audio responses within supported UniFi deployments.
Network and Power
The speaker connects through a single 100/10 MbE RJ45 interface and uses PoE+ for both network connectivity and power. Maximum power consumption is 14.3W, simplifying installation by eliminating the need for a separate local power supply.
Environmental Protection
The enclosure combines UV-stabilized polycarbonate and aluminum alloy and carries an IP66 weatherproofing rating. It is specified for operation from -40 to 60 °C with 10–90% noncondensing humidity.
Mounting
The included articulating mount supports wall and pole installation, with pole diameters from 1 to 2.5 inches. The mounting assembly uses stainless steel and aluminum alloy components.
Key Features
- 120 dB maximum horn speaker output
- PoE+ powered with 100/10 MbE RJ45 connectivity
- Advanced AI alert functionality through UniFi Protect
- IP66 weatherproof enclosure for indoor and outdoor deployment
- Wall, corner, and pole mounting options with included articulating mount
Applications
- Security and emergency notifications
- Outdoor public-address systems
- Commercial and industrial facilities
- Campus and perimeter alerting
- Event-triggered audio within UniFi Protect deployments
DC Supplies Product Note
The UP-AI-HORN-SPEAKER-W uses PoE+ for power and network connectivity, so the installation requires a compatible 802.3at PoE source. Its IP66 enclosure and articulating mounting system allow the speaker to be positioned for exposed wall or pole installations.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UP-AI-HORN-SPEAKER-W |
|---|
| Product Type | AI Horn Speaker |
|---|
| Product Line | UniFi Protect |
|---|
| Color | White |
|---|
| Maximum Sound Output | 120 dB |
|---|
| Networking Interface | 1 × 100/10 MbE RJ45 |
|---|
| Power Method | PoE+ |
|---|
| Maximum Power Consumption | 14.3W |
|---|
| Weatherproofing | IP66 |
|---|
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
|---|
| Mounting | Wall, corner, pole |
|---|
| Pole Mount Diameter | 1–2.5 in (25–63.5 mm) |
|---|
| Mounting Material | Stainless steel, aluminum alloy |
|---|
| Management | UniFi Protect Web, iOS, Android |
|---|
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) |
|---|
| Operating Humidity | 10–90% noncondensing |
|---|
| Certifications | FCC, IC, CE |
|---|
| NDAA Compliant | Yes |
|---|
| UPC | 810177161172 |
|---|
FAQs
What is the maximum volume of the AI Horn Speaker?
Ubiquiti specifies a maximum sound output of 120 dB.
How is the speaker powered?
The speaker uses PoE+ for power and network connectivity and has a maximum power consumption of 14.3W.
Can the speaker be installed outdoors?
Yes. The enclosure is IP66 rated and specified for operation from -40 to 60 °C.
What mounting options are supported?
The speaker supports wall, corner, and pole mounting. The included articulating mount supports poles measuring 1–2.5 inches in diameter.
What network connection does it use?
It provides one 100/10 MbE RJ45 Ethernet interface.
