Overview

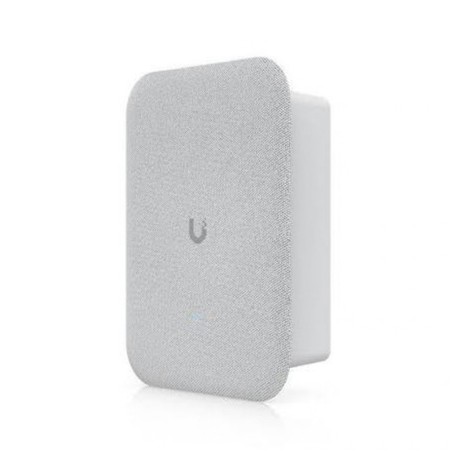

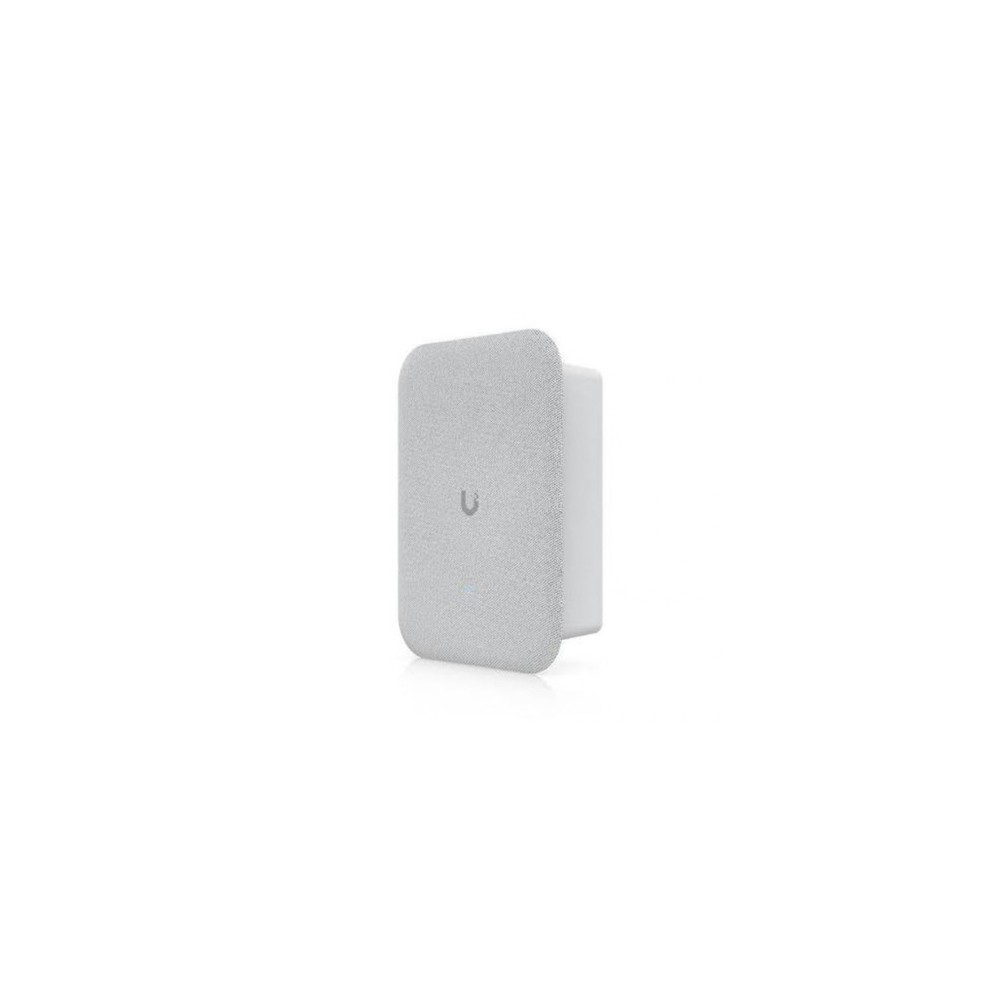

The Ubiquiti UP-AI-SPEAKER UniFi AI Speaker is an indoor network speaker designed to deliver audible AI alerts and event-driven audio within UniFi environments. It provides up to 100 dB SPL at 1 meter, uses a 3-inch full-range driver for mono sound, and connects through a 10/100 MbE RJ45 interface with PoE++ power. The speaker supports standard surface mounting, while flush mounting is available as an optional installation method.
AI Alert Audio
The UP-AI-SPEAKER is designed for audible alerts associated with UniFi events. It can provide automated voice and tone notifications, giving security and monitoring events an audible output in addition to visual or application-based notifications.
100dB Audio Output
The speaker produces a maximum sound pressure level of 100 dB at 1 meter. Its 3-inch full-range driver provides mono sound across a specified frequency range of 150 Hz to 20 kHz with a ±5 dB response.
Wide Audio Coverage
A 90-degree axisymmetric nominal coverage pattern provides consistent audio distribution around the speaker's central axis. This makes the speaker suitable for indoor areas where audible event notifications need to reach a defined listening zone.
PoE++ Network Connectivity
The UP-AI-SPEAKER uses a single 10/100 MbE RJ45 network interface and PoE++ for power. This combines network connectivity and device power over the Ethernet connection, with a maximum power consumption of 33W.
Flexible Installation
The speaker supports surface mounting as the default installation configuration. Flush mounting is also supported as an optional installation method, allowing the physical installation approach to be selected according to the room and mounting requirements.
Indoor Construction
The enclosure is constructed from polycarbonate, with mounting components using polycarbonate and a metal plate. The specified operating environment is 0 to 40°C with 10 to 90% noncondensing humidity, making this model intended for controlled indoor installations.
Key Features
- 100 dB maximum sound pressure level at 1 meter
- 3-inch full-range driver with mono sound output
- AI alerts with automated voice and tone notifications
- 10/100 MbE RJ45 networking with PoE++ power
- Surface mounting with optional flush-mount installation
DC Supplies Product Note
For installation planning, note that the UP-AI-SPEAKER uses PoE++ rather than a separate local DC power input. The connected network infrastructure therefore needs to provide the required PoE++ power, with the speaker specified for up to 33W maximum consumption.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UP-AI-SPEAKER |
| Product Type | Indoor AI Network Speaker |
| Product Name | UniFi AI Speaker |
| Audio Output | Mono sound |
| Driver | 3-inch full-range |
| Frequency Response | 150 Hz – 20 kHz, ±5 dB |
| Nominal Impedance | 4 Ohms |
| Sensitivity | 87 dB (1W @ 1m) |
| Maximum SPL | 100 dB @ 1m |
| Nominal Coverage | 90° axisymmetric |
| Networking Interface | 1 × 10/100 MbE RJ45 |
| Power Method | PoE++ |
| Maximum Power Consumption | 33W |
| Mounting | Surface mount; flush mount optional |
| Dimensions | 268.5 × 192 × 83.5 mm |
| Installation Size | 84.7 mm |
| Weight | 1.6 kg |
| Enclosure Material | Polycarbonate |
| Mounting Material | Polycarbonate, metal plate |
| Operating Temperature | 0 to 40°C |
| Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE |
Frequently Asked Questions
What type of speaker is the Ubiquiti UP-AI-SPEAKER?
It is an indoor UniFi network speaker designed for audible AI alerts and event-driven voice or tone notifications.
How loud is the UP-AI-SPEAKER?
The specified maximum sound pressure level is 100 dB at 1 meter.
Does the UP-AI-SPEAKER use PoE?
Yes. The speaker uses PoE++ for power and has one 10/100 MbE RJ45 network interface.
Can the AI Speaker be flush mounted?
Yes. Surface mounting is the default configuration, while flush mounting is supported as an optional installation method.
What audio driver does the UP-AI-SPEAKER use?
It uses a 3-inch full-range driver with mono sound output, a 4-ohm nominal impedance, and a specified frequency range of 150 Hz to 20 kHz.
Is the UP-AI-SPEAKER suitable for outdoor installation?
No. Ubiquiti specifies this model for indoor operation, with an operating temperature range of 0 to 40°C and 10 to 90% noncondensing humidity.
