Detailed Specifications

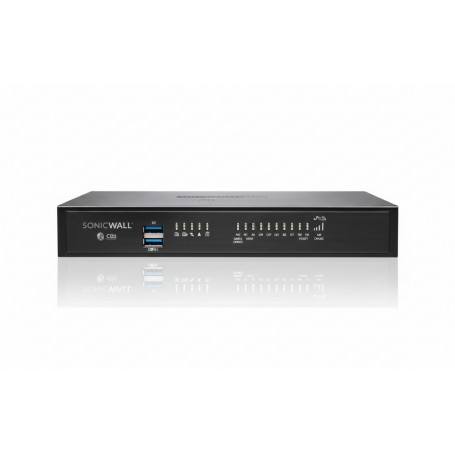

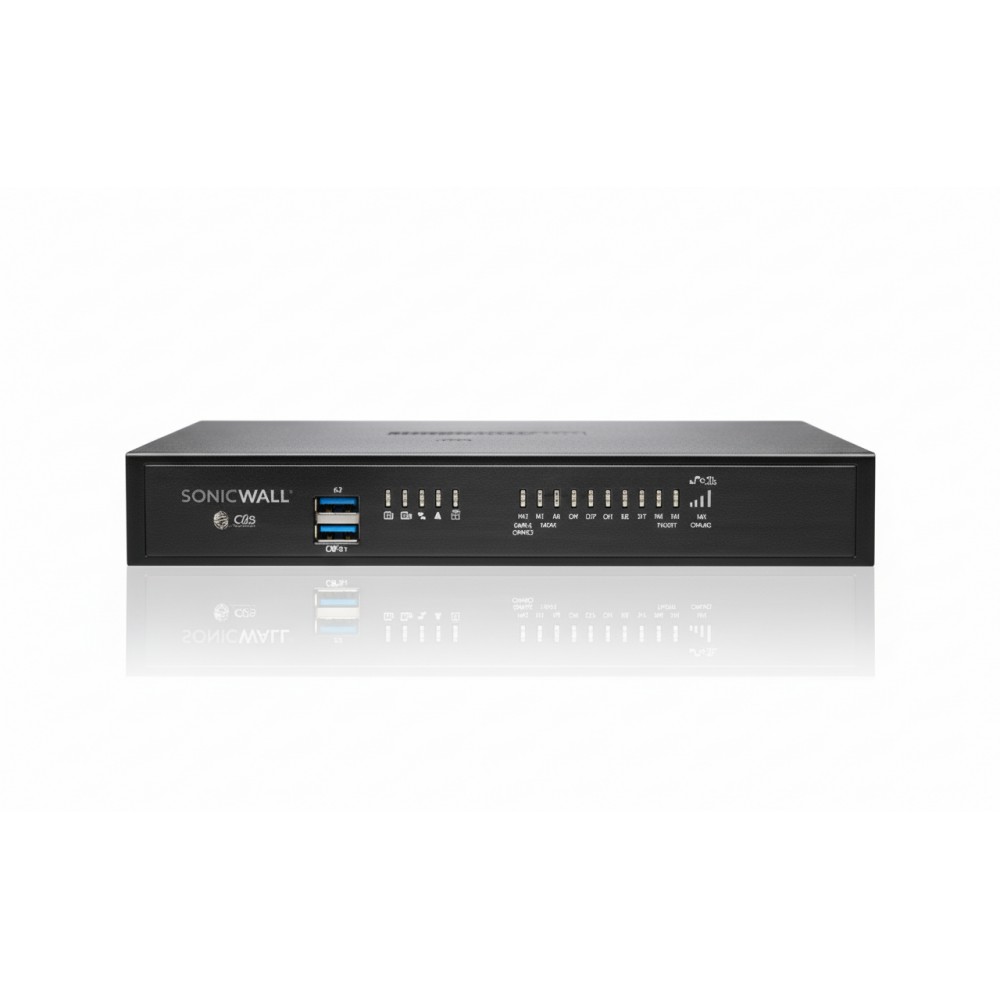

SonicWall TZ370W (02-SSC-6832) - Gen-7 Wireless NGFW, 3 Gb/s
Overview
The SonicWall 02-SSC-6832 is a TZ370W next-generation firewall in the Gen-7 TZ series. It combines wired security and built-in Wi-Fi (802.11 a/b/g/n/ac) in a single appliance, making it ideal for small offices, branch sites, or SD-Branch deployments that need both firewall protection and wireless access. With 8 Gigabit RJ-45 ports, it supports high-speed wired connectivity, while the internal 2×2 Wi-Fi-AC radio provides flexible wireless coverage. The device runs SonicOS 7, and comes with a 2-year Secure Upgrade Plus Essential Protection license, delivering core security features like IPS, anti-malware, application control, and content filtering. Storage is scalable up to 256 GB for logs, caching, or firmware backup.
Key Features
Combined wired + Wi-Fi × 8 RJ-45 ports + built-in 802.11ac wireless in one appliance.
3 Gb/s firewall throughput × handles moderate to high branch traffic.
SonicOS 7 & SD-WAN ready × supports modern security, zero-touch deployment, and connectivity optimization.
Expandable storage (up to 256 GB) × supports logging, caching, and firmware backup.
Secure Upgrade Plus - Essential Edition (2 Years) × includes IPS, anti-malware, content filtering and more.
Technical Specifications
| Specification | Detail |
|---|
| Brand | SonicWall |
| Part Number | 02-SSC-6832 |
| Model | TZ370W (Gen-7) |
| Firewall Throughput | ~3.0 Gbps |
| IPS Throughput | ~1.5 Gbps |
| VPN Throughput | ~1.38 Gbps |
| Connections (SPI / DPI) | 900,000 SPI |
| Ports | 8 × 1 Gb RJ-45, 2 × USB, 1 × Console |
| Wireless | Dual-band 802.11 a/b/g/n/ac |
| Storage | Built-in + expandable up to 256 GB |
| Power Consumption | 18.91 W typical |
| Operating System | SonicOS 7.0 |
| Form Factor | Desktop (also rack-mountable) |
