Detailed Specifications

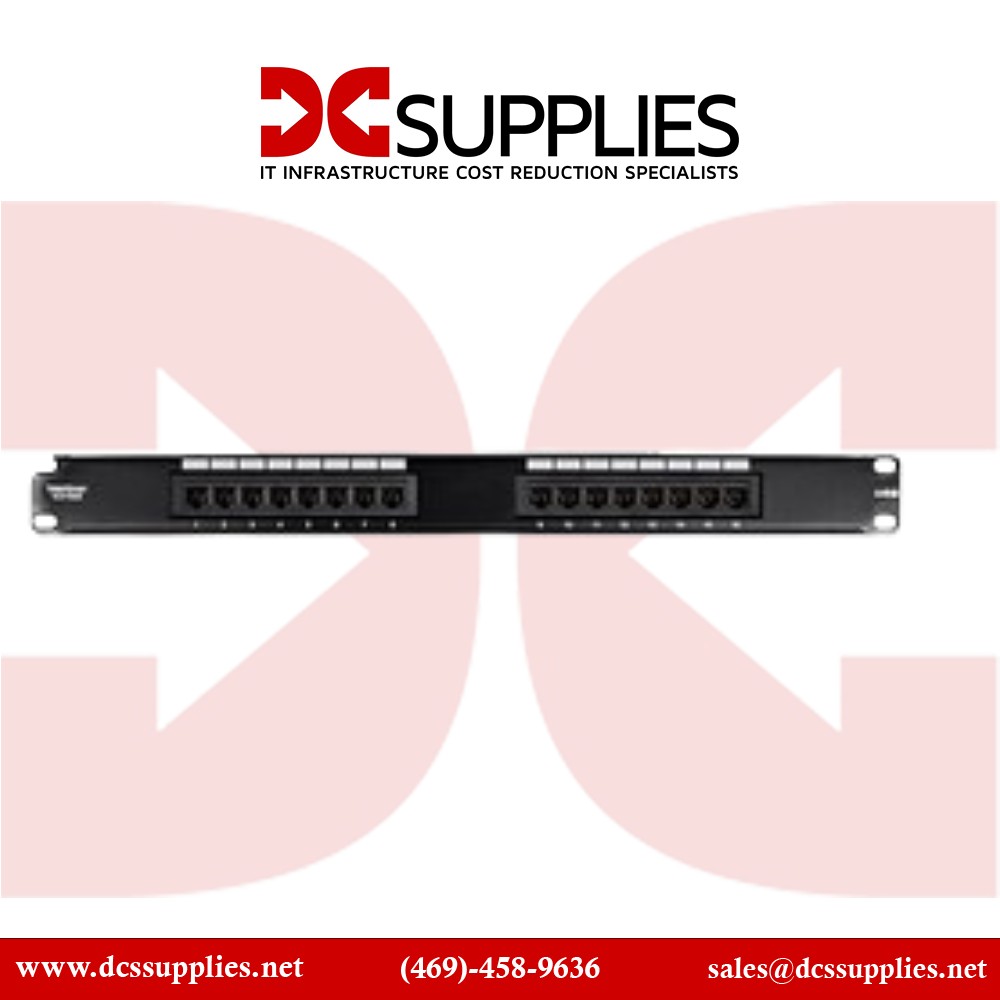

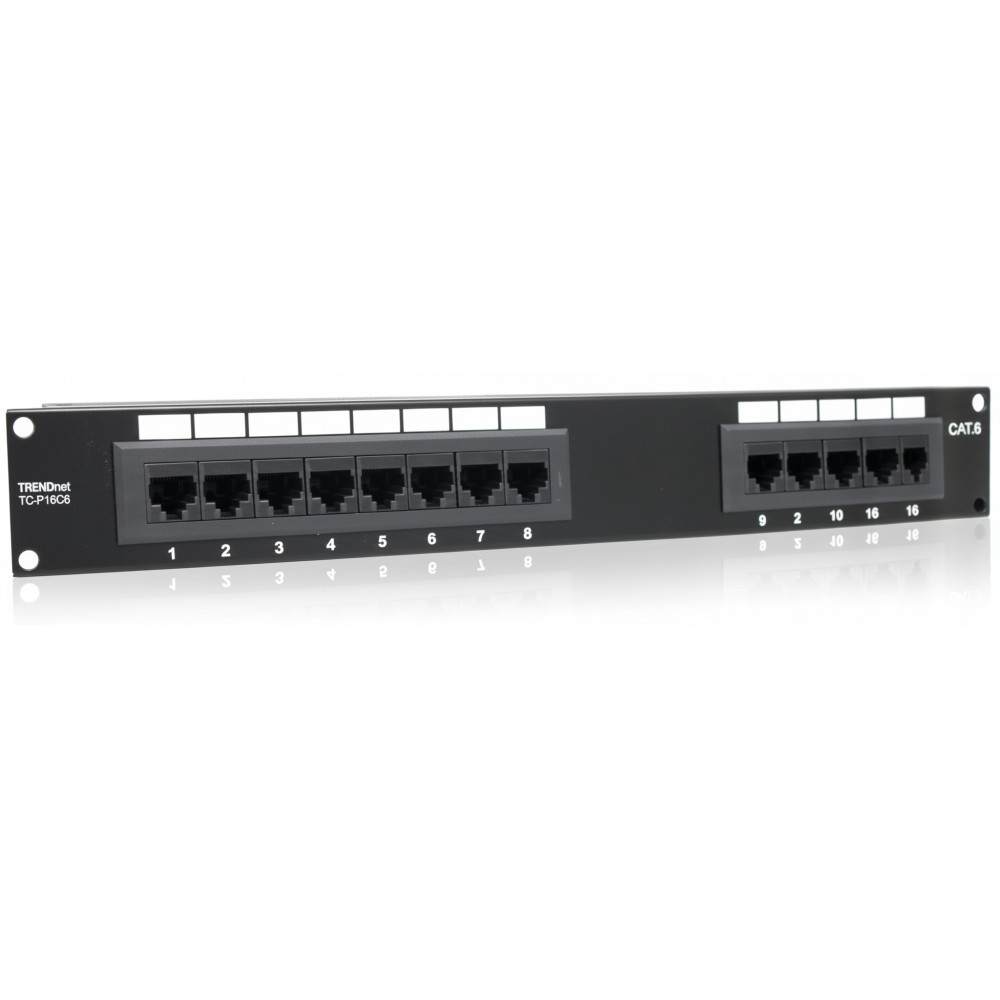

TRENDnet TC-P16C6 - 16-Port Cat 6 Unshielded Patch Panel
Overview :
The TRENDnet TC-P16C6 is a 16-port Cat 6 unshielded RJ-45 patch panel designed for structured cabling systems in Ethernet environments. It supports copper Gigabit Ethernet (1000Base-T), making it suitable for installations in data closets, network racks, or telecommunication rooms. With its 250 MHz Category 6 certification, the panel maintains high-frequency performance and is compatible with legacy cabling up to Cat 3, enabling future-proof deployment. It uses 110D IDC terminal blocks with color-coded labeling for both T568A and T568B wiring schemes, making termination easier and less error-prone. The panel is rack-mountable in a standard 19″ chassis and works seamlessly with TRENDnet's TC-PDT punch-down tool, helping engineers integrate it into existing network infrastructure with minimal additional tooling. Operating in harsh environments is also feasible due to its wide temperature tolerance.
Key Features :
16 RJ-45 ports for bulk cabling termination
250 MHz Cat 6 rated for Gigabit Ethernet
110D IDC blocks, supports 110 or Krone tool
Color-coded T568A/B wiring labeling
180° horizontal layout for easier cable routing
Specification :
| Specification | Detail |
|---|
| Brand | TRENDnet |
| Part Number | TC-P16C6 |
| Product Type | Network Patch Panel |
| Number of Ports | 16 RJ-45 ports |
| Cabling Category | Cat 6 UTP |
| Frequency Rating | 250 MHz |
| Supported Ethernet Speeds | 100/1000Base-T (Gigabit) |
| Termination Type | 110D IDC (110 or Krone tool) |
| Wiring Scheme | Supports T568A & T568B, color-coded |
| Cable Compatibility | Cat 3, 4, 5, 5e, 6 |
| Rack Size | 1U, 19″ compatible |
| Operating Temperature | −40 °C to 80 °C (−40 °F to 176 °F) |
| Certification / Compliance | ANSI/EIA/TIA-568-B.2-1, ISO/IEC 11801, UL E157358 |
| Weight | ~1.43 lb (≈ 0.65 kg) |
| Warranty | 3-year limited (per reseller) |
| Country of Origin | China |
| Tool Compatibility | Compatible with TRENDnet TC-PDT punch-down tool |
