TRENDnet TC-P24C5E Cat5/5e 24-Port Unshielded Patch Panel View larger

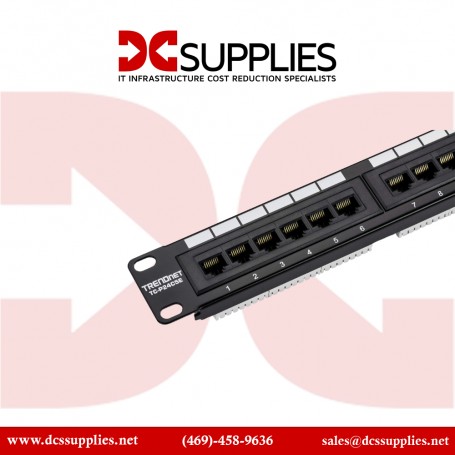

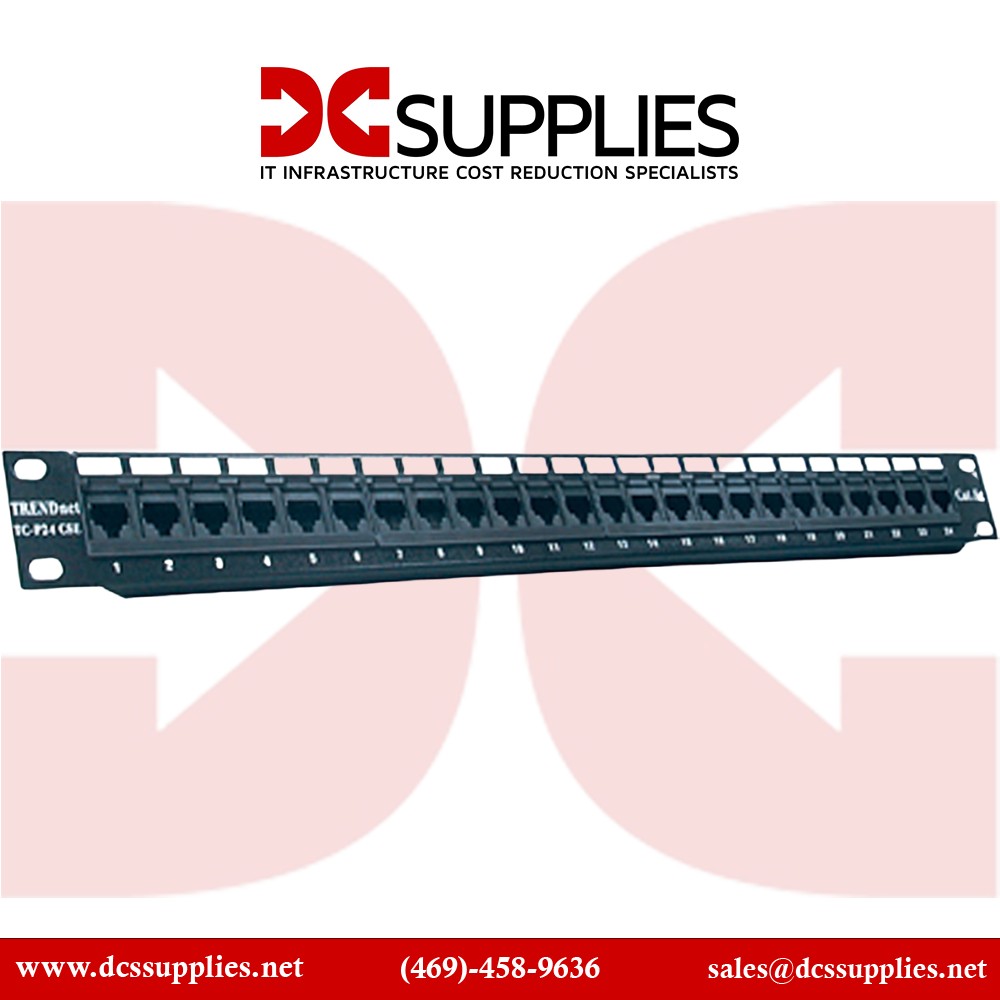

TRENDnet TC-P24C5E Cat5/5e 24-Port Unshielded Patch Panel

New

24-port unshielded Cat5e rack patch panel
×




  • New

Detailed Specifications

TRENDnet TC-P24C5E – 24-Port Cat5e Patch Panel

Overview

The TRENDnet TC-P24C5E is a 24-port, unshielded Cat 5e RJ-45 patch panel designed for structured cabling in enterprise or data center environments. It solves the problem of organizing and managing 24 individual Ethernet lines in a single, 1U rack-mount module. It supports Gigabit (1000Base-T) copper Ethernet, making it suitable for Ethernet, Fast Ethernet, and future-proof Gigabit deployments. The panel is built with CAT 5e grade 110-style Krone connectors, clearly colour-coded for both T568A and T568B wiring schemes, which simplifies installation and reduces error. It is backward compatible with older cabling (CAT 3, CAT 4, CAT 5), so existing infrastructure investments aren’t wasted. The TC-P24C5E complies with EIA/TIA 568A and ISO/IEC 11801 cabling standards, giving assurance of structured cabling quality in campus, branch, or data-center closets.

Key Features

  • 24 RJ-45 ports for Cat 5e unshielded cable

  • 350 MHz performance for high-speed networking

  • Krone style connectors with colour-coded labels

  • Gigabit (1000Base-T) copper Ethernet ready

  • Backward compatible with Cat 3, Cat 4, Cat 5 cabling

Specification :

SpecificationValue
Brand TRENDnet
Part Number TC-P24C5E
Product Type 24-Port Cat5e Unshielded Patch Panel
Number of Ports 24 RJ-45
Connector Style Krone 110-type IDC
Supported Cabling Cat 5e (backward Cat 3/4/5)
Frequency Rating 350 MHz
Ethernet Standard 1000Base-T (Gigabit)
Wiring Scheme T568A and T568B (colour-coded)
Compliance EIA/TIA 568A, ISO/IEC 11801
Mounting 1U rack mount, 19″ rail
Material Copper connectors, panel housing (metal)
Dimensions (L × W × H) ~20.0″ × 2.30″ × 2.20″ (508 mm × 58.4 mm × 55.8 mm)
Weight ~1.68 lb (0.76 kg)
Operating Standard IEEE 802.3ab
Warranty 3 years (per TRENDnet specification)
Colour Black
