Detailed Specifications

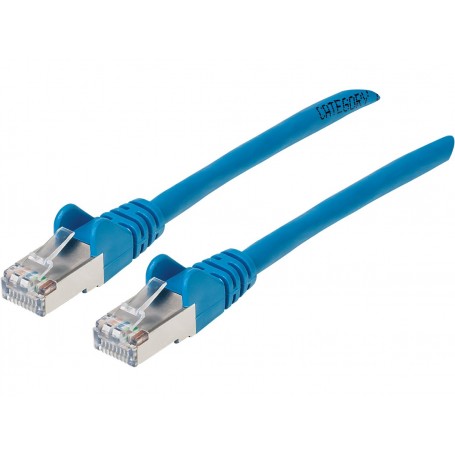

INTELLINET 742207 - Cat6a S/FTP Network Patch Cable
Overview :
The INTELLINET 742207 Cat6a S/FTP Network Patch Cable delivers high-performance, shielded 10 Gigabit Ethernet connectivity engineered for demanding network environments. Designed for IT professionals, network engineers, and systems integrators, it establishes reliable, low-latency interconnects between high-speed active equipment and patch distribution panels.
Constructed in a 1.5-meter (5 ft.) length, this blue patch cable features S/FTP (Shielded/Foiled Twisted Pair) construction.Each pair is wrapped in an individual aluminum-mylar foil screen, and the entire assembly is enclosed in an overall aluminum braid shield to virtually eliminate electromagnetic interference (EMI), radio-frequency interference (RFI), and alien crosstalk.The 26 AWG stranded copper conductors attach to RJ45 male connectors plated with 50-micron gold to maintain optimal conductivity and resist corrosion.Molded snag-free boots protect the locking tabs from breaking during cable management and tight routing.
Certified up to 500 MHz and fully compliant with Augmented Category 6 (Cat6a) standards, the cable supports 10GBase-T networks up to 10 Gbps.It is ideal for data centers, server rooms, high-density patch panels, and enterprise networks carrying heavy data loads or Power over Ethernet (PoE) applications. Do not use in outdoor runs without proper conduit or in plenum spaces requiring fire-rated CMP jacketing.
Key Features :
S/FTP dual shielding (individual foil pairs + overall braid) blocks EMI/RFI.
Supports 10 Gigabit Ethernet data transfer speeds up to 500 MHz.
50-micron gold-plated RJ45 contacts ensure maximum signal integrity.
Snag-free strain relief boots protect connector latches during installs.
Flexible PVC jacket in blue, ideal for structured cable identification.
Specifications :
| Attribute | Specification |
| Brand | INTELLINET |
| Part Number | 742207 |
| Alphanumeric Part Number | IEC-C6AS-BL-5 |
| Product Type | Cat6a S/FTP Network Patch Cable |
| Cable Category | Augmented Category 6 (Cat6a) |
| Shielding Type | S/FTP (Screened Foiled Twisted Pair / PiMF) |
| Conductor Material | 100% Copper |
| Conductor Gauge | 26 AWG Stranded |
| Cable Length | 1.5 m (5.0 ft.) |
| Cable Color | Blue |
| Connector Type | RJ45 Male to RJ45 Male (8P8C) |
| Contact Plating | 50 Micro-inch Gold Plated |
| Boot Type | Molded, Snag-Free Strain Relief |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Frequency Rating | Certified up to 500 MHz |
| Data Rate Support | 10 Gbps (10GBase-T) |
| Standards Compliance | ANSI/TIA-568-C.2, ISO/IEC 11801, UL Listed, RoHS, NDAA |
