Detailed Specifications

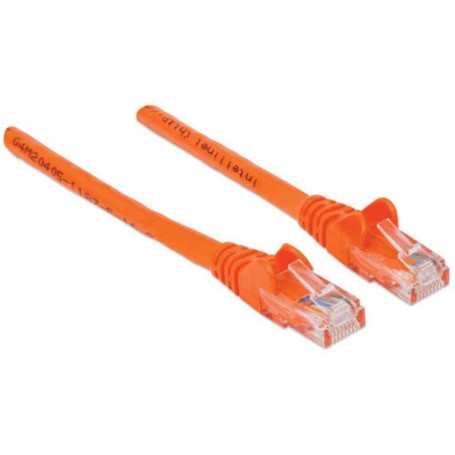

Intellinet 342308 - Cat6 U/UTP Network Patch Cable (15m / 50ft, Orange)
Overview :
The Intellinet 342308 is a high-performance 15.0-meter (50 ft.) Cat6 U/UTP unshielded network patch cable engineered to deliver fast, reliable data transmission across structured networking environments. Ideal for data centers, server rooms, and office infrastructure, this cable seamlessly connects network switches, routers, patch panels, and workstations with maximum signal purity.
Technically, this patch cable supports high-speed data transfer up to 10 Gbps with operating bandwidth frequencies up to 250 MHz in full accordance with ISO/IEC 11801 and EN 50288 standards. Constructed with 100% pure bare copper 24 AWG stranded conductors and 8P8C RJ45 male connectors featuring gold-plated contacts, it guarantees optimal conductivity and long-term corrosion resistance. Additionally, it provides complete support for all Power over Ethernet applications up to IEEE 802.3bt / PoE++ / 4PPoE / Ultra PoE.
Enclosed in a durable orange PVC jacket with molded snag-free strain relief boots, the 342308 patch cord prevents connector latch damage and cable snagging during installation and high-density cable routing.
Key Features :
Cat6 U/UTP network patch cable delivering up to 10 Gbps bandwidth at 250 MHz.
15.0-meter (50 ft.) length with flexible orange PVC jacket for color-coded network management.
100% pure bare copper conductors with gold-plated RJ45 contacts ensure superior signal transmission.
Snag-free booted design protects connector release latches during cable pulls and server rack wiring.
Compatible with Power over Ethernet standards up to IEEE 802.3bt (PoE++ / Ultra PoE).
Fully backward compatible with Category 5e and Category 5 cabling infrastructure.
Specifications :
| Attribute | Specification |
| Brand | Intellinet Network Solutions |
| Part Number | 342308 |
| Alternate Part Number | IEC-C6-OR-50 / UPC: 766623342308 |
| Product Type | Cat6 U/UTP Network Patch Cable |
| Cable Length | 15.0 m (50 ft.) |
| Color | Orange |
| Shielding Type | Unshielded Twisted Pair (U/UTP) |
| Connector Type | Male RJ45 to Male RJ45 (8P8C) |
| Wire Gauge / Conductor | 24 AWG Stranded (100% Pure Bare Copper) |
| Speed / Bandwidth | Up to 10 Gbps / 250 MHz |
| Contact Plating | Gold-Plated Contacts |
| Outer Jacket | Flexible PVC (OD: 5.5 mm / 0.217 in.) |
| PoE Standards | IEEE 802.3af/at/bt (PoE, PoE+, PoE++ / 4PPoE / Ultra PoE) |
| Certifications | ISO/IEC 11801, EN 50288, ANSI/TIA-568.2-D, REACH, RoHS |
