Detailed Specifications

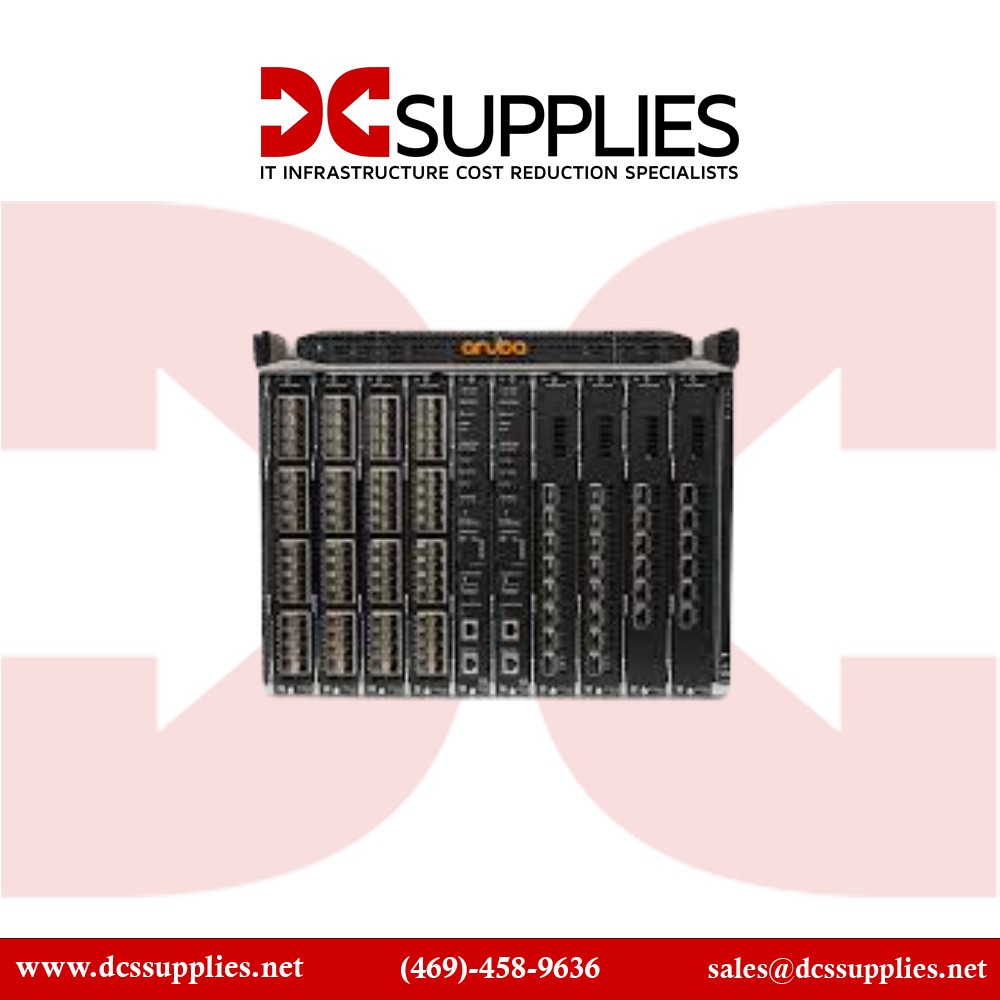

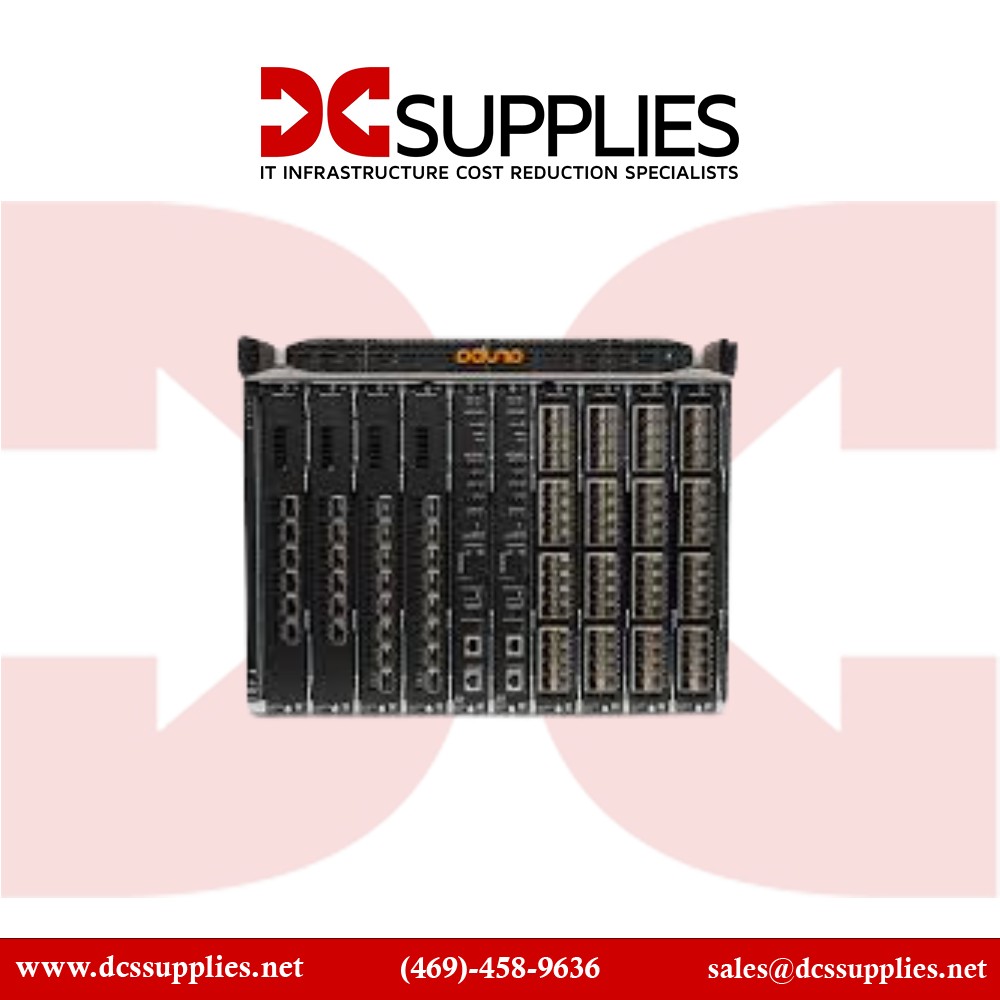

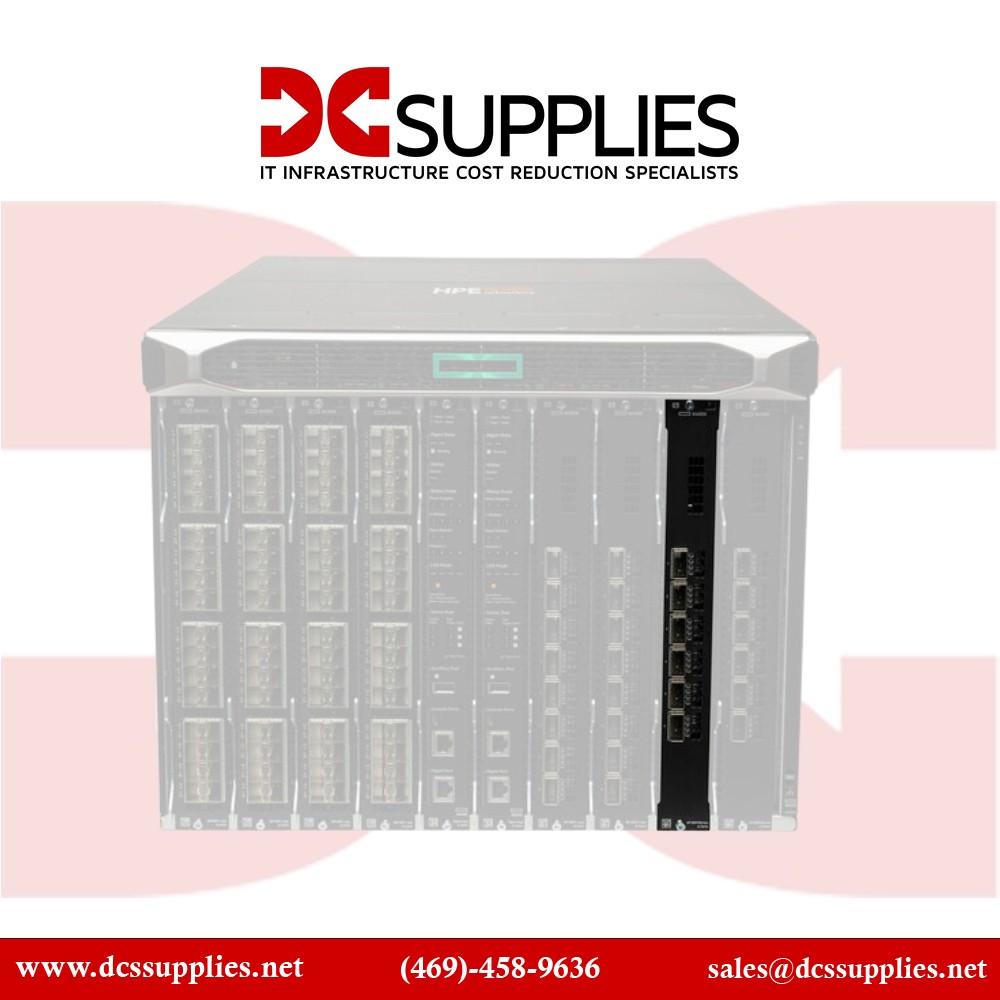

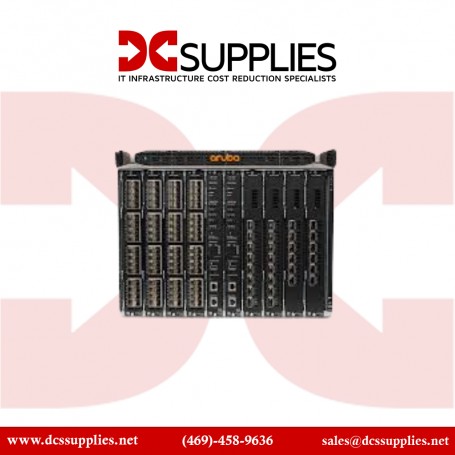

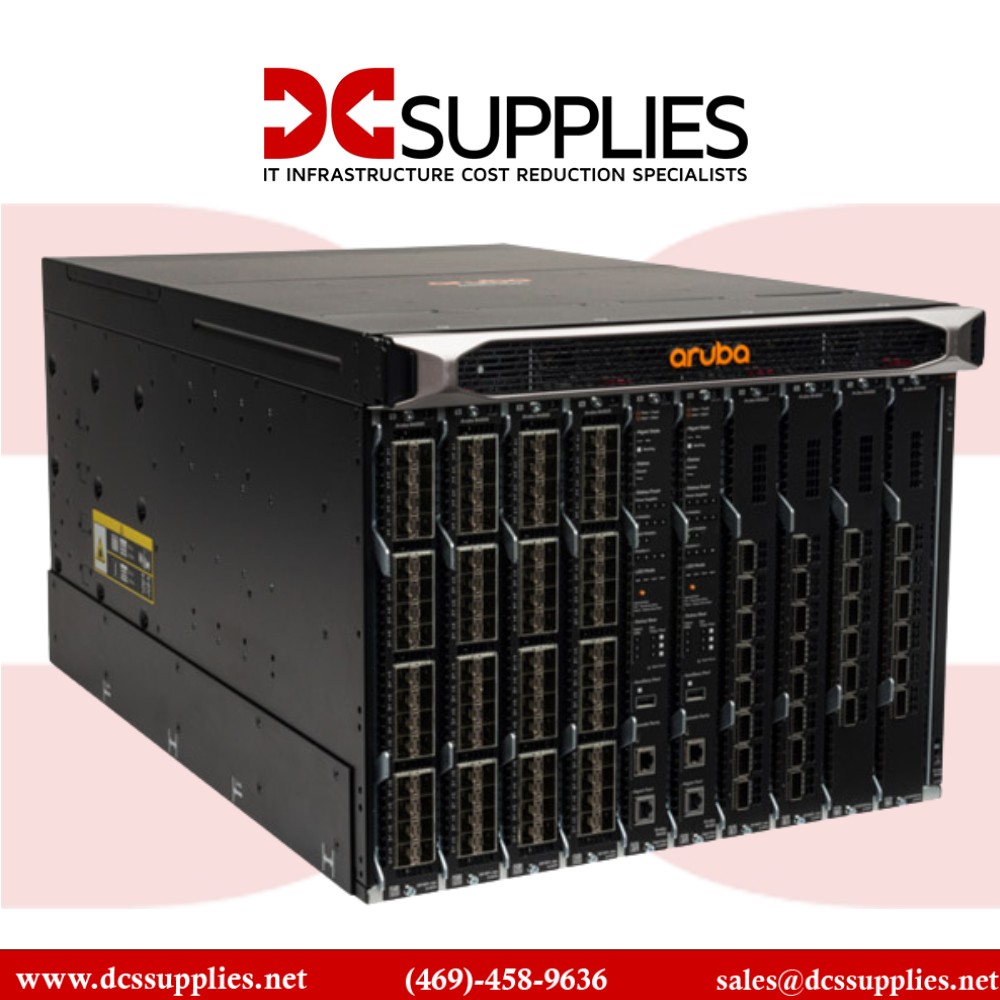

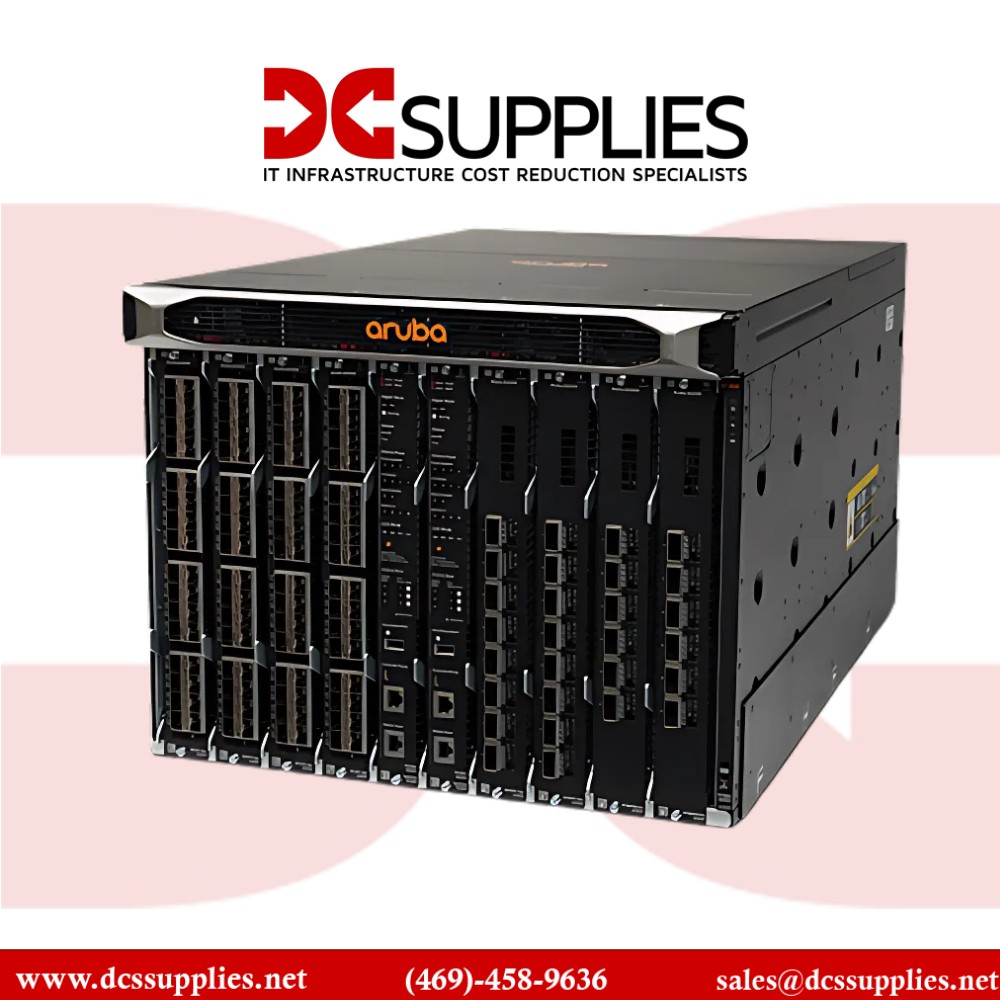

HPE JL366A Aruba 8400X 6-Port 40/100 GbE Advanced Module
Overview
The HPE JL366A is a high-density line module designed for use with the Aruba 8400 series chassis. It provides six QSFP28 ports capable of either 40 Gb/s or 100 Gb/s connectivity, enabling infrastructure engineers to scale bandwidth at the aggregation or core layer. Deployed in demanding campus-core or data-centre environments, this module supports full line-rate forwarding with advanced Layer 2/3 features and integrates with the Aruba AOS-CX operating system for programmability (REST APIs, Python) and telemetry. It fits into the modular chassis of the 8-slot Aruba 8400 platform and supports investment-protection through modular uplink growth and advanced fabric modules.
Key Features
Six QSFP28 ports, each supporting 40 Gb/s or 100 Gb/s speeds.
Plug-in module for the 8-slot Aruba 8400 chassis, enabling modular growth.
Hardware-based forwarding at full line rate for demanding core/aggregation traffic.
Compatible with Aruba AOS-CX OS, enabling REST API and Python-based automation.
Supports advanced routing and segmentation protocols (BGP, EVPN, OSPF, IPv6).
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | JL366A |
| Product Type | Aruba 8400X 6-Port 40/100 GbE QSFP28 Module |
| Ports | 6 × QSFP28 (40/100 Gb/s) |
| Compatible Chassis | Aruba 8400 Series 8-slot chassis |
| Switching/Forwarding Performance | Line-rate forwarding, ~100 Gb/s per port |
| AOS-CX OS Support | Yes |
| Form Factor | Plug-in line-module (module slot) |
| Installed Weight | ~10.8 lbs (4.9 kg) |
| Dimensions (approx) | 11.9 in × 16.6 in × 1.7 in approximately |
| Hardware Table Size | Supports MAC table, route table per chassis specs |
| Layer 2/3 Feature Set | BGP, EVPN, OSPF, VRF, IPv6 |
| High-Availability Fabric | Fits redundant fabric modules in Aruba 8400 chassis |
