Detailed Specifications

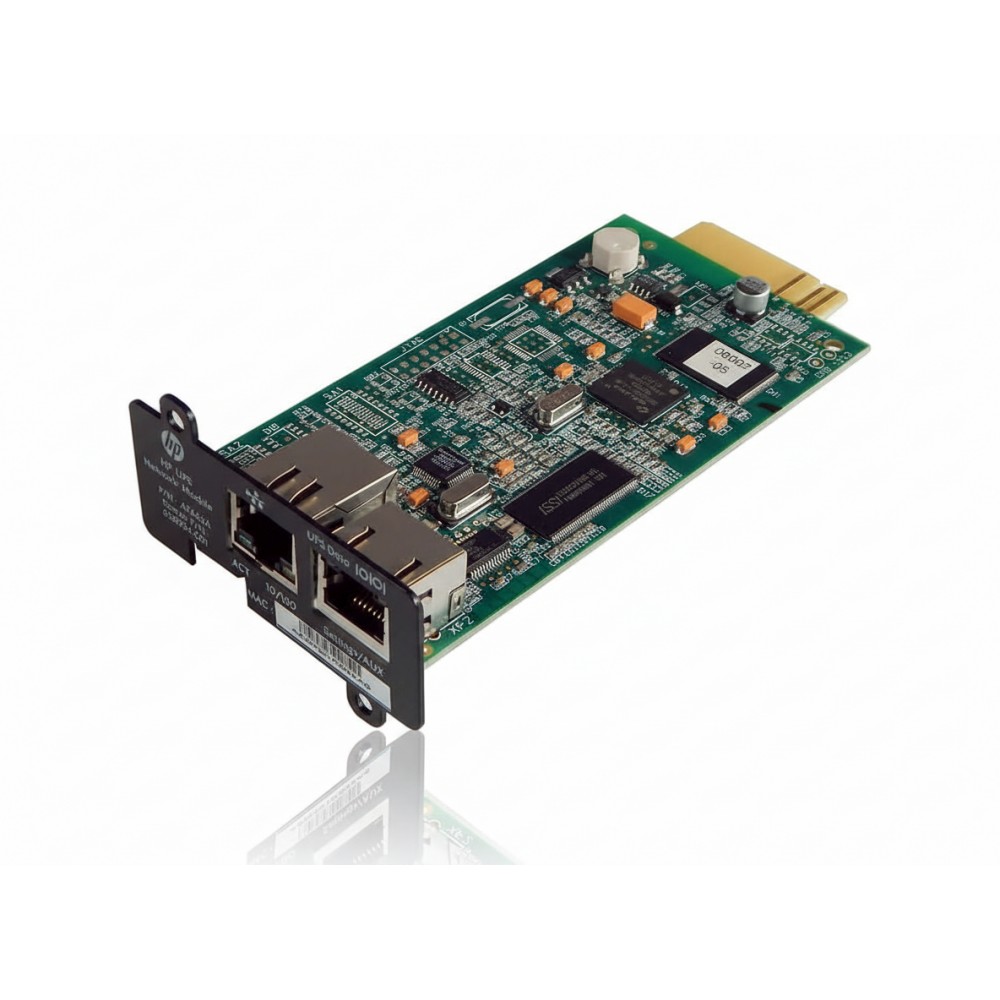

HP 632555-001 - UPS Network Module Mini-Slot Kit
Overview :
The HP 632555-001 is a mini-slot network management module designed for integration into selected HPE uninterruptible power systems (UPS). It enables remote monitoring and control of one or two UPS units over an Ethernet network, supporting alerts, SNMP traps and graceful shutdown of attached loads. This module fits into the mini-slot interface of compatible UPS devices, making it suitable for data-centres, server rooms and enterprise edge installations. In networked or clustered power infrastructure environments the module integrates with HPE Systems Insight Manager (SIM) or other third-party SNMP management software for centralised power-infrastructure management.
Key Features :
Wired RJ-45 Ethernet interface for network connectivity
Supports 10/100 Mbps fast-Ethernet data transfer
HTTP and SNMP protocol support for UPS monitoring
SSL encryption (128-bit) for secure remote access
Mini-slot form-factor for direct UPS chassis integration
Specification :
| Specification | Value |
|---|
| Brand | HP |
| Part Number | 632555-001 |
| Product Type | UPS Network Module (Mini-Slot Kit) |
| Data Transfer Rate | 100 Mbps |
| Interface Type | RJ-45 Ethernet |
| Protocols Supported | HTTP, SNMP |
| Encryption | 128-bit SSL |
| Dimensions (W×H×D) | 5.1 in × 2.4 in × 1.6 in |
| Weight | 1.0 lb |
| Operating Temperature | 50 °F to 104 °F (10 °C to 40 °C) |
| Storage Temperature | −4 °F to 140 °F (−20 °C to 60 °C) |
| Operating Humidity | 20% to 80% non-condensing |
| Compatible UPS Models | HPE R1500 G3, R/T3000 G2 series |
