Detailed Specifications

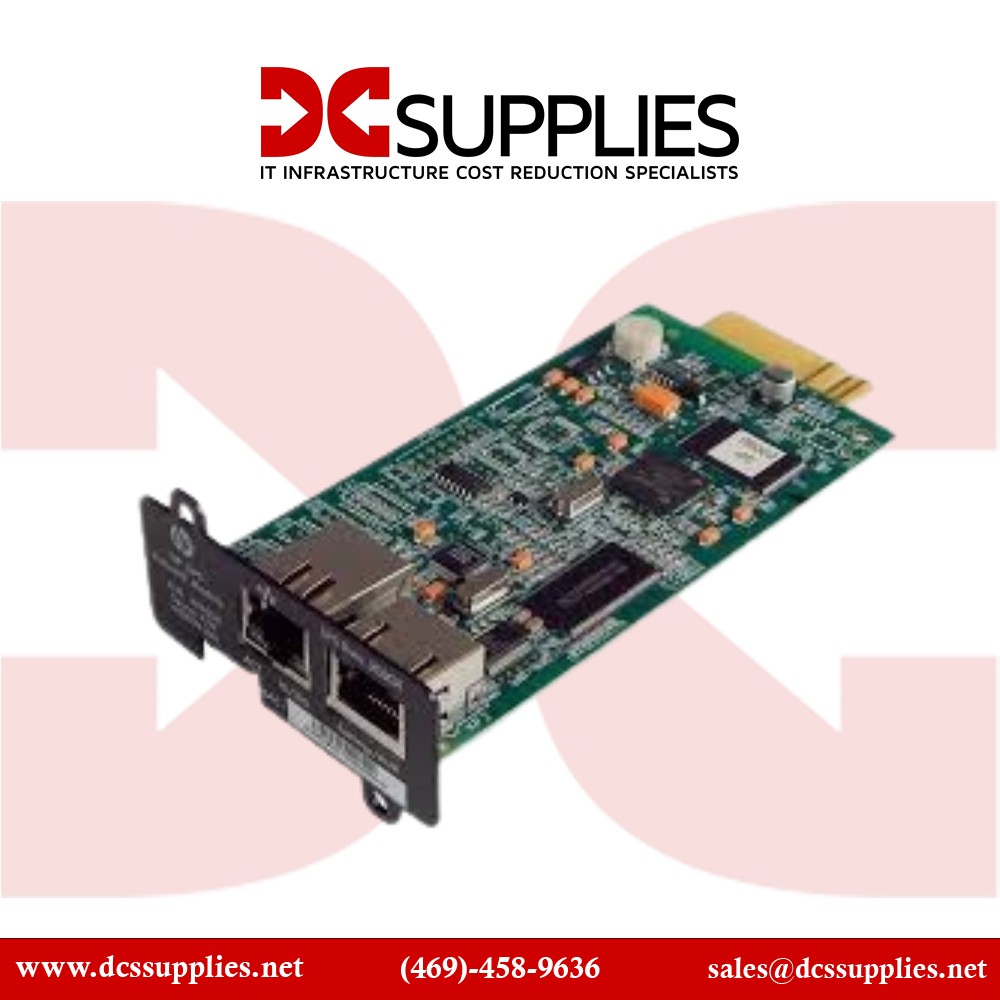

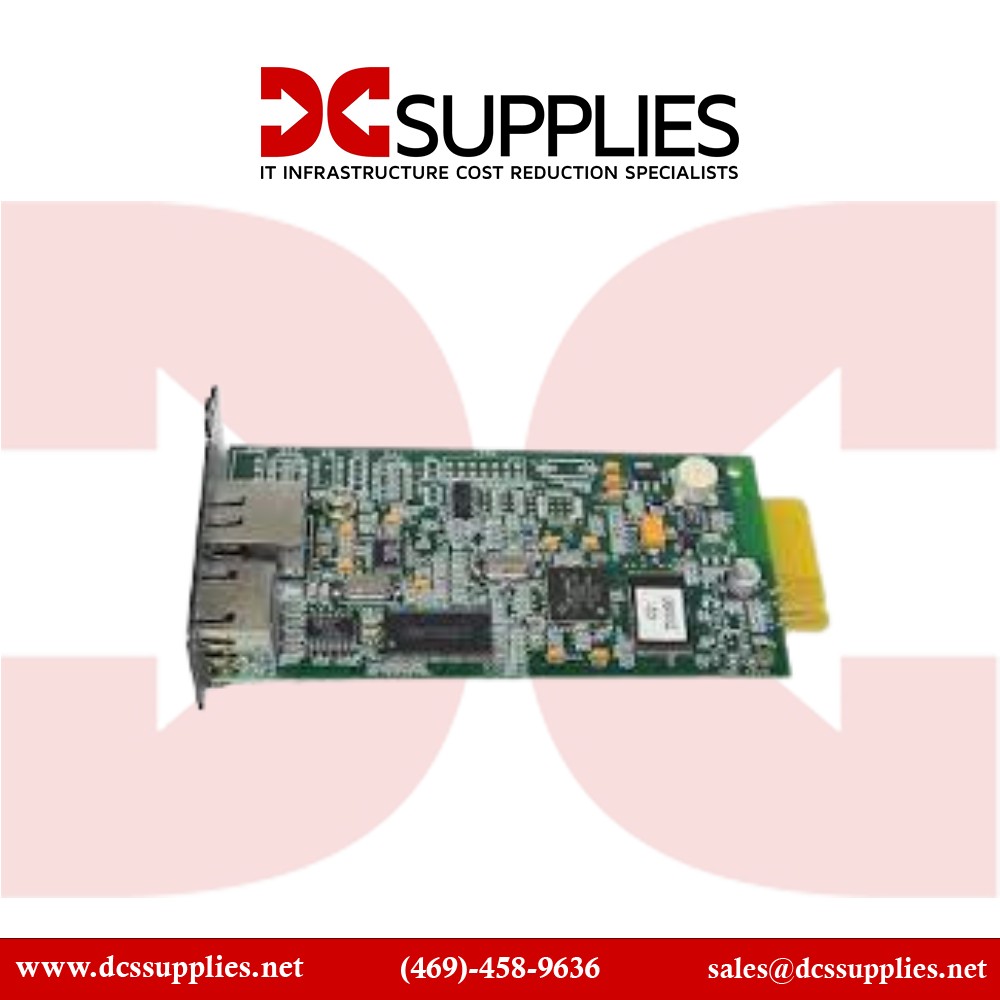

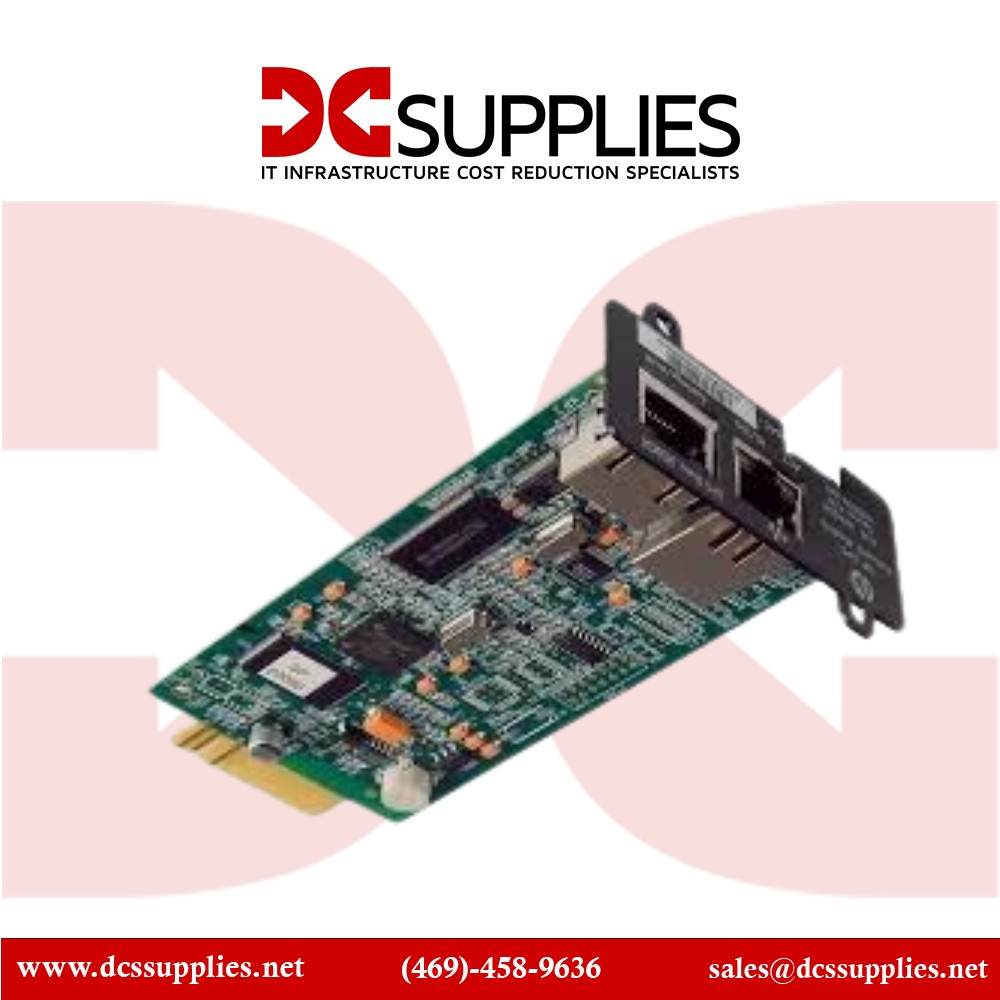

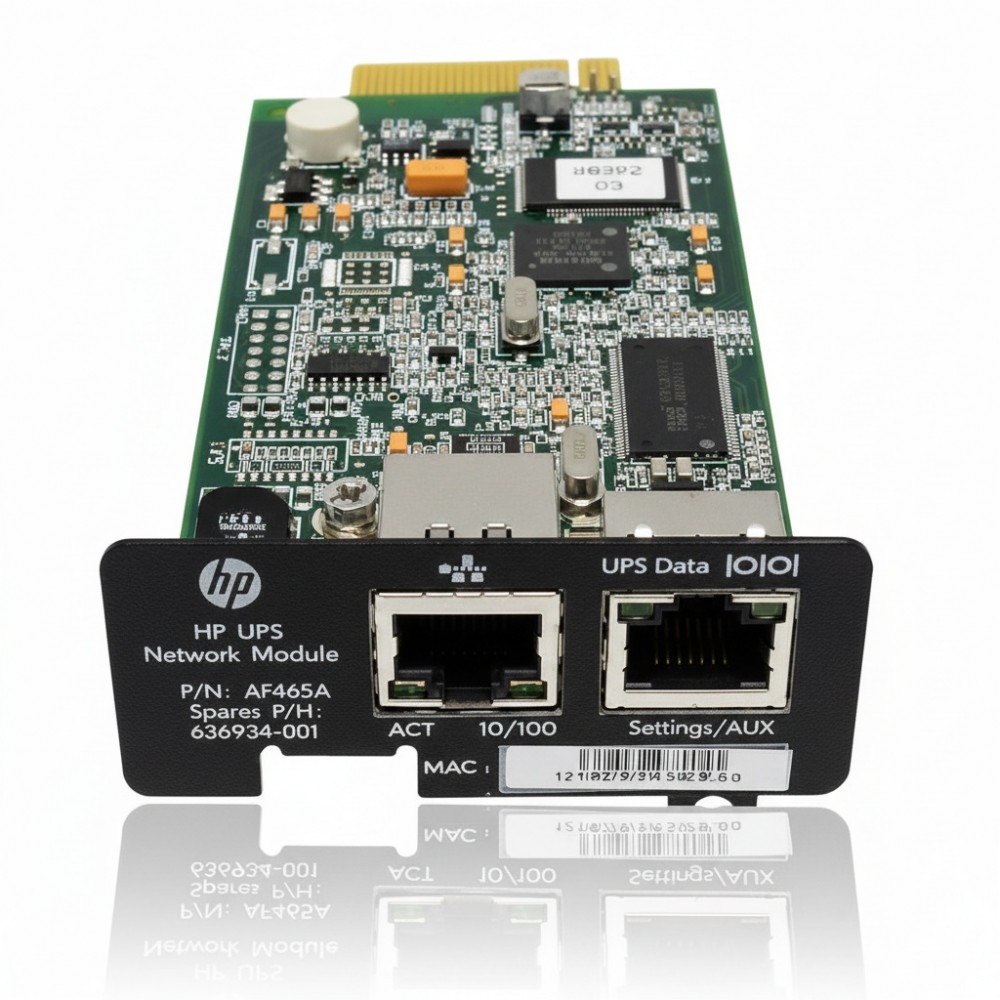

HPE AF465A UPS Network Module Mini-Slot Kit
Overview
The HPE AF465A is a network management module designed for certain HPE uninterruptible power supply (UPS) systems. It allows remote monitoring, configuration and alerting of the connected UPS units through Ethernet, making it easier for data centre operators to integrate power devices into their management systems. The module supports network protocols such as HTTP, SNMP and includes encryption support for secure link-ups. It fits into a dedicated mini-slot in compatible UPS enclosures, providing a compact way to bring UPS telemetry and alerting into the network fabric. Typical applications include enterprise compute or storage racks where remote visibility into power conditions is required, and where the UPS needs to report status to monitoring or management platforms.
Key Features
Ethernet connectivity (10/100 Mb/s) for UPS monitoring and management
RJ-45 network interface plus serial port for configuration
Secure communications via 128-bit encryption
Fits into a UPS mini-slot form-factor with compact footprint
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | AF465A |
| Product Type | UPS Network Module - Mini-Slot Kit |
| Network Interface | 1 × RJ-45 Ethernet |
| Link Speeds | 10 Mb/s, 100 Mb/s |
| Form Factor | Plug-in module (mini-slot) |
| Dimensions (W × D × H) | 5.10″ × 1.60″ × 2.40″ (≈129.5 mm × 40.6 mm × 61 mm) |
| Weight | 1.01 lb (~0.46 kg) |
| Supported Access Protocols | HTTP, SNMP |
| Encryption | 128-bit SSL |
| Compatible UPS Models | R/T2200 G4, R/T3000 G2/G4, R1500 G4, R5000, R7000 |
| Operating Temperature Range | ~10 °C to ~40 °C |
| Operating Humidity Range | 20 % to 80 % non-condensing |
