Overview

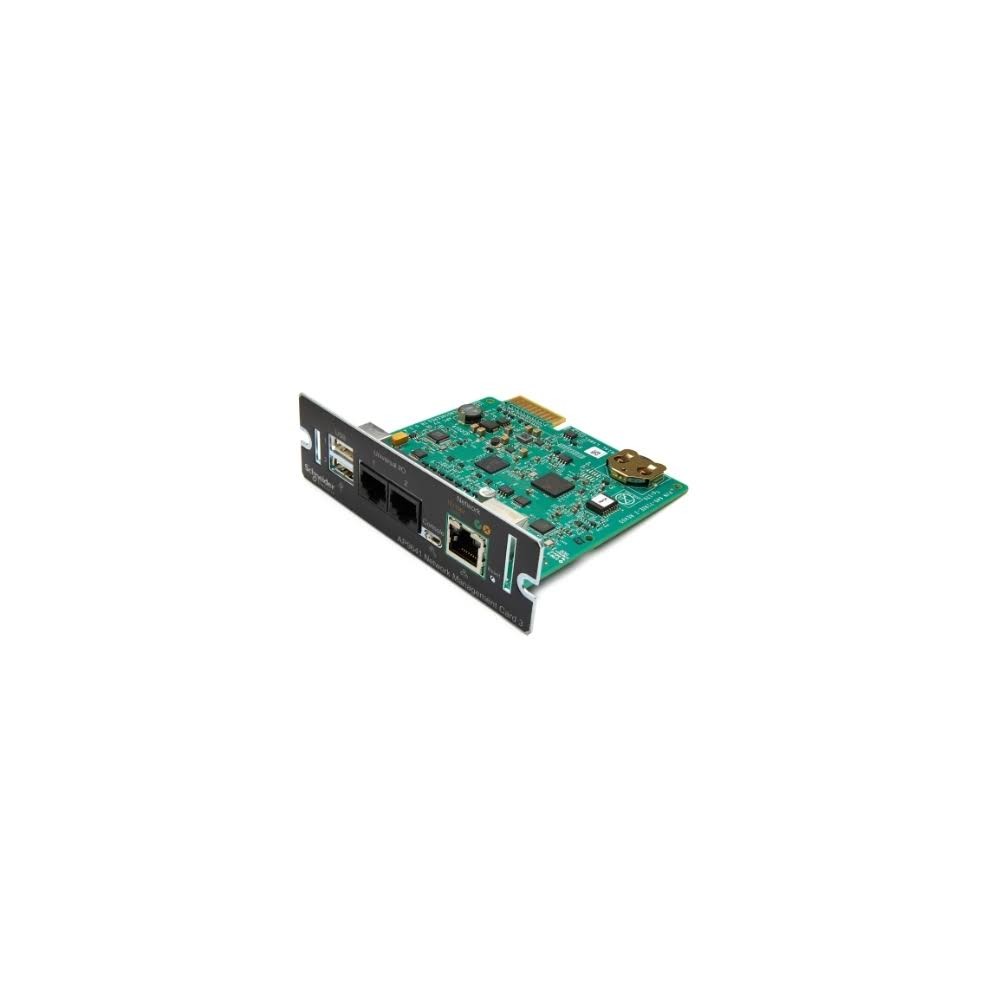

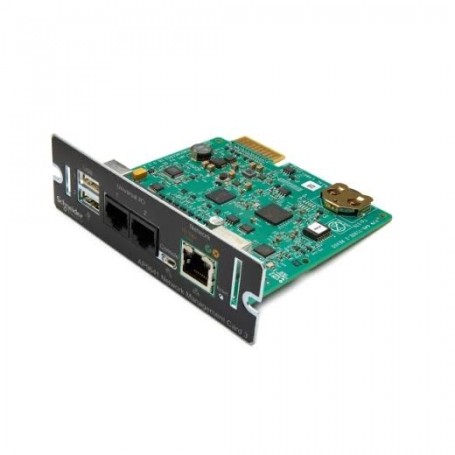

The APC AP9643 Network Management Card 3 is a UPS management accessory designed to provide secure remote monitoring and control for compatible APC UPS systems. It features Gigabit Ethernet connectivity, environmental monitoring support, and Modbus communication capabilities. Administrators can monitor UPS status, review event logs, receive notifications, schedule self-tests, and integrate power equipment into supported data center management systems.
Key Features
- Network Management Card 3 for compatible APC UPS systems.
- Gigabit Ethernet connectivity for remote monitoring and administration.
- Environmental monitoring support with the included temperature sensor.
- Modbus TCP/IP and BACnet/IP integration capabilities.
- Secure management through HTTPS, SSH, and supported SNMP protocols.
- UPS status monitoring, event logs, and notification support.
- Supports PowerChute Network Shutdown integration.
- USB ports for compatible accessories and configuration tasks.
- SmartSlot plug-in design for supported UPS models.
Technical Specifications
| Specification | Details |
|---|
| Brand | APC by Schneider Electric |
| Part Number / MPN | AP9643 |
| Product Type | UPS Network Management Card |
| Product Series | Network Management Card 3 (NMC3) |
| Interface Type | SmartSlot plug-in module |
| Network Connectivity | Gigabit Ethernet (10/100/1000Base-T) |
| Network Connector | 1 × RJ45 Ethernet |
| USB Interfaces | 2 × USB Type-A; 1 × Micro-USB console |
| Sensor Interface | 1 × universal I/O sensor port |
| Modbus Interface | Dedicated Modbus connector |
| Supported Protocols | TCP/IP, IPv4/IPv6, HTTPS, SSH, SNMP, Modbus TCP/IP, BACnet/IP |
| Environmental Monitoring | Supported; temperature sensor included |
| Management Features | Remote monitoring, event logging, notifications, UPS control, and self-test scheduling |
| Authentication | RADIUS support |
| UPS Compatibility | Selected APC Smart-UPS, Smart-UPS On-Line, Smart-UPS Ultra, Galaxy, and Symmetra models; verify exact model compatibility |
| Operating Temperature | -5°C to 45°C (23°F to 113°F) |
| Operating Humidity | 0–95%, non-condensing |
| Mounting | SmartSlot plug-in; not independently rack-mountable |
| Included Accessories | Temperature sensor, USB cable, installation manual |
| Dimensions (H × W × D) | 1.50 × 4.76 × 4.25 inches |
| Net Weight | 0.31 lb (0.14 kg) |
Applications
- Remote UPS monitoring in data centers and server rooms.
- Enterprise network and power infrastructure management.
- Environmental monitoring for supported UPS installations.
- Integration with compatible building and data center management systems.
- UPS event notifications and controlled shutdown workflows.
Compatibility and Installation
The AP9643 installs into a compatible APC UPS SmartSlot. Supported features depend on the UPS model and firmware version. Connect the card to the network, configure its security and management settings, and install the included temperature sensor according to the manufacturer's instructions. Confirm the exact UPS model compatibility before ordering.
Frequently Asked Questions
1. What is the APC AP9643?
It is a Network Management Card 3 that enables remote monitoring and management of compatible APC UPS systems.
2. Does it support Gigabit Ethernet?
Yes. It includes a 10/100/1000Base-T Ethernet interface.
3. Is a temperature sensor included?
Yes. A temperature sensor is included for supported environmental monitoring functions.
4. Does the AP9643 support Modbus?
Yes. It supports Modbus communication and BACnet/IP integration for compatible management environments.
5. Can the card be installed in any APC UPS?
No. Compatibility depends on the UPS model and its SmartSlot support. Check the manufacturer's compatibility documentation before purchase.
6. Can it send UPS alerts remotely?
Yes. Supported notification options include email, Syslog, and SNMP traps, depending on the configuration.
DC Supplies Product Note
DC Supplies recommends verifying the exact part number, UPS compatibility, network requirements, and included accessories before purchase. Availability and warranty coverage should be confirmed at the time of ordering.
