Detailed Specifications

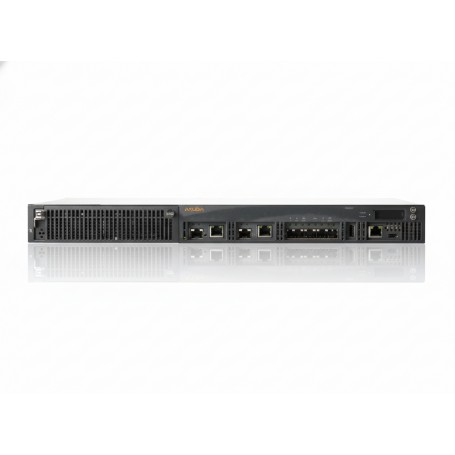

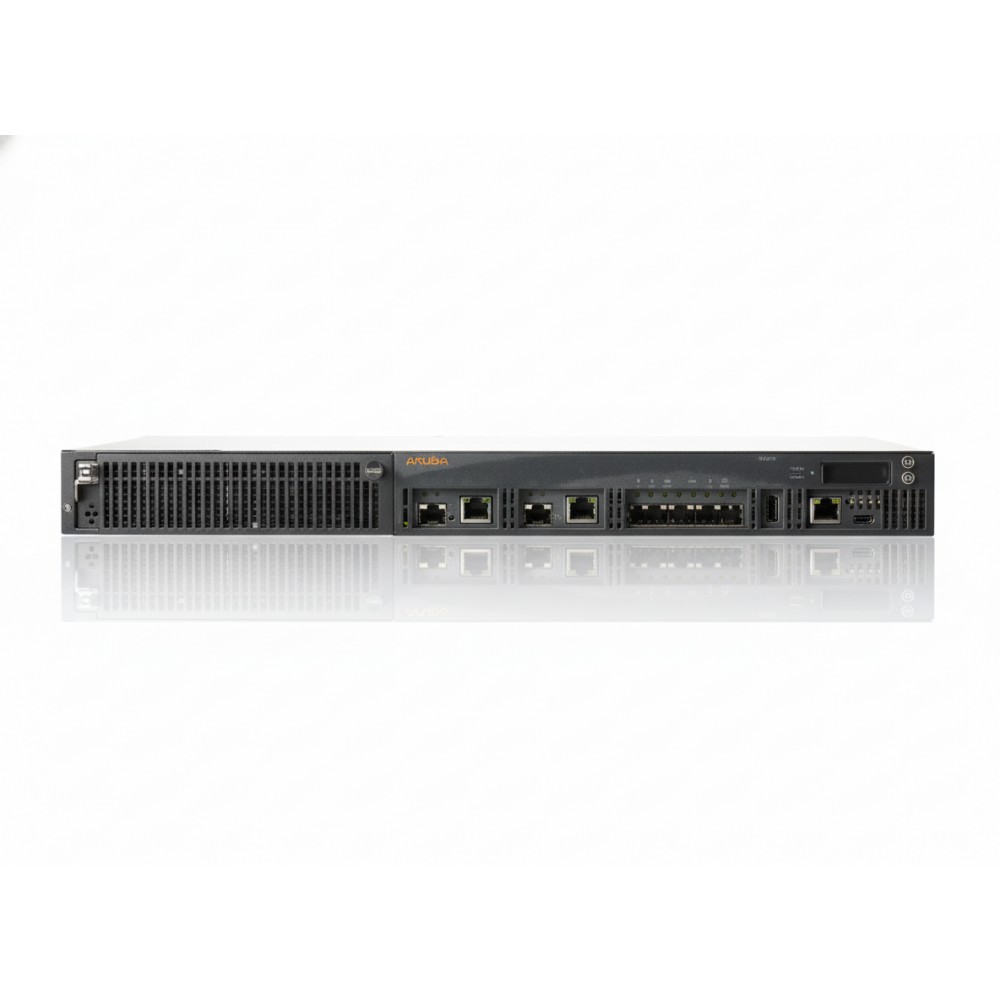

HPE JW744A - Aruba 7210 Mobility Controller
Overview
The HPE JW744A is part of the Aruba 7210 series mobility controllers, engineered for campus networks and large-branch sites that need dedicated appliances to manage wireless access points, enforce enterprise-grade policies, and scale throughput. It provides four 10 Gb SFP+ uplinks plus two dual-media ports (10/100/1000 BASE-T or SFP) to integrate with high-speed backbones and legacy copper links. Deployed in environments such as higher-education campuses, large enterprises or dense event venues, the 7210 supports hundreds of access points and thousands of users while centralizing control. It integrates into the broader Aruba ecosystem (ArubaOS, Mobility Conductor, etc.) and fits into racks for data-center-style deployments.
Key Features
Four dedicated 10 Gb SFP+ uplinks for high-bandwidth aggregation of AP traffic or fiber backbone integration.
Two dual-media ports that support either 1 Gb copper or SFP fiber×helping bridge legacy infrastructure with new high-speed segments.
Designed to support large-scale wireless deployments (hundreds of APs and thousands of users) with centralized management and policy enforcement.
Rack-mount 1U appliance form-factor suited for campus wiring closets or edge data-centre racks×fits existing enterprise infrastructures.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE / Aruba |
| Part Number | JW744A |
| Product Type | Mobility Controller (Wireless LAN / Campus) |
| Port Configuration | 4 × 10 Gb SFP+ uplinks; 2 × dual-media 10/100/1000 T or SFP |
| Maximum AP Support | Up to 512 access points (for 7210 class) |
| Maximum Concurrent Users | Up to ~16,384 clients (for 7210 class) |
| Power Requirements | Internal PSU 350 W AC; 100-240 VAC input |
| Dimensions & Weight | 1U rack (1.75″ H) approx 44.5 cm W × 44.5 cm D; ~10.2 kg |
