Detailed Specifications

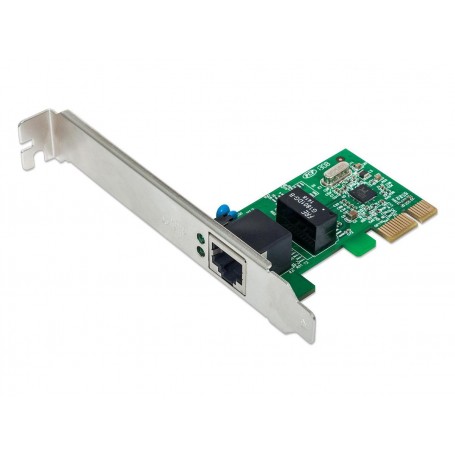

INTELLINET 522533 - Gigabit PCI Express Network Card
Overview :
The INTELLINET 522533 Gigabit PCI Express Network Card is a high-performance internal expansion adapter designed to add high-speed wired Ethernet connectivity to desktop computers and servers. Built for system builders, IT technicians, and workstation users, it provides a reliable hardware upgrade to restore or enhance network performance over standard Cat5e or Cat6 copper cabling without needing fiber infrastructure.
Utilizing a single PCI Express lane (x1), the card delivers auto-negotiating speeds of 10 Mbps, 100 Mbps, and 1000 Mbps. When operating in full-duplex mode, it achieves bandwidth rates up to 2 Gbps, making it well-suited for data-intensive applications such as CAD/CAM rendering, database queries, and large file transfers. Integrated features include Wake-on-LAN (WOL) for remote system power management, crossover auto-correction, and 9 kB jumbo frame support.
Designed for flexible installation across desktop towers and slim PC builds, the card includes both a standard full-height bracket and an interchangeable low-profile 8 cm bracket. It is optimized for workstation, branch office, and desktop deployments. Do not use in legacy PCI bus slots or in systems requiring SFP/SFP+ optical transceivers.
Key Features :
Delivers 2 Gbps full-duplex speed over standard copper cable.
PCI Express x1 interface fits x1, x4, x8, and x16 slots.
Supports Wake-On-LAN for remote desktop power management.
Includes low-profile bracket for small form factor PCs.
Auto-negotiation detects 10/100/1000 Mbps line speeds.
Specifications :
| Attribute | Specification |
| Brand | INTELLINET |
| Part Number | 522533 |
| Product Type | Gigabit PCI Express Network Card |
| Bus Interface | PCI Express v1.0a / v1.1 (x1 lane) |
| Slot Compatibility | PCI-E x1, x4, x8, x16 |
| Network Interfaces | 1x RJ45 (10/100/1000Base-T) |
| Data Transfer Rates | 10/100/1000 Mbps (Half Duplex), 20/200/2000 Mbps (Full Duplex) |
| IEEE Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q |
| Feature Support | Wake-on-LAN (WOL), Auto-MDIX, Jumbo Frames (up to 9 kB) |
| Operating System Support | Windows Vista/7/8/8.1/10/11, Linux |
| Form Factor | Standard and Low-Profile PCI-E Card |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% RH, non-condensing |
