Overview

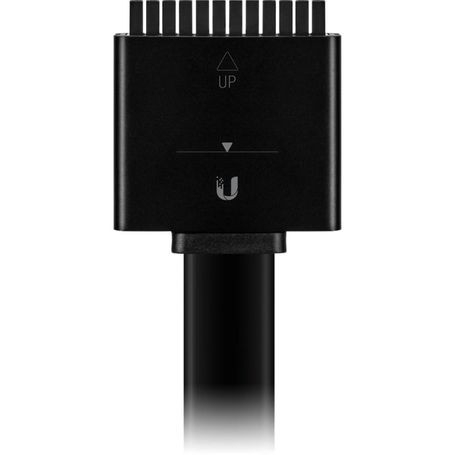

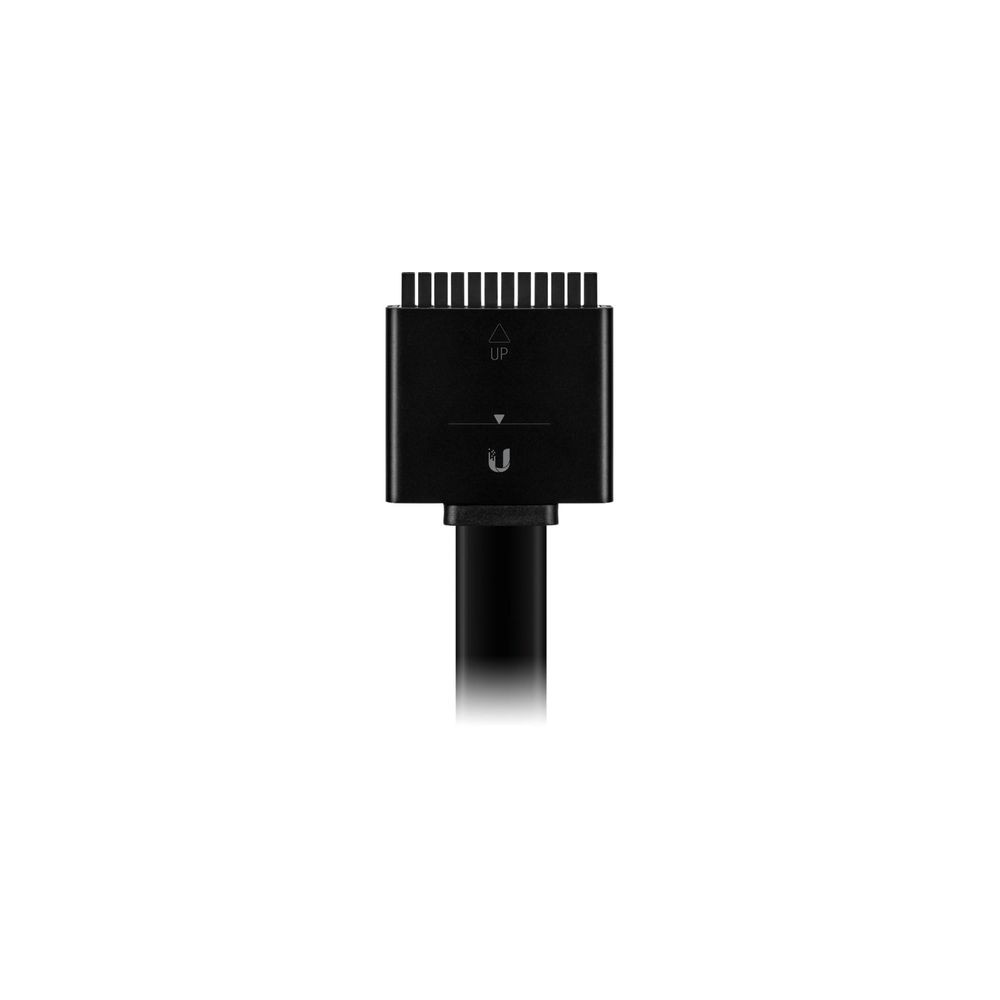

The Ubiquiti USP-CABLE, also designated USP-Cable by Ubiquiti, is a 1.5-meter SmartPower cable designed to deliver redundant power from an associated UniFi SmartPower device to compatible equipment. It is intended for use with Ubiquiti devices equipped with a USP Connect DC input. :contentReference[oaicite:1]{index=1}
Power Connectivity
The USP-CABLE provides the physical power connection between a SmartPower redundant power system and a compatible UniFi device. Ubiquiti specifically documents its use with USP-RPS outputs and supported devices featuring a USP Connect DC input. :contentReference[oaicite:2]{index=2}
Cable Construction
The cable uses a PVC jacket and PVC insulation. Ubiquiti specifies a 1.5 m cable length, 16 AWG conductors for the 18-conductor configuration, and 24 AWG conductors for the 6-conductor configuration. The specified jacket outer dimensions are 9.5 × 23 mm. :contentReference[oaicite:3]{index=3}
Key Features
- 1.5 m SmartPower redundant-power cable
- Designed for compatible UniFi SmartPower connections
- Used with USP Connect DC interfaces
- PVC insulation and cable jacket
- NDAA compliant
Applications
The USP-CABLE is intended for UniFi network deployments that use compatible SmartPower equipment for redundant DC power. A typical application is connecting a USP-RPS output to a supported UniFi device's USP Connect DC input. :contentReference[oaicite:4]{index=4}
DC Supplies Product Note
This is a dedicated SmartPower connection cable rather than a general-purpose Ethernet or AC power cable. Compatibility should therefore be confirmed against the equipment's USP Connect interface before deployment.
Specifications
| Brand | Ubiquiti |
| Part Number / MPN | USP-CABLE |
| Product Type | SmartPower Cable |
| Product Family | UniFi SmartPower |
| Cable Length | 1.5 m (4.9 ft) |
| Insulation Material | PVC |
| Insulation Thickness | 0.35 mm (0.014 in) |
| Insulation Diameter | 2 mm (0.08 in) |
| Conductor Wire Gauge | 16 AWG (18 conductors); 24 AWG (6 conductors) |
| Jacket Material | PVC |
| Jacket Outer Diameter | 9.5 × 23 mm (0.4 × 0.9 in) |
| NDAA Compliant | Yes |
Specifications are based on Ubiquiti's official SmartPower Cable technical specifications and product documentation. :contentReference[oaicite:5]{index=5}
FAQs
What is the USP-CABLE used for?
It is used to deliver redundant power from an associated UniFi SmartPower device to compatible equipment.
What is the cable length?
The USP-CABLE is 1.5 meters (4.9 feet) long. :contentReference[oaicite:6]{index=6}
Can it be used with a USP-RPS?
Yes. Ubiquiti documents the USP Cable as the connection between USP-RPS outputs and compatible UniFi devices with USP Connect DC inputs. :contentReference[oaicite:7]{index=7}
Is the USP-CABLE an Ethernet cable?
No. It is a dedicated SmartPower redundant-power cable and should not be treated as a standard Ethernet cable.
