Detailed Specifications

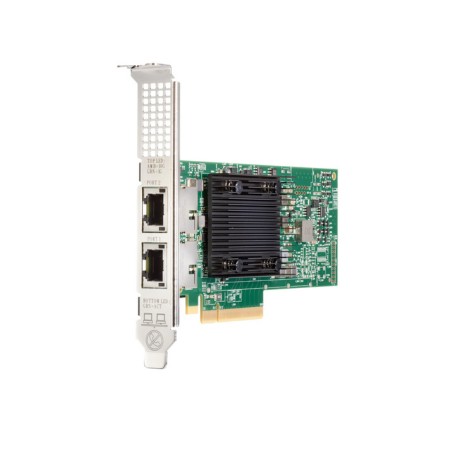

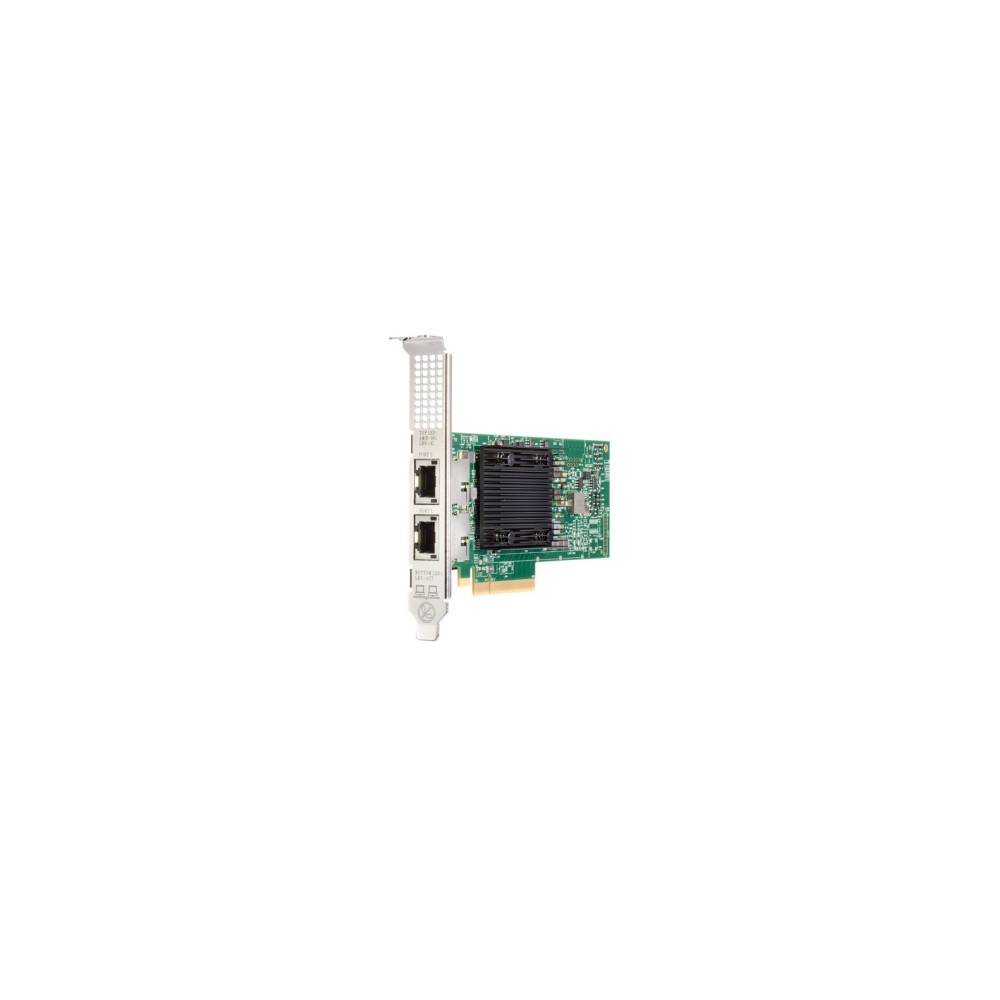

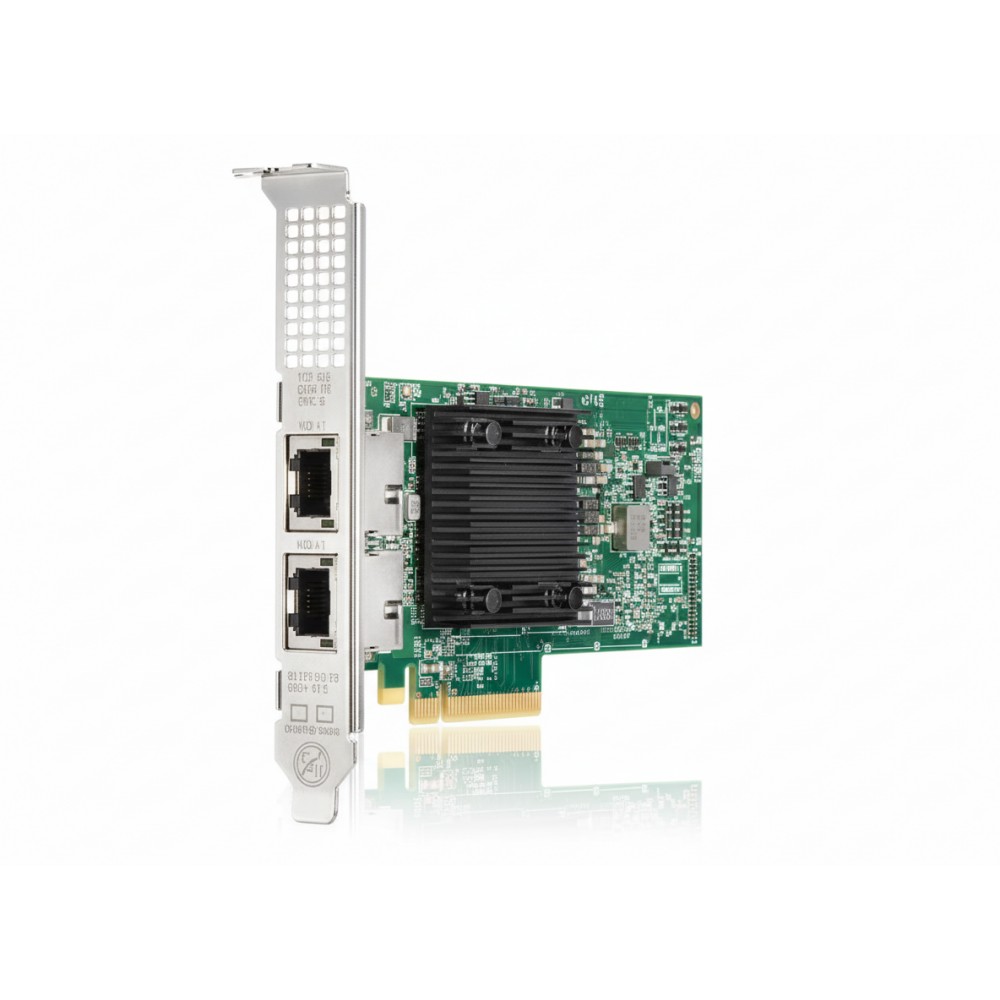

HPE P26253-B21 - 10GbE 2-Port BASE-T Adapter
Overview :
The P26253-B21 is a dual-port 10 Gigabit Ethernet (10GbE) BASE-T network adapter designed for enterprise servers and data-center deployments. It enables two physical RJ-45 copper ports at 10 Gb/s each, allowing higher bandwidth, lower latency connectivity for virtualization, storage-networking, or high-performance compute workloads. This card installs in a PCIe 3.0 x8 slot, making it suitable for modern rack- or blade-based servers in campus, core or edge network segments. It supports offload and management features appropriate for integration with HPE Gen10 and Gen10+ server platforms and can be managed alongside HPE server infrastructure for streamlined deployment.
Key Features :
Dual RJ-45 10 Gb BASE-T ports on one adapter
PCI Express 3.0 x8 host interface
Supports full 10 Gb/s line-rate per port
Compatible with HPE Gen10/Gen10+ servers
Supports OCP 3.0 open-compute form-factor
Specification :
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | P26253-B21 |
| Product Type | 10 GbE 2-Port BASE-T Network Adapter |
| Controller | Broadcom BCM57416 |
| Data Rates | 10 Gb/s (per port) |
| Ports | 2× RJ-45 copper |
| Bus Interface | PCIe 3.0 x8 |
| Media Support | Twisted-pair copper (10GBASE-T) |
| Form Factor | Stand-up half-height/full-height card |
| Compatible Servers | HPE Gen10 / Gen10+ family |
| Standards Compliance | IEEE 802.3an, IEEE 802.3ab, OCP 3.0 |
| Operating Temperature | 0 °C to 55 °C |
| Power Consumption | Verified ~14.6 W operational* |
| Dimensions (W×H) | 5.75″ × 2.72″ (~146 mm × 69 mm) |
| Shipping Weight | 0.24 lbs (110 g) |
