Detailed Specifications

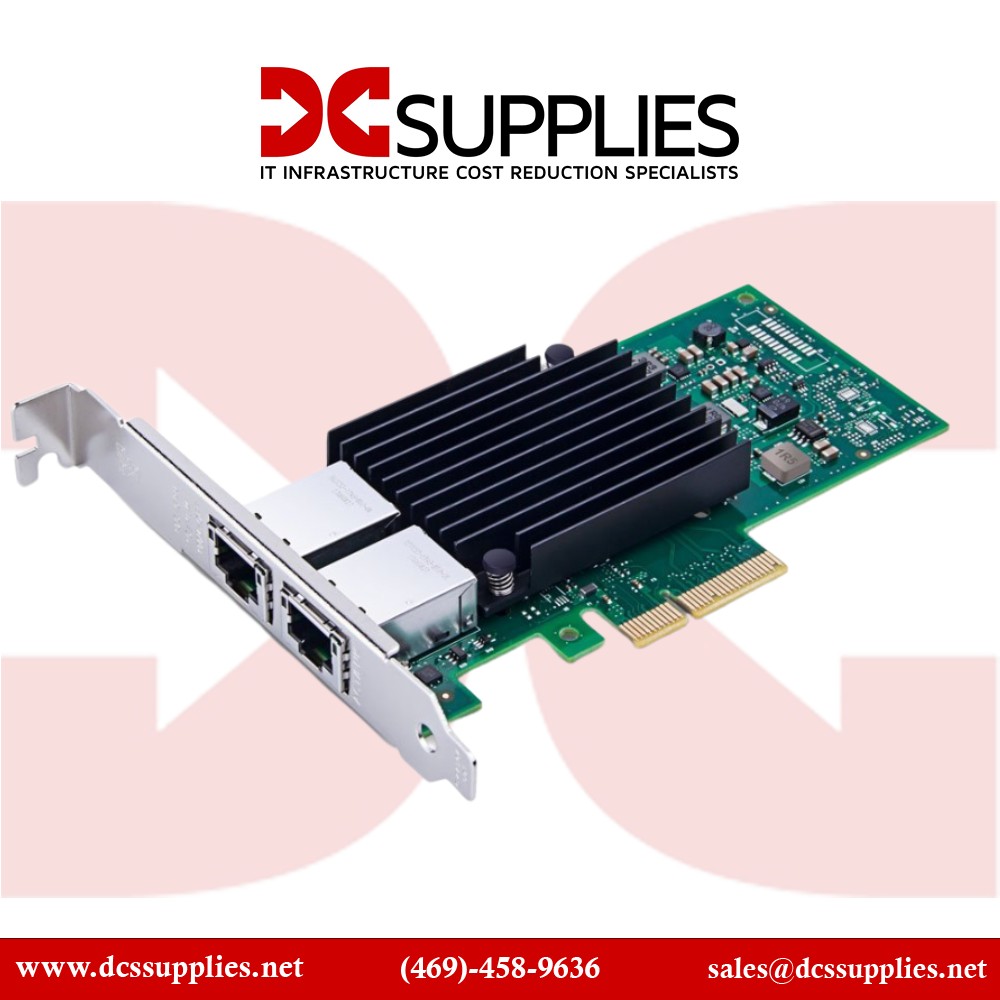

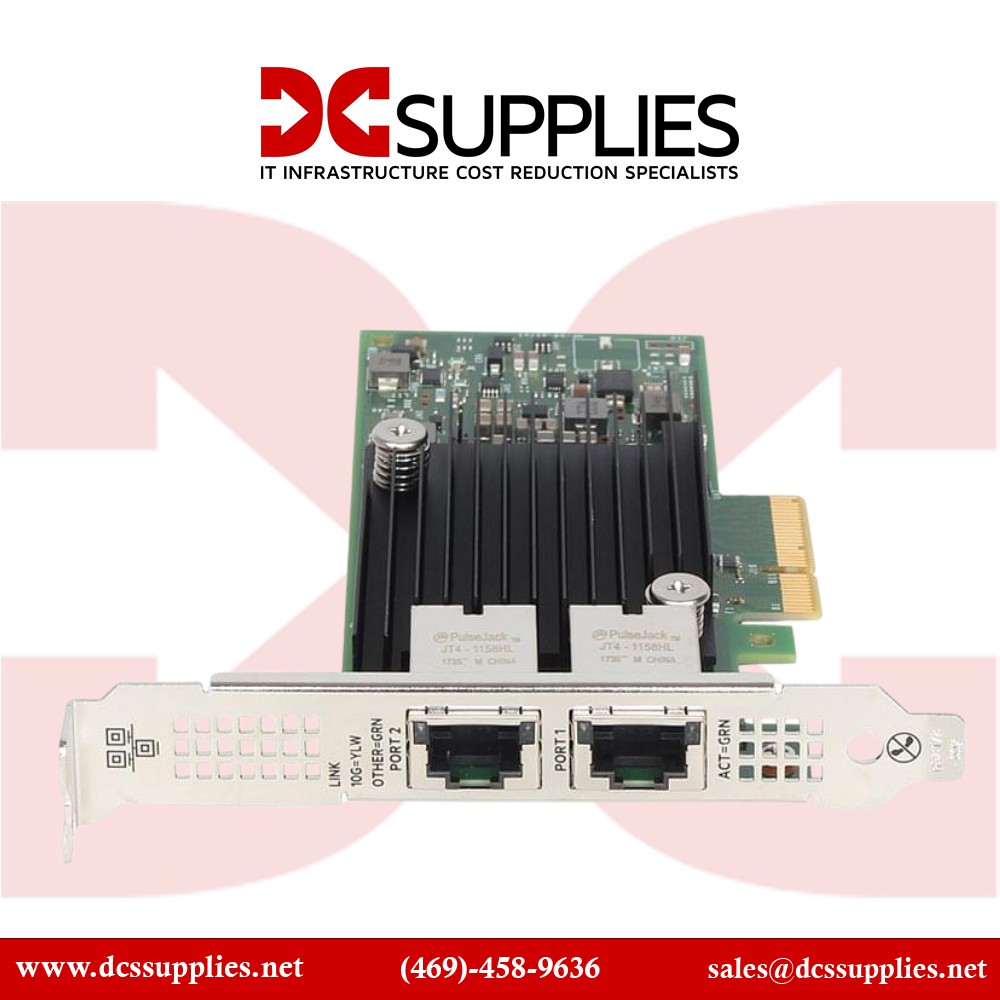

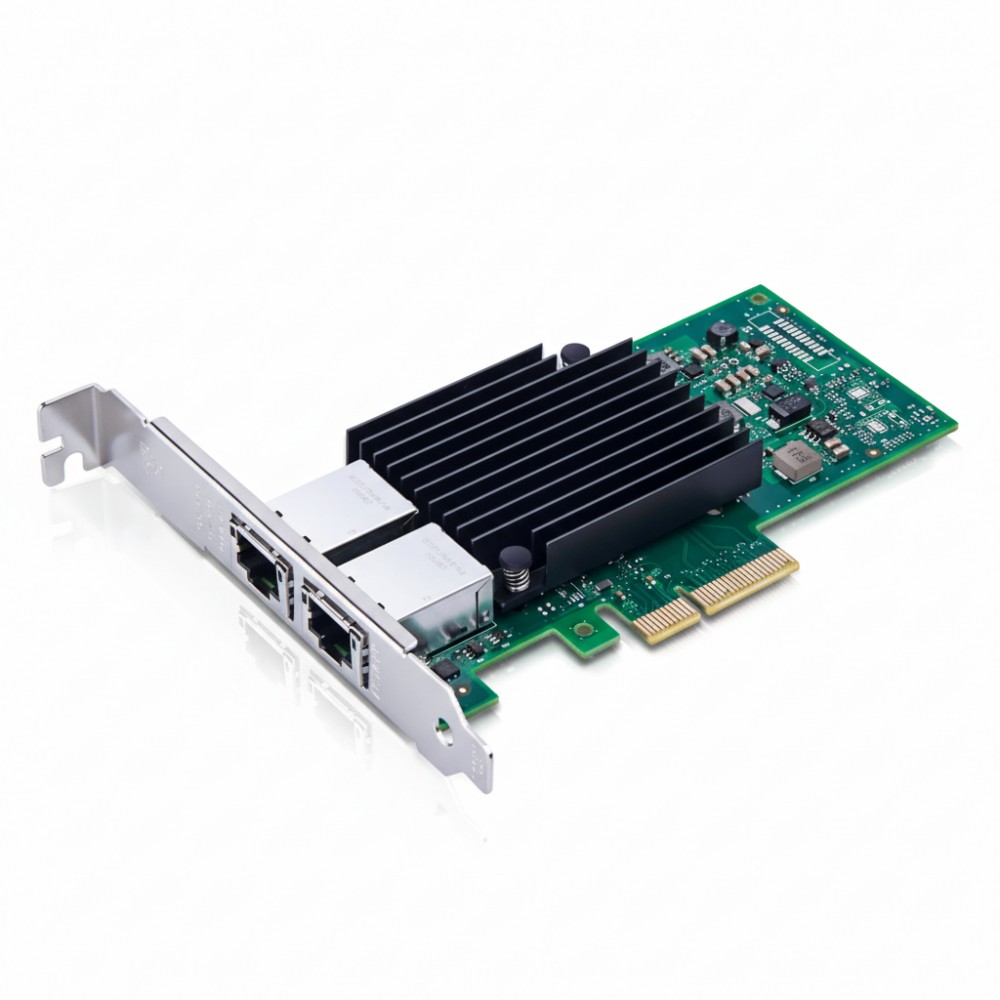

HPE 817738-B21 - 10GbE 2-Port 562T Adapter
Overview :
The HPE 817738-B21 is a dual-port 10 GbE network adapter designed for IT engineers deploying high-throughput servers, enabling two simultaneous 10 Gb/s RJ-45 Ethernet links. It integrates an Intel X550 family controller on a PCIe 3.0 x4 plug-in card, supporting 10GBASE-T over Cat6A up to 100 m. The adapter is suitable for enterprise data centres, virtualization hosts, and high-performance compute clusters, fitting standard rack-mounted servers and edge nodes. It supports advanced offload features such as SR-IOV, tunnelling (VXLAN/NVGRE), and DMA bypass to reduce CPU overhead and accelerate I/O traffic. It integrates directly with HPE ProLiant and Apollo Gen10 platforms and is compatible with standard network management tools for configuration and monitoring.
Key Features :
Dual RJ-45 10 Gb ports on single adapter card
PCI Express 3.0 x4 host interface for full line rate
Intel X550 family controller for offload and virtualization
Supports 10GBASE-T over Cat6A cabling up to 100 m
Single-Root I/O Virtualization (SR-IOV) enabled for VM segmentation
Specifications :
| Specification | Detail |
|---|
| Brand | HPE |
| Part Number | 817738-B21 |
| Product Type | Network Adapter - Dual-Port 10 GbE 562T |
| Controller | Intel X550-AT2 |
| Bus Interface | PCI Express 3.0 x4 |
| Network Ports | 2 × 10 Gb/s RJ-45 (10GBASE-T) |
| IEEE Standards | 802.3ae, 802.3-bz, 802.3ad, 802.1Qaz etc. |
| Typical Power Consumption | 11.8 W |
| Maximum Power | 12.7 W |
| Dimensions (H × W × D) | 7.50 in × 2.25 in × 9.50 in |
| Weight | 1.0 lb |
| Operating Temperature | 5 °C to 60 °C (41 °F to 140 °F) |
| Non-Operating Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Humidity (Operating) | 8% to 90% RH (non-condensing) |
