Detailed Specifications

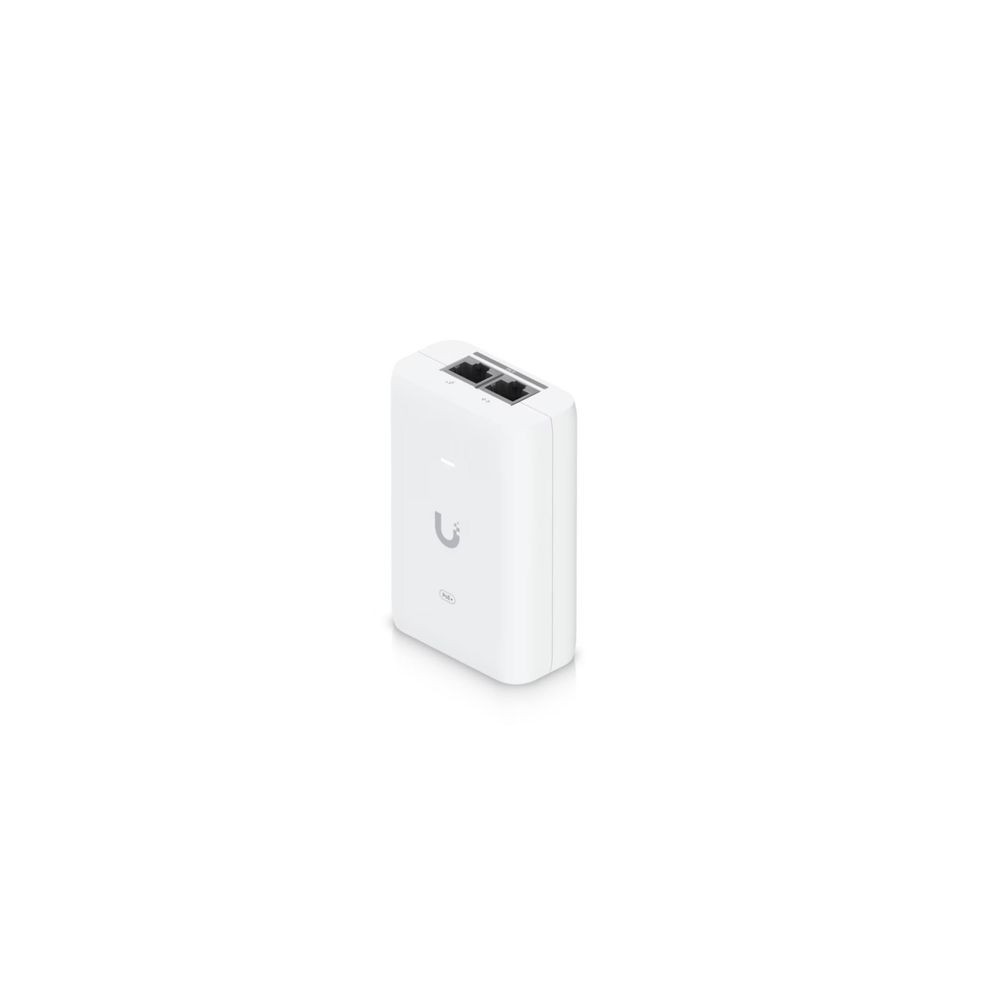

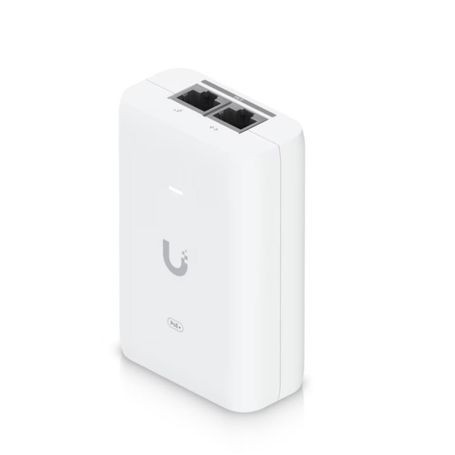

The Ubiquiti UACC-POE+-2.5G is a UniFi 2.5G PoE+ adapter designed to power compatible PoE+ devices while providing a Multi-Gigabit Ethernet connection. It delivers up to 30W of PoE+ power and supports 2.5GbE network connectivity for deployments where a standard Gigabit PoE adapter would limit the network interface.
Power and Network Connectivity
The adapter accepts 100–240V AC at 50/60Hz and provides 48V DC at 0.65A. Its shielded RJ45 data input supports Gigabit and 2.5GbE connectivity, while PoE power is delivered using 2-pair powering on pins 4, 5 (+) and 7, 8 (-).
Protection and Electrical Performance
The UACC-POE+-2.5G incorporates surge and clamping protection for both data and power paths. Ubiquiti specifies 11V data and 60V power clamping protection, up to 1,500A surge discharge on the power side, and a 36A peak pulse current rating for data protection.
Key Features
- Up to 30W of PoE+ output power
- 2.5GbE Multi-Gigabit LAN connectivity
- 48V DC output at 0.65A
- 100–240V AC input at 50/60Hz
- Surge, clamping, and overcurrent protection
Applications
- Powering compatible UniFi PoE+ access points
- Providing PoE+ power where a PoE switch port is unavailable
- Deployments requiring 2.5GbE uplink connectivity
- Multi-Gigabit wireless and network infrastructure
DC Supplies Product Note
The UACC-POE+-2.5G combines PoE+ power delivery with a 2.5GbE network interface, making it suitable for compatible UniFi devices whose Ethernet interface can benefit from Multi-Gigabit connectivity.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-POE+-2.5G |
|---|
| Product Type | PoE+ Adapter |
|---|
| Product Line | UniFi |
|---|
| Maximum PoE Output | 30W |
|---|
| Output Voltage | 48V DC @ 0.65A |
|---|
| AC Input | 100–240V AC, 50/60Hz |
|---|
| Network Connectivity | 2.5GbE Multi-Gigabit |
|---|
| Data Interface | Shielded RJ45 |
|---|
| Powering Method | 2-pair, pins 4, 5 (+) and 7, 8 (-) |
|---|
| Input Current | 0.75A maximum |
|---|
| Efficiency | >87% |
|---|
| Clamping Protection | 11V data, 60V power |
|---|
| Maximum Surge Discharge | 1500A (8/20 μs) power |
|---|
| Peak Pulse Current | 36A (10/1000 μs) data |
|---|
| Operating Temperature | 0 to 40 °C |
|---|
| Storage Temperature | -30 to 70 °C |
|---|
| Operating Humidity | 10–95% noncondensing |
|---|
| NDAA Compliant | Yes |
|---|
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
|---|
FAQs
What is the maximum PoE output of the UACC-POE+-2.5G?
The adapter provides up to 30W of PoE+ output.
Does the UACC-POE+-2.5G support 2.5GbE?
Yes. It provides a Multi-Gigabit Ethernet connection supporting 2.5GbE connectivity.
What AC input voltage does it support?
It accepts 100–240V AC at 50/60Hz.
What DC output does the adapter provide?
Ubiquiti specifies a 48V DC output at 0.65A.
What type of PoE powering does it use?
The adapter uses 2-pair powering through pins 4, 5 (+) and 7, 8 (-).
