Overview

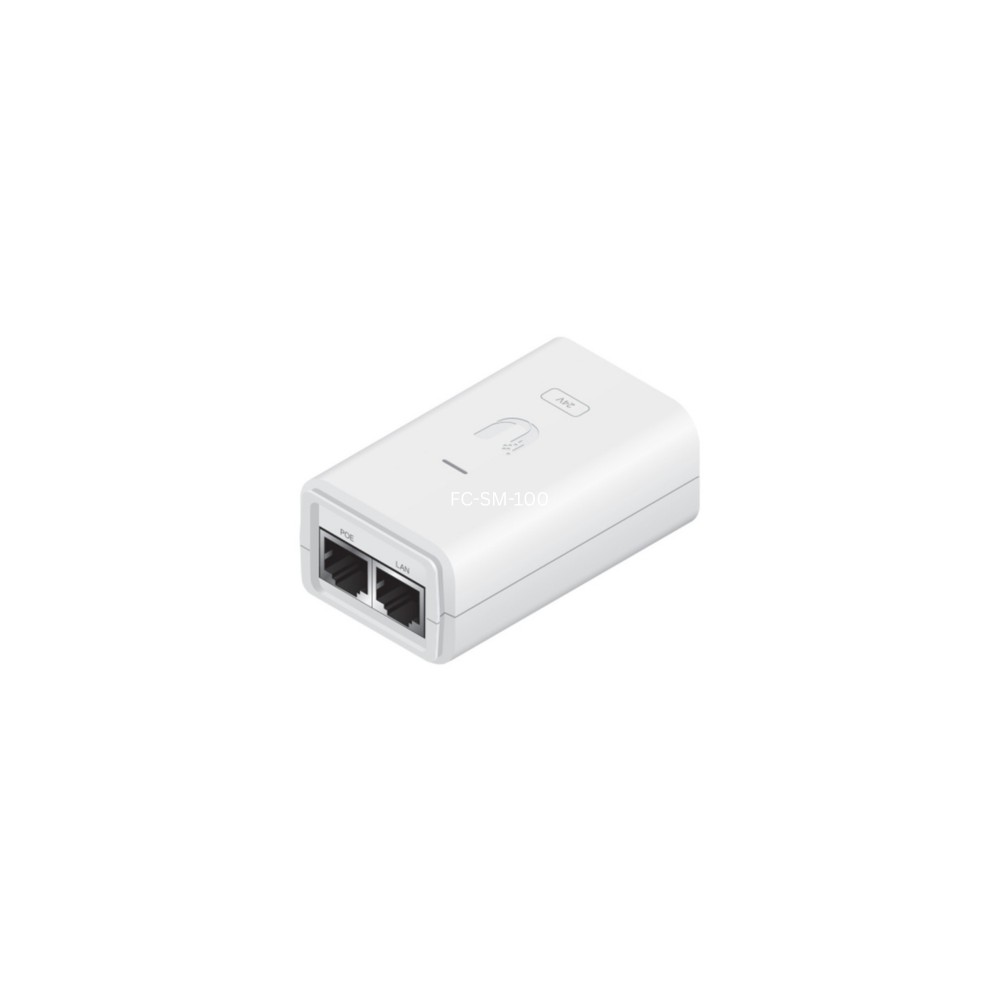

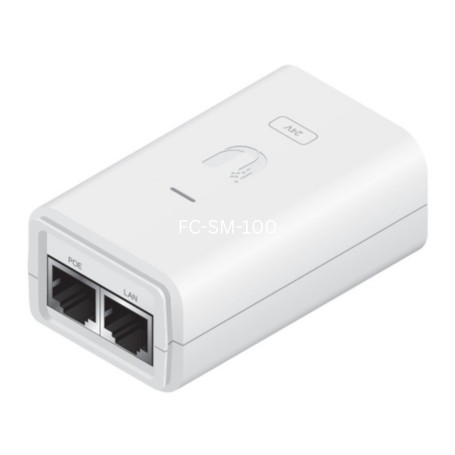

The Ubiquiti POE-15-12W is a 15V PoE adapter designed to power compatible Ubiquiti PoE devices. It provides 15V DC at 0.8A, for a 12W output, from a 100–240V AC input.
Power Delivery
The adapter uses 2-pair PoE with pins 4 and 5 positive and pins 7 and 8 negative. It does not support 4-pair powering and provides 15V DC at 0.8A.
Protection
POE-15-12W includes differential- and common-mode surge protection, 11V data and 60V power clamping protection, and an earth-grounded AC connection. Ubiquiti specifies a maximum surge discharge of 1500A for an 8/20 μs waveform and a peak data pulse current of 36A for a 10/1000 μs waveform.
Connectivity
The adapter uses a shielded RJ45 socket for the data input and PoE connection. The POE-15-12W does not provide a Gigabit LAN port or LAN activity indicator.
Key Features
- 15V DC at 0.8A output
- 12W PoE output capacity
- 2-pair PoE using pins 4, 5 and 7, 8
- Differential- and common-mode surge protection
- 100–240V AC input with IEC-320 C6 connector
Applications
The POE-15-12W is intended for powering compatible Ubiquiti PoE equipment where a 15V, 12W PoE adapter is required. Ubiquiti lists compatibility across several product families, but the connected device should always be checked for the required PoE voltage and power specification.
DC Supplies Product Note
The POE-15-12W is a 15V adapter, not a 24V or 48V model. Its exact 15V DC output and 12W capacity should be matched to the connected device before installation.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | POE-15-12W |
|---|
| Product Type | PoE Adapter |
|---|
| Output Voltage | 15V DC |
|---|
| Output Current | 0.8A |
|---|
| Output Power | 12W |
|---|
| Rated Input Voltage | 100–240V AC at 50/60Hz |
|---|
| Input Current | 0.3A at 120V AC; 0.2A at 240V AC |
|---|
| Powering Method | 2-pair PoE |
|---|
| Positive Power Pins | 4, 5 |
|---|
| Negative Power Pins | 7, 8 |
|---|
| 4-Pair Powering | Not supported |
|---|
| Data IN / PoE | Shielded RJ45 socket |
|---|
| Gigabit LAN Port | No |
|---|
| LAN Activity Indicator | No |
|---|
| Remote Reset Capability | No |
|---|
| Reset Button | No |
|---|
| Efficiency | 75% or higher |
|---|
| Output Ripple | 1% maximum |
|---|
| Switching Frequency | 50 kHz |
|---|
| Line Regulation | ≤3% |
|---|
| Load Regulation | ≤5% |
|---|
| AC Connector | IEC-320 C6 |
|---|
| Surge Protection | Differential and common mode |
|---|
| Clamping Protection | 11V data, 60V power |
|---|
| Maximum Surge Discharge | 1500A (8/20 μs) power |
|---|
| Peak Pulse Current | 36A (10/1000 μs) data |
|---|
| Shunt Capacitance | <5 pF data |
|---|
| Response Time | <1 ns |
|---|
| Dimensions | 85 × 44 × 29 mm |
|---|
| Weight | 91.7 g |
|---|
| Operating Temperature | 0 to 40°C |
|---|
| Storage Temperature | -30 to 70°C |
|---|
| Operating Humidity | 35 to 95% noncondensing |
|---|
| Certifications | CE, FCC, IC, UL |
|---|
FAQs
What voltage does the POE-15-12W provide?
It provides 15V DC at 0.8A, with a 12W output rating.
Does the POE-15-12W support Gigabit Ethernet?
No. The POE-15-12W does not have a Gigabit LAN port or LAN activity indicator.
How does the POE-15-12W deliver power?
It uses 2-pair powering through pins 4 and 5 for positive power and pins 7 and 8 for negative power.
What AC input does the adapter support?
The adapter accepts 100–240V AC at 50/60Hz.
Does the adapter provide surge protection?
Yes. It provides differential- and common-mode surge protection, along with 11V data and 60V power clamping protection.
